IBM Corporation IBM Flex System x440 Compute Node ssj_ops@100% = 2,712,575
ssj_ops@100% per JVM = 169,536
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,638,537
Calibration 2     2,715,625
Calibration 3     2,713,133
ssj_ops@calibrated=2,714,379
100% 99.9% 2,714,379 2,712,575
90% 89.8% 2,442,941 2,438,314
80% 80.1% 2,171,503 2,173,505
70% 69.8% 1,900,065 1,895,981
60% 59.9% 1,628,627 1,627,011
50% 50.0% 1,357,189 1,355,964
40% 40.1% 1,085,752 1,088,173
30% 30.0% 814,314 813,536
20% 20.0% 542,876 542,843
10% 10.0% 271,438 270,182
Active Idle   0 0

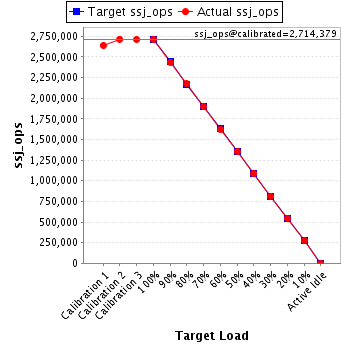

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: x440
# of Identical Nodes: 7
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM Flex System x440 Compute Node
Form Factor: Blade
CPU Name: Intel Xeon E5-4640 (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8-core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 4, 9, 13, 16, 21, 25, 28, 33, 37, 40, and 45 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200GB SATA SSD (Feature Code: A2FN)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-Port Emulex BE3 10Gb (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: CNE115M
Management Firmware Version: 1AOO31l
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
Acoustic Attenuation set to 1
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
EP4S-04.001 167,563
EP4S-04.002 169,397
EP4S-04.003 168,977
EP4S-04.004 170,658
EP4S-04.005 170,214
EP4S-04.006 170,985
EP4S-04.007 169,860
EP4S-04.008 171,111
EP4S-04.009 170,379
EP4S-04.010 169,380
EP4S-04.011 169,750
EP4S-04.012 168,625
EP4S-04.013 169,762
EP4S-04.014 168,289
EP4S-04.015 167,891
EP4S-04.016 169,733
ssj_ops@100% 2,712,575
ssj_ops@100% per JVM 169,536

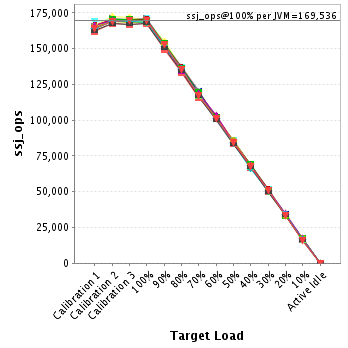

Graph of per-instance results
JVM 'EP4S-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,333
Calibration 2     167,292
Calibration 3     167,201
ssj_ops@calibrated=167,247
100% 100.2% 167,247 167,563
90% 89.2% 150,522 149,193
80% 79.9% 133,797 133,592
70% 69.2% 117,073 115,755
60% 60.7% 100,348 101,566
50% 50.3% 83,623 84,050
40% 40.0% 66,899 66,821
30% 29.9% 50,174 50,045
20% 20.2% 33,449 33,759
10% 10.3% 16,725 17,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,330
Calibration 2     169,865
Calibration 3     168,698
ssj_ops@calibrated=169,281
100% 100.1% 169,281 169,397
90% 90.4% 152,353 153,091
80% 80.1% 135,425 135,561
70% 70.0% 118,497 118,571
60% 60.3% 101,569 102,114
50% 49.8% 84,641 84,219
40% 39.9% 67,712 67,484
30% 29.5% 50,784 50,004
20% 20.2% 33,856 34,208
10% 9.8% 16,928 16,590
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,761
Calibration 2     169,562
Calibration 3     169,670
ssj_ops@calibrated=169,616
100% 99.6% 169,616 168,977
90% 89.2% 152,654 151,327
80% 80.5% 135,692 136,557
70% 69.0% 118,731 117,066
60% 59.6% 101,769 101,127
50% 50.3% 84,808 85,240
40% 39.9% 67,846 67,595
30% 30.1% 50,885 50,998
20% 20.0% 33,923 33,902
10% 9.7% 16,962 16,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,265
Calibration 2     172,629
Calibration 3     172,055
ssj_ops@calibrated=172,342
100% 99.0% 172,342 170,658
90% 90.1% 155,108 155,232
80% 79.4% 137,874 136,764
70% 69.3% 120,639 119,506
60% 59.7% 103,405 102,931
50% 49.7% 86,171 85,739
40% 40.1% 68,937 69,041
30% 30.1% 51,703 51,919
20% 20.0% 34,468 34,512
10% 10.2% 17,234 17,507
Active Idle   0 0

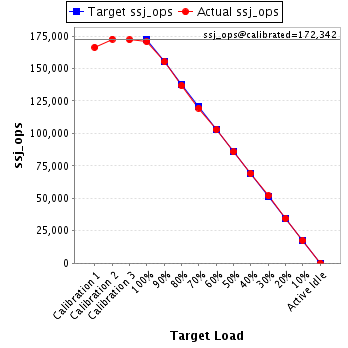

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,061
Calibration 2     170,699
Calibration 3     170,050
ssj_ops@calibrated=170,375
100% 99.9% 170,375 170,214
90% 89.7% 153,337 152,813
80% 79.9% 136,300 136,126
70% 70.4% 119,262 119,893
60% 59.8% 102,225 101,915
50% 49.8% 85,187 84,868
40% 39.7% 68,150 67,694
30% 29.8% 51,112 50,742
20% 20.0% 34,075 33,998
10% 10.0% 17,037 17,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,681
Calibration 2     170,658
Calibration 3     169,980
ssj_ops@calibrated=170,319
100% 100.4% 170,319 170,985
90% 90.4% 153,287 153,971
80% 80.3% 136,255 136,805
70% 69.8% 119,223 118,818
60% 59.6% 102,191 101,509
50% 50.2% 85,160 85,511
40% 40.0% 68,128 68,054
30% 30.3% 51,096 51,547
20% 19.9% 34,064 33,839
10% 9.9% 17,032 16,811
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,823
Calibration 2     170,087
Calibration 3     170,350
ssj_ops@calibrated=170,219
100% 99.8% 170,219 169,860
90% 89.5% 153,197 152,330
80% 80.3% 136,175 136,604
70% 69.6% 119,153 118,536
60% 59.5% 102,131 101,306
50% 50.3% 85,109 85,597
40% 39.8% 68,087 67,773
30% 30.5% 51,066 51,911
20% 19.8% 34,044 33,719
10% 9.8% 17,022 16,722
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,735
Calibration 2     171,143
Calibration 3     170,620
ssj_ops@calibrated=170,882
100% 100.1% 170,882 171,111
90% 89.3% 153,794 152,662
80% 80.7% 136,705 137,826
70% 70.6% 119,617 120,610
60% 59.4% 102,529 101,454
50% 50.3% 85,441 85,987
40% 40.4% 68,353 69,104
30% 29.8% 51,265 50,882
20% 19.9% 34,176 33,972
10% 9.9% 17,088 16,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,528
Calibration 2     170,626
Calibration 3     170,710
ssj_ops@calibrated=170,668
100% 99.8% 170,668 170,379
90% 89.7% 153,602 153,079
80% 80.2% 136,535 136,844
70% 69.9% 119,468 119,332
60% 60.1% 102,401 102,643
50% 49.8% 85,334 85,077
40% 40.5% 68,267 69,158
30% 30.0% 51,201 51,221
20% 19.7% 34,134 33,578
10% 10.2% 17,067 17,411
Active Idle   0 0

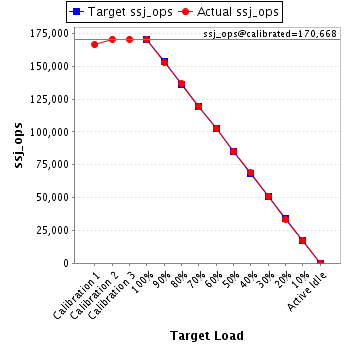

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,209
Calibration 2     169,512
Calibration 3     169,662
ssj_ops@calibrated=169,587
100% 99.9% 169,587 169,380
90% 89.3% 152,628 151,455
80% 80.1% 135,670 135,778
70% 70.7% 118,711 119,953
60% 59.8% 101,752 101,463
50% 49.7% 84,793 84,305
40% 40.4% 67,835 68,519
30% 29.9% 50,876 50,682
20% 20.1% 33,917 34,003
10% 10.0% 16,959 16,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,000
Calibration 2     170,128
Calibration 3     170,404
ssj_ops@calibrated=170,266
100% 99.7% 170,266 169,750
90% 90.4% 153,239 153,894
80% 79.9% 136,213 135,996
70% 70.3% 119,186 119,696
60% 59.8% 102,160 101,859
50% 49.6% 85,133 84,425
40% 40.4% 68,106 68,788
30% 30.0% 51,080 51,061
20% 19.8% 34,053 33,693
10% 10.0% 17,027 17,012
Active Idle   0 0

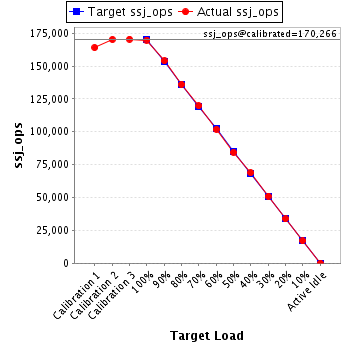

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,700
Calibration 2     168,745
Calibration 3     168,346
ssj_ops@calibrated=168,545
100% 100.0% 168,545 168,625
90% 90.6% 151,691 152,718
80% 79.9% 134,836 134,627
70% 69.7% 117,982 117,531
60% 60.1% 101,127 101,361
50% 50.7% 84,273 85,490
40% 40.4% 67,418 68,108
30% 29.8% 50,564 50,251
20% 20.0% 33,709 33,683
10% 10.1% 16,855 16,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,911
Calibration 2     169,436
Calibration 3     169,796
ssj_ops@calibrated=169,616
100% 100.1% 169,616 169,762
90% 89.7% 152,654 152,134
80% 79.4% 135,693 134,640
70% 70.1% 118,731 118,953
60% 61.1% 101,770 103,636
50% 49.8% 84,808 84,452
40% 40.1% 67,846 68,062
30% 30.1% 50,885 51,103
20% 20.4% 33,923 34,623
10% 10.2% 16,962 17,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,349
Calibration 2     168,714
Calibration 3     168,763
ssj_ops@calibrated=168,738
100% 99.7% 168,738 168,289
90% 89.7% 151,864 151,429
80% 80.5% 134,991 135,870
70% 69.6% 118,117 117,502
60% 60.0% 101,243 101,216
50% 49.6% 84,369 83,682
40% 39.4% 67,495 66,560
30% 29.8% 50,621 50,334
20% 20.3% 33,748 34,181
10% 10.0% 16,874 16,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,452
Calibration 2     167,338
Calibration 3     167,258
ssj_ops@calibrated=167,298
100% 100.4% 167,298 167,891
90% 89.8% 150,568 150,276
80% 80.3% 133,839 134,375
70% 69.8% 117,109 116,747
60% 59.8% 100,379 100,045
50% 49.7% 83,649 83,164
40% 40.4% 66,919 67,534
30% 29.7% 50,189 49,688
20% 20.0% 33,460 33,485
10% 9.7% 16,730 16,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,401
Calibration 2     169,192
Calibration 3     169,569
ssj_ops@calibrated=169,380
100% 100.2% 169,380 169,733
90% 90.2% 152,442 152,710
80% 80.0% 135,504 135,542
70% 69.4% 118,566 117,512
60% 59.6% 101,628 100,867
50% 49.7% 84,690 84,159
40% 40.1% 67,752 67,877
30% 30.2% 50,814 51,147
20% 19.9% 33,876 33,688
10% 9.6% 16,938 16,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
