IBM Corporation IBM Flex System x440 Compute Node ssj_ops@100% = 2,708,330
ssj_ops@100% per JVM = 169,271
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,646,315
Calibration 2     2,713,755
Calibration 3     2,711,572
ssj_ops@calibrated=2,712,663
100% 99.8% 2,712,663 2,708,330
90% 90.0% 2,441,397 2,440,780
80% 79.9% 2,170,131 2,166,443
70% 70.0% 1,898,864 1,898,074
60% 60.0% 1,627,598 1,628,951
50% 50.1% 1,356,332 1,358,172
40% 40.0% 1,085,065 1,085,564
30% 29.9% 813,799 811,978
20% 20.0% 542,533 541,776
10% 10.0% 271,266 270,453
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: x440
# of Identical Nodes: 7
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM Flex System x440 Compute Node
Form Factor: Blade
CPU Name: Intel Xeon E5-4640 (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8-core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 4, 9, 13, 16, 21, 25, 28, 33, 37, 40, and 45 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200GB SATA SSD (Feature Code: A2FN)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-Port Emulex BE3 10Gb (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: CNE115M
Management Firmware Version: 1AOO31l
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
Acoustic Attenuation set to 1
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
EP4S-03.001 170,266
EP4S-03.002 168,663
EP4S-03.003 168,774
EP4S-03.004 169,987
EP4S-03.005 168,946
EP4S-03.006 170,970
EP4S-03.007 168,823
EP4S-03.008 168,815
EP4S-03.009 168,446
EP4S-03.010 172,264
EP4S-03.011 169,019
EP4S-03.012 168,962
EP4S-03.013 168,675
EP4S-03.014 167,920
EP4S-03.015 169,060
EP4S-03.016 168,741
ssj_ops@100% 2,708,330
ssj_ops@100% per JVM 169,271

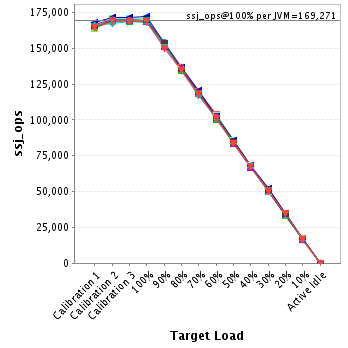

Graph of per-instance results
JVM 'EP4S-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,657
Calibration 2     170,508
Calibration 3     170,760
ssj_ops@calibrated=170,634
100% 99.8% 170,634 170,266
90% 90.0% 153,571 153,530
80% 80.2% 136,508 136,788
70% 70.2% 119,444 119,801
60% 60.8% 102,381 103,759
50% 50.4% 85,317 85,957
40% 39.8% 68,254 67,991
30% 29.8% 51,190 50,918
20% 20.1% 34,127 34,247
10% 10.0% 17,063 17,136
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,981
Calibration 2     169,908
Calibration 3     169,082
ssj_ops@calibrated=169,495
100% 99.5% 169,495 168,663
90% 90.7% 152,545 153,705
80% 79.2% 135,596 134,293
70% 69.8% 118,646 118,348
60% 60.3% 101,697 102,250
50% 50.5% 84,747 85,636
40% 40.1% 67,798 67,984
30% 29.9% 50,848 50,668
20% 20.1% 33,899 34,112
10% 10.1% 16,949 17,056
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,824
Calibration 2     168,393
Calibration 3     168,471
ssj_ops@calibrated=168,432
100% 100.2% 168,432 168,774
90% 90.1% 151,589 151,774
80% 80.2% 134,745 135,095
70% 70.6% 117,902 118,917
60% 60.4% 101,059 101,730
50% 50.6% 84,216 85,197
40% 40.2% 67,373 67,740
30% 29.9% 50,530 50,308
20% 19.6% 33,686 32,987
10% 10.0% 16,843 16,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,552
Calibration 2     169,369
Calibration 3     170,198
ssj_ops@calibrated=169,784
100% 100.1% 169,784 169,987
90% 90.0% 152,805 152,785
80% 80.4% 135,827 136,516
70% 69.9% 118,848 118,658
60% 60.0% 101,870 101,878
50% 50.5% 84,892 85,763
40% 40.1% 67,913 68,054
30% 29.6% 50,935 50,295
20% 19.7% 33,957 33,473
10% 9.8% 16,978 16,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,930
Calibration 2     168,938
Calibration 3     169,134
ssj_ops@calibrated=169,036
100% 99.9% 169,036 168,946
90% 89.9% 152,132 152,027
80% 80.1% 135,229 135,363
70% 70.3% 118,325 118,844
60% 59.5% 101,421 100,615
50% 49.9% 84,518 84,338
40% 40.4% 67,614 68,289
30% 30.3% 50,711 51,272
20% 19.6% 33,807 33,204
10% 10.3% 16,904 17,479
Active Idle   0 0

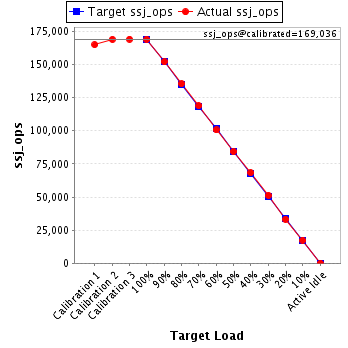

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,675
Calibration 2     170,738
Calibration 3     170,514
ssj_ops@calibrated=170,626
100% 100.2% 170,626 170,970
90% 89.9% 153,564 153,320
80% 79.0% 136,501 134,840
70% 69.1% 119,438 117,922
60% 60.3% 102,376 102,907
50% 50.1% 85,313 85,531
40% 39.8% 68,251 67,984
30% 29.7% 51,188 50,650
20% 19.6% 34,125 33,412
10% 9.9% 17,063 16,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,518
Calibration 2     169,802
Calibration 3     169,588
ssj_ops@calibrated=169,695
100% 99.5% 169,695 168,823
90% 90.1% 152,725 152,874
80% 80.1% 135,756 135,893
70% 69.8% 118,786 118,363
60% 60.2% 101,817 102,182
50% 50.1% 84,847 84,972
40% 40.3% 67,878 68,385
30% 30.3% 50,908 51,478
20% 20.4% 33,939 34,635
10% 9.6% 16,969 16,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,484
Calibration 2     169,592
Calibration 3     168,523
ssj_ops@calibrated=169,057
100% 99.9% 169,057 168,815
90% 90.6% 152,152 153,220
80% 79.7% 135,246 134,811
70% 69.9% 118,340 118,165
60% 60.2% 101,434 101,730
50% 50.2% 84,529 84,848
40% 40.0% 67,623 67,592
30% 29.7% 50,717 50,225
20% 20.0% 33,811 33,873
10% 9.9% 16,906 16,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,225
Calibration 2     169,664
Calibration 3     168,839
ssj_ops@calibrated=169,251
100% 99.5% 169,251 168,446
90% 90.3% 152,326 152,759
80% 80.1% 135,401 135,585
70% 70.1% 118,476 118,583
60% 60.3% 101,551 102,119
50% 50.0% 84,626 84,629
40% 39.9% 67,701 67,606
30% 30.4% 50,775 51,475
20% 20.4% 33,850 34,543
10% 10.1% 16,925 17,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,655
Calibration 2     171,747
Calibration 3     171,800
ssj_ops@calibrated=171,773
100% 100.3% 171,773 172,264
90% 89.4% 154,596 153,584
80% 79.5% 137,419 136,592
70% 70.3% 120,241 120,771
60% 59.8% 103,064 102,643
50% 50.0% 85,887 85,914
40% 39.7% 68,709 68,269
30% 30.3% 51,532 52,130
20% 20.0% 34,355 34,393
10% 9.9% 17,177 17,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,197
Calibration 2     169,638
Calibration 3     168,648
ssj_ops@calibrated=169,143
100% 99.9% 169,143 169,019
90% 89.8% 152,229 151,841
80% 79.4% 135,314 134,250
70% 70.1% 118,400 118,641
60% 59.4% 101,486 100,451
50% 49.8% 84,572 84,165
40% 40.1% 67,657 67,749
30% 29.9% 50,743 50,599
20% 19.9% 33,829 33,619
10% 10.1% 16,914 17,003
Active Idle   0 0

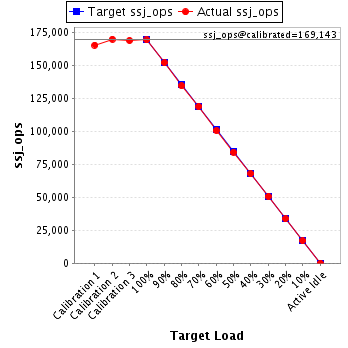

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,505
Calibration 2     169,428
Calibration 3     169,044
ssj_ops@calibrated=169,236
100% 99.8% 169,236 168,962
90% 89.9% 152,312 152,109
80% 80.4% 135,389 136,032
70% 69.9% 118,465 118,220
60% 60.0% 101,542 101,592
50% 49.9% 84,618 84,375
40% 39.9% 67,694 67,528
30% 29.9% 50,771 50,579
20% 19.9% 33,847 33,626
10% 10.1% 16,924 17,086
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,818
Calibration 2     169,873
Calibration 3     169,136
ssj_ops@calibrated=169,504
100% 99.5% 169,504 168,675
90% 89.2% 152,554 151,221
80% 80.5% 135,604 136,425
70% 70.4% 118,653 119,259
60% 59.9% 101,703 101,473
50% 49.4% 84,752 83,737
40% 39.6% 67,802 67,114
30% 29.8% 50,851 50,541
20% 20.1% 33,901 34,072
10% 9.8% 16,950 16,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

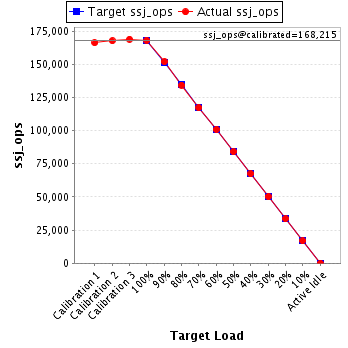

JVM 'EP4S-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,034
Calibration 2     167,564
Calibration 3     168,866
ssj_ops@calibrated=168,215
100% 99.8% 168,215 167,920
90% 90.3% 151,393 151,860
80% 79.8% 134,572 134,294
70% 69.7% 117,750 117,180
60% 60.0% 100,929 100,902
50% 49.9% 84,107 84,000
40% 40.0% 67,286 67,312
30% 29.9% 50,464 50,253
20% 19.9% 33,643 33,407
10% 10.0% 16,821 16,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,770
Calibration 2     169,633
Calibration 3     169,981
ssj_ops@calibrated=169,807
100% 99.6% 169,807 169,060
90% 90.8% 152,826 154,112
80% 79.5% 135,846 134,996
70% 70.0% 118,865 118,880
60% 60.0% 101,884 101,834
50% 50.4% 84,903 85,524
40% 40.3% 67,923 68,428
30% 29.7% 50,942 50,370
20% 19.8% 33,961 33,550
10% 10.2% 16,981 17,318
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,491
Calibration 2     168,961
Calibration 3     168,988
ssj_ops@calibrated=168,975
100% 99.9% 168,975 168,741
90% 88.8% 152,077 150,059
80% 79.7% 135,180 134,670
70% 69.6% 118,282 117,523
60% 59.7% 101,385 100,887
50% 49.5% 84,487 83,586
40% 40.0% 67,590 67,540
30% 29.7% 50,692 50,217
20% 20.5% 33,795 34,620
10% 9.7% 16,897 16,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
