Acer Incorporated Acer AW2000h-AW170h F2 ssj_ops@100% = 1,321,931
ssj_ops@100% per JVM = 165,241
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Sep 12, 2012
Hardware Availability: Sep-2012 Software Availability: Aug-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,318,040
Calibration 2     1,328,185
Calibration 3     1,325,351
ssj_ops@calibrated=1,326,768
100% 99.6% 1,326,768 1,321,931
90% 90.0% 1,194,091 1,194,496
80% 79.9% 1,061,414 1,059,455
70% 70.0% 928,738 929,141
60% 60.1% 796,061 796,957
50% 49.8% 663,384 660,749
40% 40.1% 530,707 531,540
30% 30.0% 398,030 397,696
20% 20.0% 265,354 265,587
10% 9.9% 132,677 131,812
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-AW170h F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R; slots A1, B1, C1, D1, E1, F1, G1 and H1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 64GB SATA SSD, Acer P/N KN.06404.002
Disk Controller: onboard SAS/SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_35
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000, 0F000000, F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 01.03.0002
Management Firmware Version: 01.10.3656
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BGBI0MA7JFV.001 165,345
WIN-BGBI0MA7JFV.002 166,346
WIN-BGBI0MA7JFV.003 163,374
WIN-BGBI0MA7JFV.004 164,588
WIN-BGBI0MA7JFV.005 166,374
WIN-BGBI0MA7JFV.006 164,826
WIN-BGBI0MA7JFV.007 164,958
WIN-BGBI0MA7JFV.008 166,120
ssj_ops@100% 1,321,931
ssj_ops@100% per JVM 165,241

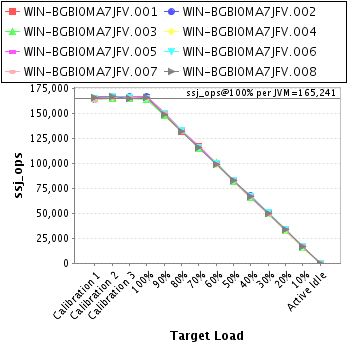

Graph of per-instance results
JVM 'WIN-BGBI0MA7JFV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,741
Calibration 2     165,634
Calibration 3     165,074
ssj_ops@calibrated=165,354
100% 100.0% 165,354 165,345
90% 89.6% 148,819 148,099
80% 79.7% 132,283 131,783
70% 70.8% 115,748 117,077
60% 60.2% 99,213 99,529
50% 50.1% 82,677 82,843
40% 40.0% 66,142 66,146
30% 30.1% 49,606 49,791
20% 20.1% 33,071 33,219
10% 10.2% 16,535 16,803
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,900
Calibration 2     166,635
Calibration 3     166,452
ssj_ops@calibrated=166,544
100% 99.9% 166,544 166,346
90% 89.7% 149,889 149,394
80% 79.7% 133,235 132,780
70% 69.8% 116,581 116,241
60% 60.1% 99,926 100,013
50% 49.4% 83,272 82,234
40% 40.5% 66,618 67,388
30% 29.7% 49,963 49,468
20% 19.7% 33,309 32,829
10% 9.8% 16,654 16,268
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,176
Calibration 2     164,678
Calibration 3     164,662
ssj_ops@calibrated=164,670
100% 99.2% 164,670 163,374
90% 90.0% 148,203 148,250
80% 80.5% 131,736 132,521
70% 69.8% 115,269 114,986
60% 60.9% 98,802 100,302
50% 49.5% 82,335 81,584
40% 40.1% 65,868 66,080
30% 30.1% 49,401 49,538
20% 19.8% 32,934 32,537
10% 9.8% 16,467 16,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,603
Calibration 2     166,075
Calibration 3     165,396
ssj_ops@calibrated=165,735
100% 99.3% 165,735 164,588
90% 90.3% 149,162 149,640
80% 80.2% 132,588 132,938
70% 69.8% 116,015 115,623
60% 59.7% 99,441 98,986
50% 50.0% 82,868 82,858
40% 40.0% 66,294 66,289
30% 30.0% 49,721 49,669
20% 20.0% 33,147 33,085
10% 9.8% 16,574 16,213
Active Idle   0 0

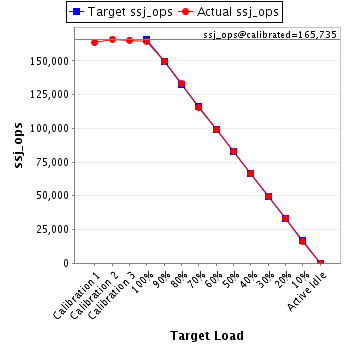

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,725
Calibration 2     167,064
Calibration 3     167,093
ssj_ops@calibrated=167,078
100% 99.6% 167,078 166,374
90% 90.4% 150,370 151,048
80% 79.6% 133,663 133,025
70% 70.2% 116,955 117,289
60% 59.8% 100,247 99,871
50% 49.6% 83,539 82,910
40% 39.4% 66,831 65,872
30% 29.8% 50,123 49,742
20% 20.0% 33,416 33,429
10% 10.0% 16,708 16,655
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,861
Calibration 2     166,523
Calibration 3     166,018
ssj_ops@calibrated=166,270
100% 99.1% 166,270 164,826
90% 89.8% 149,643 149,366
80% 79.7% 133,016 132,588
70% 69.8% 116,389 116,057
60% 60.0% 99,762 99,818
50% 50.0% 83,135 83,171
40% 40.2% 66,508 66,859
30% 30.3% 49,881 50,408
20% 20.2% 33,254 33,638
10% 9.8% 16,627 16,345
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,551
Calibration 2     165,200
Calibration 3     165,602
ssj_ops@calibrated=165,401
100% 99.7% 165,401 164,958
90% 90.6% 148,861 149,832
80% 79.7% 132,321 131,751
70% 70.2% 115,781 116,063
60% 60.0% 99,241 99,213
50% 49.5% 82,700 81,881
40% 39.9% 66,160 65,947
30% 29.7% 49,620 49,153
20% 20.1% 33,080 33,198
10% 10.2% 16,540 16,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BGBI0MA7JFV.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,482
Calibration 2     166,376
Calibration 3     165,055
ssj_ops@calibrated=165,715
100% 100.2% 165,715 166,120
90% 89.8% 149,144 148,867
80% 79.7% 132,572 132,067
70% 69.9% 116,001 115,805
60% 59.9% 99,429 99,224
50% 50.2% 82,858 83,270
40% 40.4% 66,286 66,959
30% 30.1% 49,715 49,926
20% 20.3% 33,143 33,653
10% 10.0% 16,572 16,572
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
