Fujitsu PRIMERGY TX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,372 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 17, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 243 20.3
Calibration 2 245 20.4
Calibration 3 246 20.4
100% 246 20.4
90% 216 20.4
80% 184 20.4
70% 155 20.4
60% 133 20.4
50% 118 20.4
40% 107 20.4
30% 96.4 20.4
20% 86.5 20.4
10% 76.3 20.4
Active Idle 55.1 20.3

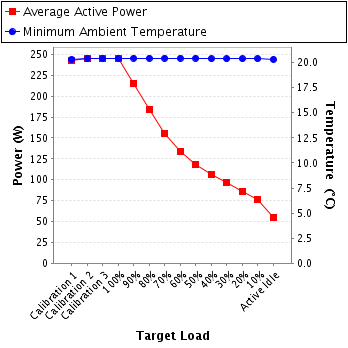

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.07 2.5 0.989 243 0.1%
Calibration 2 230 250.0 1.08 2.5 0.989 245 0.1%
Calibration 3 231 250.0 1.08 2.5 0.989 246 0.1%
100% 230 250.0 1.08 2.5 0.989 246 0.1%
90% 231 250.0 0.956 2.5 0.985 216 0.2%
80% 231 250.0 0.817 2.5 0.980 184 0.2%
70% 231 250.0 0.688 2.5 0.980 155 0.2%
60% 231 250.0 0.591 2.5 0.978 133 0.2%
50% 231 250.0 0.524 2.5 0.976 118 0.3%
40% 230 250.0 0.475 2.5 0.974 107 0.3%
30% 230 250.0 0.432 2.5 0.969 96.4 0.3%
20% 231 250.0 0.389 2.5 0.963 86.5 0.4%
10% 231 250.0 0.346 0.6 0.956 76.3 0.1%
Active Idle 231 250.0 0.258 0.6 0.925 55.1 0.2%
Power details for pwr1
