Fujitsu PRIMERGY RX200 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,058 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 12, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 252 22.2
Calibration 2 257 22.2
Calibration 3 258 22.1
100% 258 22.1
90% 227 22.1
80% 194 22.1
70% 162 22.0
60% 141 22.0
50% 126 21.9
40% 114 21.9
30% 104 21.9
20% 95.5 21.8
10% 86.0 21.8
Active Idle 59.8 21.6

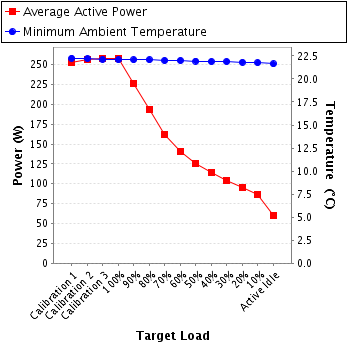

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 250.0 1.11 2.5 0.990 252 0.1%
Calibration 2 229 250.0 1.13 2.5 0.990 257 0.1%
Calibration 3 229 250.0 1.14 2.5 0.990 258 0.1%
100% 228 250.0 1.14 2.5 0.990 258 0.1%
90% 228 250.0 1.01 2.5 0.986 227 0.1%
80% 228 250.0 0.871 2.5 0.983 194 0.2%
70% 228 250.0 0.727 2.5 0.983 162 0.2%
60% 228 250.0 0.633 2.5 0.981 141 0.2%
50% 231 250.0 0.556 2.5 0.977 126 0.3%
40% 231 250.0 0.507 2.5 0.975 114 0.3%
30% 231 250.0 0.465 2.5 0.972 104 0.3%
20% 231 250.0 0.427 2.5 0.968 95.5 0.3%
10% 232 250.0 0.386 0.6 0.961 86.0 0.1%
Active Idle 231 250.0 0.277 0.6 0.933 59.8 0.1%
Power details for pwr1
