Dell Inc. PowerEdge M820 ssj_ops@100% = 2,741,214
ssj_ops@100% per JVM = 171,326
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,673,107
Calibration 2     2,746,926
Calibration 3     2,744,798
ssj_ops@calibrated=2,745,862
100% 99.8% 2,745,862 2,741,214
90% 90.1% 2,471,276 2,472,878
80% 80.0% 2,196,690 2,195,390
70% 69.9% 1,922,104 1,920,310
60% 60.0% 1,647,517 1,646,840
50% 49.9% 1,372,931 1,371,237
40% 39.9% 1,098,345 1,096,143
30% 30.0% 823,759 824,359
20% 20.0% 549,172 550,289
10% 10.0% 274,586 275,713
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-08.001 169,564
    M820-08.002 168,896
    M820-08.003 169,937
    M820-08.004 170,907
    M820-08.005 171,196
    M820-08.006 168,907
    M820-08.007 170,008
    M820-08.008 172,059
    M820-08.009 171,711
    M820-08.010 172,637
    M820-08.011 171,718
    M820-08.012 171,820
    M820-08.013 172,427
    M820-08.014 172,801
    M820-08.015 173,355
    M820-08.016 173,272
    ssj_ops@100% 2,741,214
    ssj_ops@100% per JVM 171,326

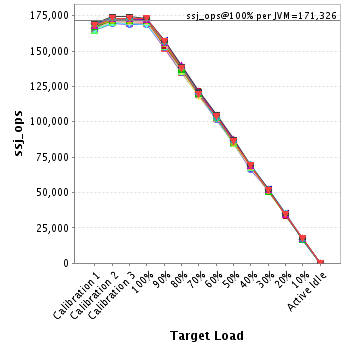

    Graph of per-instance results
    JVM 'M820-08.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,541
    Calibration 2     170,560
    Calibration 3     169,410
    ssj_ops@calibrated=169,985
    100% 99.8% 169,985 169,564
    90% 89.2% 152,987 151,650
    80% 79.2% 135,988 134,617
    70% 70.1% 118,990 119,121
    60% 60.0% 101,991 102,065
    50% 50.0% 84,993 84,908
    40% 40.0% 67,994 68,075
    30% 29.9% 50,996 50,884
    20% 20.1% 33,997 34,244
    10% 10.1% 16,999 17,110
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,429
    Calibration 2     169,365
    Calibration 3     168,903
    ssj_ops@calibrated=169,134
    100% 99.9% 169,134 168,896
    90% 90.1% 152,221 152,382
    80% 79.9% 135,307 135,168
    70% 70.0% 118,394 118,394
    60% 60.0% 101,480 101,476
    50% 49.9% 84,567 84,461
    40% 39.3% 67,654 66,508
    30% 30.4% 50,740 51,477
    20% 20.6% 33,827 34,779
    10% 9.9% 16,913 16,721
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,848
    Calibration 2     170,299
    Calibration 3     170,645
    ssj_ops@calibrated=170,472
    100% 99.7% 170,472 169,937
    90% 89.9% 153,425 153,220
    80% 79.6% 136,377 135,732
    70% 69.8% 119,330 119,003
    60% 60.1% 102,283 102,522
    50% 49.6% 85,236 84,513
    40% 39.7% 68,189 67,675
    30% 29.8% 51,142 50,857
    20% 20.1% 34,094 34,290
    10% 10.0% 17,047 17,062
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,894
    Calibration 2     170,713
    Calibration 3     170,160
    ssj_ops@calibrated=170,437
    100% 100.3% 170,437 170,907
    90% 90.2% 153,393 153,809
    80% 79.6% 136,349 135,718
    70% 69.1% 119,306 117,733
    60% 60.6% 102,262 103,212
    50% 49.6% 85,218 84,467
    40% 40.0% 68,175 68,191
    30% 29.7% 51,131 50,625
    20% 19.9% 34,087 33,876
    10% 10.3% 17,044 17,577
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,429
    Calibration 2     170,712
    Calibration 3     171,639
    ssj_ops@calibrated=171,175
    100% 100.0% 171,175 171,196
    90% 89.2% 154,058 152,649
    80% 79.9% 136,940 136,852
    70% 70.2% 119,823 120,214
    60% 59.3% 102,705 101,554
    50% 50.5% 85,588 86,403
    40% 39.7% 68,470 67,992
    30% 29.7% 51,353 50,799
    20% 20.2% 34,235 34,541
    10% 10.0% 17,118 17,171
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,192
    Calibration 2     169,932
    Calibration 3     169,611
    ssj_ops@calibrated=169,771
    100% 99.5% 169,771 168,907
    90% 90.2% 152,794 153,099
    80% 80.5% 135,817 136,644
    70% 70.1% 118,840 118,953
    60% 60.2% 101,863 102,120
    50% 50.3% 84,886 85,321
    40% 40.2% 67,909 68,278
    30% 30.7% 50,931 52,151
    20% 19.9% 33,954 33,742
    10% 10.1% 16,977 17,139
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,016
    Calibration 2     171,071
    Calibration 3     170,180
    ssj_ops@calibrated=170,626
    100% 99.6% 170,626 170,008
    90% 89.7% 153,563 153,063
    80% 79.8% 136,501 136,090
    70% 70.4% 119,438 120,203
    60% 60.3% 102,376 102,817
    50% 50.1% 85,313 85,459
    40% 39.4% 68,250 67,258
    30% 30.5% 51,188 51,964
    20% 19.8% 34,125 33,867
    10% 10.1% 17,063 17,262
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,740
    Calibration 2     172,212
    Calibration 3     172,027
    ssj_ops@calibrated=172,120
    100% 100.0% 172,120 172,059
    90% 89.6% 154,908 154,238
    80% 79.8% 137,696 137,412
    70% 69.5% 120,484 119,654
    60% 60.0% 103,272 103,347
    50% 49.5% 86,060 85,205
    40% 40.2% 68,848 69,168
    30% 29.8% 51,636 51,245
    20% 20.1% 34,424 34,530
    10% 10.1% 17,212 17,394
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,165
    Calibration 2     171,744
    Calibration 3     171,868
    ssj_ops@calibrated=171,806
    100% 99.9% 171,806 171,711
    90% 89.7% 154,626 154,102
    80% 80.3% 137,445 137,972
    70% 70.8% 120,264 121,698
    60% 59.9% 103,084 102,867
    50% 50.0% 85,903 85,963
    40% 40.2% 68,723 69,000
    30% 30.2% 51,542 51,825
    20% 19.8% 34,361 33,987
    10% 10.2% 17,181 17,536
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     169,148
    Calibration 2     172,874
    Calibration 3     173,158
    ssj_ops@calibrated=173,016
    100% 99.8% 173,016 172,637
    90% 90.9% 155,715 157,209
    80% 79.8% 138,413 138,046
    70% 69.7% 121,111 120,608
    60% 60.2% 103,810 104,189
    50% 50.2% 86,508 86,838
    40% 39.8% 69,207 68,849
    30% 30.2% 51,905 52,322
    20% 20.2% 34,603 34,933
    10% 9.6% 17,302 16,631
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,102
    Calibration 2     171,899
    Calibration 3     171,836
    ssj_ops@calibrated=171,867
    100% 99.9% 171,867 171,718
    90% 90.8% 154,681 156,064
    80% 79.9% 137,494 137,273
    70% 70.0% 120,307 120,233
    60% 59.8% 103,120 102,703
    50% 49.9% 85,934 85,793
    40% 40.3% 68,747 69,238
    30% 29.6% 51,560 50,804
    20% 20.1% 34,373 34,585
    10% 10.0% 17,187 17,146
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,118
    Calibration 2     171,869
    Calibration 3     171,596
    ssj_ops@calibrated=171,733
    100% 100.1% 171,733 171,820
    90% 90.3% 154,559 155,003
    80% 80.6% 137,386 138,420
    70% 70.4% 120,213 120,980
    60% 59.5% 103,040 102,177
    50% 49.6% 85,866 85,172
    40% 39.7% 68,693 68,209
    30% 29.8% 51,520 51,127
    20% 19.9% 34,347 34,145
    10% 10.1% 17,173 17,287
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,829
    Calibration 2     172,935
    Calibration 3     172,970
    ssj_ops@calibrated=172,953
    100% 99.7% 172,953 172,427
    90% 90.1% 155,657 155,809
    80% 80.6% 138,362 139,471
    70% 70.3% 121,067 121,614
    60% 60.3% 103,772 104,218
    50% 50.4% 86,476 87,169
    40% 40.2% 69,181 69,451
    30% 30.1% 51,886 52,062
    20% 19.9% 34,591 34,332
    10% 10.0% 17,295 17,329
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,599
    Calibration 2     172,925
    Calibration 3     173,359
    ssj_ops@calibrated=173,142
    100% 99.8% 173,142 172,801
    90% 90.3% 155,828 156,367
    80% 79.9% 138,514 138,379
    70% 69.5% 121,199 120,363
    60% 59.2% 103,885 102,542
    50% 49.6% 86,571 85,925
    40% 40.4% 69,257 69,926
    30% 30.3% 51,943 52,427
    20% 20.2% 34,628 35,053
    10% 9.9% 17,314 17,079
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     169,719
    Calibration 2     174,552
    Calibration 3     174,462
    ssj_ops@calibrated=174,507
    100% 99.3% 174,507 173,355
    90% 90.1% 157,056 157,194
    80% 80.0% 139,606 139,604
    70% 69.9% 122,155 121,945
    60% 60.3% 104,704 105,273
    50% 50.3% 87,254 87,850
    40% 39.7% 69,803 69,317
    30% 29.9% 52,352 52,109
    20% 19.8% 34,901 34,617
    10% 10.1% 17,451 17,687
    Active Idle   0 0
    Graph of results
    JVM 'M820-08.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,339
    Calibration 2     173,262
    Calibration 3     172,974
    ssj_ops@calibrated=173,118
    100% 100.1% 173,118 173,272
    90% 90.7% 155,806 157,019
    80% 79.7% 138,494 137,992
    70% 69.1% 121,183 119,594
    60% 59.9% 103,871 103,758
    50% 49.6% 86,559 85,791
    40% 39.9% 69,247 69,007
    30% 29.9% 51,935 51,683
    20% 20.1% 34,624 34,769
    10% 10.2% 17,312 17,583
    Active Idle   0 0
    Graph of results
