Dell Inc. PowerEdge M820 ssj_ops@100% = 2,727,003
ssj_ops@100% per JVM = 170,438
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,658,686
Calibration 2     2,734,423
Calibration 3     2,732,381
ssj_ops@calibrated=2,733,402
100% 99.8% 2,733,402 2,727,003
90% 89.8% 2,460,062 2,455,164
80% 80.2% 2,186,722 2,192,937
70% 69.9% 1,913,381 1,909,800
60% 60.0% 1,640,041 1,640,868
50% 50.0% 1,366,701 1,367,467
40% 39.9% 1,093,361 1,091,327
30% 30.1% 820,021 822,079
20% 19.9% 546,680 545,296
10% 10.0% 273,340 274,537
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-07.001 169,985
    M820-07.002 169,506
    M820-07.003 170,482
    M820-07.004 169,542
    M820-07.005 169,043
    M820-07.006 170,225
    M820-07.007 171,340
    M820-07.008 170,374
    M820-07.009 171,539
    M820-07.010 168,432
    M820-07.011 167,824
    M820-07.012 169,158
    M820-07.013 171,642
    M820-07.014 171,972
    M820-07.015 172,788
    M820-07.016 173,153
    ssj_ops@100% 2,727,003
    ssj_ops@100% per JVM 170,438

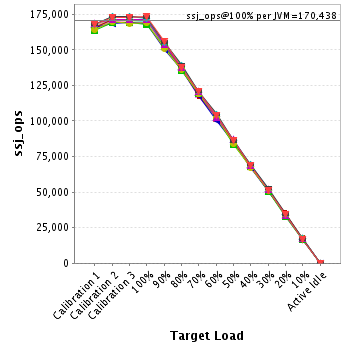

    Graph of per-instance results
    JVM 'M820-07.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,799
    Calibration 2     170,828
    Calibration 3     170,648
    ssj_ops@calibrated=170,738
    100% 99.6% 170,738 169,985
    90% 90.3% 153,664 154,131
    80% 80.5% 136,591 137,495
    70% 70.0% 119,517 119,562
    60% 59.7% 102,443 101,863
    50% 50.2% 85,369 85,677
    40% 40.0% 68,295 68,278
    30% 29.9% 51,221 51,117
    20% 19.8% 34,148 33,847
    10% 9.9% 17,074 16,973
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,410
    Calibration 2     170,907
    Calibration 3     171,047
    ssj_ops@calibrated=170,977
    100% 99.1% 170,977 169,506
    90% 90.2% 153,879 154,157
    80% 80.1% 136,782 136,936
    70% 69.6% 119,684 118,948
    60% 60.2% 102,586 102,857
    50% 50.1% 85,489 85,647
    40% 39.6% 68,391 67,775
    30% 30.0% 51,293 51,376
    20% 20.2% 34,195 34,560
    10% 10.1% 17,098 17,210
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,877
    Calibration 2     171,305
    Calibration 3     170,610
    ssj_ops@calibrated=170,958
    100% 99.7% 170,958 170,482
    90% 89.2% 153,862 152,569
    80% 80.5% 136,766 137,697
    70% 70.2% 119,670 119,989
    60% 59.9% 102,575 102,375
    50% 49.9% 85,479 85,374
    40% 40.4% 68,383 69,007
    30% 29.6% 51,287 50,571
    20% 20.1% 34,192 34,414
    10% 10.1% 17,096 17,311
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,964
    Calibration 2     170,405
    Calibration 3     169,925
    ssj_ops@calibrated=170,165
    100% 99.6% 170,165 169,542
    90% 89.8% 153,148 152,866
    80% 80.5% 136,132 136,910
    70% 69.3% 119,115 117,935
    60% 59.9% 102,099 101,892
    50% 50.3% 85,082 85,647
    40% 39.5% 68,066 67,247
    30% 30.4% 51,049 51,665
    20% 20.2% 34,033 34,366
    10% 9.8% 17,016 16,656
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,692
    Calibration 2     169,649
    Calibration 3     169,215
    ssj_ops@calibrated=169,432
    100% 99.8% 169,432 169,043
    90% 89.8% 152,489 152,074
    80% 80.5% 135,546 136,414
    70% 69.2% 118,603 117,295
    60% 60.0% 101,659 101,694
    50% 50.2% 84,716 85,053
    40% 39.7% 67,773 67,315
    30% 30.0% 50,830 50,822
    20% 19.8% 33,886 33,611
    10% 10.1% 16,943 17,175
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,078
    Calibration 2     170,299
    Calibration 3     170,542
    ssj_ops@calibrated=170,420
    100% 99.9% 170,420 170,225
    90% 90.4% 153,378 154,040
    80% 79.9% 136,336 136,221
    70% 70.4% 119,294 120,021
    60% 60.0% 102,252 102,206
    50% 49.9% 85,210 85,070
    40% 39.8% 68,168 67,883
    30% 30.5% 51,126 51,924
    20% 19.8% 34,084 33,755
    10% 9.9% 17,042 16,807
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,287
    Calibration 2     170,812
    Calibration 3     171,246
    ssj_ops@calibrated=171,029
    100% 100.2% 171,029 171,340
    90% 90.0% 153,926 153,921
    80% 79.9% 136,823 136,691
    70% 69.6% 119,720 119,017
    60% 59.4% 102,618 101,674
    50% 49.4% 85,515 84,537
    40% 40.0% 68,412 68,490
    30% 30.2% 51,309 51,720
    20% 19.8% 34,206 33,877
    10% 10.4% 17,103 17,789
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,741
    Calibration 2     171,143
    Calibration 3     171,019
    ssj_ops@calibrated=171,081
    100% 99.6% 171,081 170,374
    90% 89.6% 153,973 153,365
    80% 79.6% 136,865 136,233
    70% 70.1% 119,757 119,904
    60% 60.2% 102,649 102,996
    50% 50.6% 85,541 86,615
    40% 39.9% 68,432 68,293
    30% 30.0% 51,324 51,317
    20% 19.7% 34,216 33,641
    10% 10.1% 17,108 17,349
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,720
    Calibration 2     171,276
    Calibration 3     170,594
    ssj_ops@calibrated=170,935
    100% 100.4% 170,935 171,539
    90% 90.3% 153,841 154,382
    80% 80.3% 136,748 137,221
    70% 69.1% 119,654 118,144
    60% 59.8% 102,561 102,207
    50% 49.9% 85,467 85,269
    40% 40.0% 68,374 68,424
    30% 29.8% 51,280 50,968
    20% 20.4% 34,187 34,875
    10% 10.2% 17,093 17,426
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,938
    Calibration 2     168,535
    Calibration 3     168,942
    ssj_ops@calibrated=168,739
    100% 99.8% 168,739 168,432
    90% 89.2% 151,865 150,544
    80% 80.6% 134,991 135,922
    70% 69.8% 118,117 117,720
    60% 59.6% 101,243 100,497
    50% 50.4% 84,369 85,101
    40% 39.8% 67,495 67,157
    30% 30.1% 50,622 50,760
    20% 20.1% 33,748 33,990
    10% 10.0% 16,874 16,898
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,395
    Calibration 2     168,883
    Calibration 3     168,900
    ssj_ops@calibrated=168,891
    100% 99.4% 168,891 167,824
    90% 90.1% 152,002 152,203
    80% 80.1% 135,113 135,296
    70% 70.6% 118,224 119,230
    60% 60.6% 101,335 102,345
    50% 49.4% 84,446 83,393
    40% 40.2% 67,557 67,877
    30% 30.0% 50,667 50,718
    20% 19.7% 33,778 33,194
    10% 10.0% 16,889 16,866
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,302
    Calibration 2     169,665
    Calibration 3     168,843
    ssj_ops@calibrated=169,254
    100% 99.9% 169,254 169,158
    90% 89.3% 152,328 151,201
    80% 80.6% 135,403 136,390
    70% 70.3% 118,478 119,014
    60% 60.6% 101,552 102,648
    50% 49.7% 84,627 84,054
    40% 39.7% 67,702 67,183
    30% 30.4% 50,776 51,394
    20% 19.9% 33,851 33,717
    10% 10.2% 16,925 17,289
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,712
    Calibration 2     171,289
    Calibration 3     171,306
    ssj_ops@calibrated=171,297
    100% 100.2% 171,297 171,642
    90% 89.6% 154,168 153,468
    80% 80.3% 137,038 137,619
    70% 70.4% 119,908 120,656
    60% 59.7% 102,778 102,231
    50% 50.6% 85,649 86,747
    40% 40.3% 68,519 69,006
    30% 30.2% 51,389 51,806
    20% 19.8% 34,259 33,843
    10% 10.0% 17,130 17,196
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,015
    Calibration 2     173,370
    Calibration 3     173,528
    ssj_ops@calibrated=173,449
    100% 99.1% 173,449 171,972
    90% 89.3% 156,104 154,936
    80% 80.2% 138,759 139,081
    70% 69.5% 121,414 120,631
    60% 60.4% 104,069 104,846
    50% 49.9% 86,724 86,508
    40% 39.9% 69,380 69,120
    30% 30.1% 52,035 52,139
    20% 19.8% 34,690 34,331
    10% 10.1% 17,345 17,447
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,046
    Calibration 2     173,523
    Calibration 3     173,501
    ssj_ops@calibrated=173,512
    100% 99.6% 173,512 172,788
    90% 89.6% 156,161 155,455
    80% 80.3% 138,810 139,406
    70% 69.7% 121,459 120,863
    60% 60.5% 104,107 104,989
    50% 49.7% 86,756 86,202
    40% 40.1% 69,405 69,508
    30% 30.4% 52,054 52,771
    20% 20.1% 34,702 34,866
    10% 9.9% 17,351 17,159
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-07.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,710
    Calibration 2     172,533
    Calibration 3     172,515
    ssj_ops@calibrated=172,524
    100% 100.4% 172,524 173,153
    90% 90.3% 155,271 155,852
    80% 79.6% 138,019 137,404
    70% 70.1% 120,767 120,871
    60% 60.0% 103,514 103,547
    50% 50.2% 86,262 86,573
    40% 39.9% 69,010 68,766
    30% 29.6% 51,757 51,011
    20% 19.9% 34,505 34,409
    10% 9.8% 17,252 16,985
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
