Dell Inc. PowerEdge M820 ssj_ops@100% = 2,735,141
ssj_ops@100% per JVM = 170,946
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,664,029
Calibration 2     2,741,556
Calibration 3     2,741,959
ssj_ops@calibrated=2,741,757
100% 99.8% 2,741,757 2,735,141
90% 89.8% 2,467,582 2,463,140
80% 80.1% 2,193,406 2,196,369
70% 70.0% 1,919,230 1,920,570
60% 59.9% 1,645,054 1,641,748
50% 49.9% 1,370,879 1,367,856
40% 40.0% 1,096,703 1,097,901
30% 30.1% 822,527 825,773
20% 20.1% 548,351 549,758
10% 10.0% 274,176 273,612
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-06.001 171,122
    M820-06.002 171,496
    M820-06.003 169,583
    M820-06.004 171,043
    M820-06.005 170,913
    M820-06.006 171,469
    M820-06.007 171,154
    M820-06.008 170,572
    M820-06.009 174,185
    M820-06.010 170,409
    M820-06.011 168,429
    M820-06.012 172,028
    M820-06.013 171,100
    M820-06.014 169,344
    M820-06.015 170,797
    M820-06.016 171,497
    ssj_ops@100% 2,735,141
    ssj_ops@100% per JVM 170,946

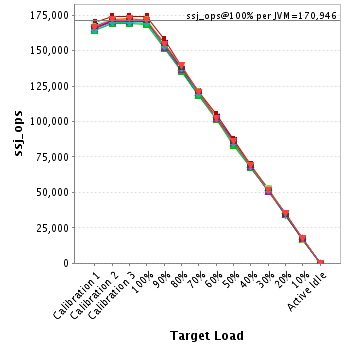

    Graph of per-instance results
    JVM 'M820-06.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,605
    Calibration 2     171,566
    Calibration 3     171,417
    ssj_ops@calibrated=171,492
    100% 99.8% 171,492 171,122
    90% 89.5% 154,342 153,457
    80% 79.3% 137,193 136,008
    70% 70.1% 120,044 120,221
    60% 59.7% 102,895 102,397
    50% 49.9% 85,746 85,642
    40% 40.3% 68,597 69,078
    30% 30.5% 51,447 52,266
    20% 20.0% 34,298 34,382
    10% 10.2% 17,149 17,415
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,218
    Calibration 2     171,692
    Calibration 3     171,432
    ssj_ops@calibrated=171,562
    100% 100.0% 171,562 171,496
    90% 89.4% 154,406 153,422
    80% 79.7% 137,249 136,790
    70% 70.2% 120,093 120,421
    60% 59.5% 102,937 102,140
    50% 50.3% 85,781 86,227
    40% 40.2% 68,625 69,040
    30% 30.3% 51,469 51,982
    20% 20.2% 34,312 34,698
    10% 9.9% 17,156 17,062
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,096
    Calibration 2     170,984
    Calibration 3     170,617
    ssj_ops@calibrated=170,801
    100% 99.3% 170,801 169,583
    90% 89.9% 153,720 153,579
    80% 80.9% 136,640 138,166
    70% 69.7% 119,560 118,978
    60% 59.8% 102,480 102,160
    50% 49.3% 85,400 84,151
    40% 40.1% 68,320 68,488
    30% 30.4% 51,240 51,883
    20% 20.1% 34,160 34,363
    10% 10.0% 17,080 17,129
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,718
    Calibration 2     172,003
    Calibration 3     172,468
    ssj_ops@calibrated=172,235
    100% 99.3% 172,235 171,043
    90% 90.1% 155,012 155,143
    80% 80.4% 137,788 138,402
    70% 70.3% 120,565 121,126
    60% 60.3% 103,341 103,888
    50% 50.2% 86,118 86,465
    40% 40.6% 68,894 70,011
    30% 29.8% 51,671 51,394
    20% 19.6% 34,447 33,767
    10% 10.0% 17,224 17,146
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,861
    Calibration 2     170,832
    Calibration 3     170,700
    ssj_ops@calibrated=170,766
    100% 100.1% 170,766 170,913
    90% 89.8% 153,689 153,427
    80% 79.6% 136,613 136,012
    70% 70.7% 119,536 120,718
    60% 60.4% 102,459 103,111
    50% 49.6% 85,383 84,616
    40% 40.2% 68,306 68,563
    30% 29.7% 51,230 50,741
    20% 19.8% 34,153 33,733
    10% 10.1% 17,077 17,254
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,554
    Calibration 2     172,160
    Calibration 3     171,529
    ssj_ops@calibrated=171,845
    100% 99.8% 171,845 171,469
    90% 90.4% 154,660 155,341
    80% 79.6% 137,476 136,801
    70% 69.2% 120,291 118,924
    60% 60.2% 103,107 103,492
    50% 49.8% 85,922 85,555
    40% 39.7% 68,738 68,228
    30% 30.8% 51,553 52,947
    20% 19.7% 34,369 33,898
    10% 9.8% 17,184 16,861
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,729
    Calibration 2     171,623
    Calibration 3     171,821
    ssj_ops@calibrated=171,722
    100% 99.7% 171,722 171,154
    90% 89.0% 154,550 152,750
    80% 81.2% 137,377 139,495
    70% 70.2% 120,205 120,627
    60% 59.6% 103,033 102,287
    50% 50.0% 85,861 85,790
    40% 39.8% 68,689 68,354
    30% 30.0% 51,517 51,482
    20% 19.8% 34,344 34,069
    10% 9.9% 17,172 16,917
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,512
    Calibration 2     171,384
    Calibration 3     171,387
    ssj_ops@calibrated=171,385
    100% 99.5% 171,385 170,572
    90% 89.5% 154,247 153,368
    80% 79.6% 137,108 136,467
    70% 70.0% 119,970 119,964
    60% 59.4% 102,831 101,737
    50% 50.0% 85,693 85,656
    40% 39.3% 68,554 67,424
    30% 29.9% 51,416 51,275
    20% 20.2% 34,277 34,581
    10% 9.9% 17,139 16,983
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     170,030
    Calibration 2     174,157
    Calibration 3     173,759
    ssj_ops@calibrated=173,958
    100% 100.1% 173,958 174,185
    90% 90.6% 156,562 157,519
    80% 79.6% 139,166 138,534
    70% 69.8% 121,771 121,402
    60% 60.2% 104,375 104,639
    50% 50.1% 86,979 87,203
    40% 40.1% 69,583 69,729
    30% 29.7% 52,187 51,679
    20% 20.3% 34,792 35,369
    10% 10.2% 17,396 17,704
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,669
    Calibration 2     170,392
    Calibration 3     170,925
    ssj_ops@calibrated=170,659
    100% 99.9% 170,659 170,409
    90% 90.8% 153,593 154,997
    80% 79.8% 136,527 136,114
    70% 69.4% 119,461 118,363
    60% 60.3% 102,395 102,970
    50% 50.6% 85,329 86,299
    40% 39.6% 68,263 67,657
    30% 30.2% 51,198 51,472
    20% 20.5% 34,132 34,924
    10% 10.0% 17,066 16,983
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,960
    Calibration 2     169,049
    Calibration 3     168,821
    ssj_ops@calibrated=168,935
    100% 99.7% 168,935 168,429
    90% 89.8% 152,041 151,727
    80% 80.1% 135,148 135,264
    70% 69.9% 118,254 118,005
    60% 60.2% 101,361 101,719
    50% 49.2% 84,467 83,156
    40% 40.0% 67,574 67,566
    30% 29.9% 50,680 50,546
    20% 20.4% 33,787 34,512
    10% 9.9% 16,893 16,767
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,879
    Calibration 2     171,708
    Calibration 3     172,194
    ssj_ops@calibrated=171,951
    100% 100.0% 171,951 172,028
    90% 89.6% 154,756 154,091
    80% 79.9% 137,561 137,448
    70% 70.4% 120,366 121,033
    60% 59.5% 103,171 102,341
    50% 49.5% 85,976 85,116
    40% 40.3% 68,781 69,239
    30% 30.5% 51,585 52,396
    20% 19.9% 34,390 34,246
    10% 9.7% 17,195 16,599
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,707
    Calibration 2     170,815
    Calibration 3     170,611
    ssj_ops@calibrated=170,713
    100% 100.2% 170,713 171,100
    90% 89.3% 153,642 152,439
    80% 80.2% 136,571 136,884
    70% 70.5% 119,499 120,349
    60% 59.6% 102,428 101,807
    50% 50.0% 85,357 85,381
    40% 39.9% 68,285 68,041
    30% 29.6% 51,214 50,590
    20% 20.2% 34,143 34,517
    10% 10.1% 17,071 17,312
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,524
    Calibration 2     169,923
    Calibration 3     170,169
    ssj_ops@calibrated=170,046
    100% 99.6% 170,046 169,344
    90% 90.0% 153,041 153,019
    80% 80.6% 136,037 137,077
    70% 70.0% 119,032 119,026
    60% 60.2% 102,028 102,380
    50% 49.8% 85,023 84,726
    40% 40.3% 68,018 68,473
    30% 30.2% 51,014 51,315
    20% 20.0% 34,009 34,000
    10% 10.1% 17,005 17,152
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,770
    Calibration 2     171,315
    Calibration 3     171,520
    ssj_ops@calibrated=171,418
    100% 99.6% 171,418 170,797
    90% 90.1% 154,276 154,489
    80% 80.3% 137,134 137,639
    70% 70.5% 119,993 120,822
    60% 59.7% 102,851 102,281
    50% 50.1% 85,709 85,817
    40% 40.2% 68,567 68,908
    30% 30.4% 51,425 52,145
    20% 19.8% 34,284 33,882
    10% 10.0% 17,142 17,114
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-06.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,197
    Calibration 2     171,953
    Calibration 3     172,589
    ssj_ops@calibrated=172,271
    100% 99.6% 172,271 171,497
    90% 89.6% 155,044 154,372
    80% 80.8% 137,817 139,267
    70% 70.0% 120,590 120,590
    60% 59.4% 103,363 102,400
    50% 50.0% 86,135 86,054
    40% 40.1% 68,908 69,102
    30% 30.0% 51,681 51,658
    20% 20.2% 34,454 34,818
    10% 10.0% 17,227 17,214
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
