Dell Inc. PowerEdge M820 ssj_ops@100% = 2,724,614
ssj_ops@100% per JVM = 170,288
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,649,859
Calibration 2     2,730,986
Calibration 3     2,731,622
ssj_ops@calibrated=2,731,304
100% 99.8% 2,731,304 2,724,614
90% 89.8% 2,458,174 2,452,412
80% 79.9% 2,185,043 2,182,957
70% 70.0% 1,911,913 1,911,633
60% 60.2% 1,638,782 1,643,094
50% 50.0% 1,365,652 1,365,581
40% 40.0% 1,092,522 1,092,820
30% 30.0% 819,391 819,370
20% 20.0% 546,261 545,351
10% 10.0% 273,130 272,127
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-04.001 171,060
    M820-04.002 170,231
    M820-04.003 169,041
    M820-04.004 171,945
    M820-04.005 169,425
    M820-04.006 171,253
    M820-04.007 171,068
    M820-04.008 169,579
    M820-04.009 171,931
    M820-04.010 172,613
    M820-04.011 170,170
    M820-04.012 168,244
    M820-04.013 172,450
    M820-04.014 168,668
    M820-04.015 169,776
    M820-04.016 167,159
    ssj_ops@100% 2,724,614
    ssj_ops@100% per JVM 170,288

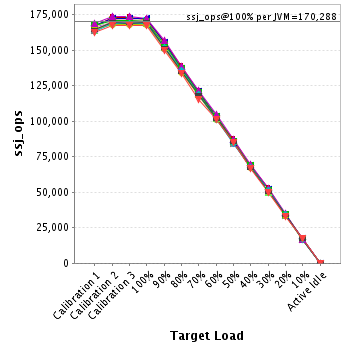

    Graph of per-instance results
    JVM 'M820-04.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,807
    Calibration 2     171,905
    Calibration 3     171,251
    ssj_ops@calibrated=171,578
    100% 99.7% 171,578 171,060
    90% 89.9% 154,420 154,282
    80% 79.4% 137,262 136,244
    70% 69.7% 120,104 119,647
    60% 59.8% 102,947 102,547
    50% 49.8% 85,789 85,467
    40% 40.2% 68,631 68,919
    30% 29.6% 51,473 50,846
    20% 20.1% 34,316 34,419
    10% 10.0% 17,158 17,224
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,611
    Calibration 2     168,930
    Calibration 3     170,582
    ssj_ops@calibrated=169,756
    100% 100.3% 169,756 170,231
    90% 88.9% 152,780 150,987
    80% 80.3% 135,805 136,316
    70% 70.0% 118,829 118,913
    60% 60.1% 101,854 102,047
    50% 49.7% 84,878 84,442
    40% 40.0% 67,902 67,906
    30% 30.0% 50,927 50,925
    20% 20.3% 33,951 34,431
    10% 9.8% 16,976 16,686
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,050
    Calibration 2     170,261
    Calibration 3     170,045
    ssj_ops@calibrated=170,153
    100% 99.3% 170,153 169,041
    90% 89.4% 153,138 152,063
    80% 79.8% 136,122 135,803
    70% 69.9% 119,107 118,889
    60% 60.0% 102,092 102,107
    50% 50.4% 85,077 85,714
    40% 39.9% 68,061 67,883
    30% 29.2% 51,046 49,668
    20% 19.8% 34,031 33,761
    10% 10.0% 17,015 16,982
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,075
    Calibration 2     172,396
    Calibration 3     172,384
    ssj_ops@calibrated=172,390
    100% 99.7% 172,390 171,945
    90% 90.4% 155,151 155,916
    80% 80.2% 137,912 138,276
    70% 69.5% 120,673 119,863
    60% 59.9% 103,434 103,313
    50% 49.9% 86,195 86,065
    40% 39.7% 68,956 68,392
    30% 30.2% 51,717 52,021
    20% 20.0% 34,478 34,420
    10% 9.8% 17,239 16,957
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,477
    Calibration 2     169,986
    Calibration 3     169,908
    ssj_ops@calibrated=169,947
    100% 99.7% 169,947 169,425
    90% 89.8% 152,952 152,640
    80% 79.1% 135,957 134,419
    70% 70.7% 118,963 120,128
    60% 60.2% 101,968 102,323
    50% 50.1% 84,973 85,095
    40% 40.1% 67,979 68,122
    30% 30.7% 50,984 52,148
    20% 19.9% 33,989 33,839
    10% 10.3% 16,995 17,440
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,577
    Calibration 2     171,268
    Calibration 3     172,010
    ssj_ops@calibrated=171,639
    100% 99.8% 171,639 171,253
    90% 89.6% 154,475 153,861
    80% 79.9% 137,311 137,089
    70% 69.7% 120,147 119,580
    60% 60.0% 102,983 103,031
    50% 49.8% 85,820 85,406
    40% 40.3% 68,656 69,145
    30% 30.2% 51,492 51,921
    20% 20.1% 34,328 34,509
    10% 9.9% 17,164 16,941
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,862
    Calibration 2     170,974
    Calibration 3     171,733
    ssj_ops@calibrated=171,353
    100% 99.8% 171,353 171,068
    90% 89.7% 154,218 153,667
    80% 80.4% 137,083 137,805
    70% 70.2% 119,947 120,348
    60% 60.5% 102,812 103,710
    50% 49.9% 85,677 85,486
    40% 40.1% 68,541 68,709
    30% 29.7% 51,406 50,932
    20% 19.7% 34,271 33,675
    10% 10.1% 17,135 17,242
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,611
    Calibration 2     170,102
    Calibration 3     169,512
    ssj_ops@calibrated=169,807
    100% 99.9% 169,807 169,579
    90% 89.5% 152,826 152,044
    80% 80.2% 135,845 136,254
    70% 70.4% 118,865 119,579
    60% 61.1% 101,884 103,732
    50% 49.5% 84,903 84,072
    40% 40.6% 67,923 68,952
    30% 30.2% 50,942 51,298
    20% 19.9% 33,961 33,826
    10% 9.9% 16,981 16,805
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,992
    Calibration 2     173,001
    Calibration 3     172,841
    ssj_ops@calibrated=172,921
    100% 99.4% 172,921 171,931
    90% 89.9% 155,629 155,507
    80% 80.0% 138,337 138,325
    70% 69.8% 121,045 120,729
    60% 59.5% 103,753 102,901
    50% 50.3% 86,460 87,049
    40% 39.6% 69,168 68,550
    30% 30.3% 51,876 52,403
    20% 20.1% 34,584 34,687
    10% 9.9% 17,292 17,108
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,145
    Calibration 2     172,458
    Calibration 3     172,547
    ssj_ops@calibrated=172,502
    100% 100.1% 172,502 172,613
    90% 90.2% 155,252 155,622
    80% 79.7% 138,002 137,484
    70% 70.0% 120,752 120,816
    60% 60.0% 103,501 103,587
    50% 49.1% 86,251 84,716
    40% 40.0% 69,001 68,917
    30% 30.0% 51,751 51,736
    20% 19.6% 34,500 33,777
    10% 9.9% 17,250 17,100
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,445
    Calibration 2     171,267
    Calibration 3     170,965
    ssj_ops@calibrated=171,116
    100% 99.4% 171,116 170,170
    90% 90.0% 154,004 154,052
    80% 80.1% 136,893 137,101
    70% 70.1% 119,781 119,961
    60% 60.4% 102,670 103,367
    50% 50.0% 85,558 85,611
    40% 40.2% 68,446 68,792
    30% 29.9% 51,335 51,183
    20% 20.2% 34,223 34,590
    10% 9.9% 17,112 16,957
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,673
    Calibration 2     168,070
    Calibration 3     168,270
    ssj_ops@calibrated=168,170
    100% 100.0% 168,170 168,244
    90% 89.9% 151,353 151,124
    80% 80.1% 134,536 134,621
    70% 70.2% 117,719 117,999
    60% 60.3% 100,902 101,399
    50% 50.5% 84,085 84,901
    40% 40.0% 67,268 67,218
    30% 30.0% 50,451 50,415
    20% 19.9% 33,634 33,424
    10% 9.9% 16,817 16,611
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,902
    Calibration 2     173,903
    Calibration 3     173,670
    ssj_ops@calibrated=173,787
    100% 99.2% 173,787 172,450
    90% 90.2% 156,408 156,805
    80% 79.9% 139,030 138,864
    70% 69.9% 121,651 121,544
    60% 60.3% 104,272 104,847
    50% 50.2% 86,893 87,197
    40% 40.0% 69,515 69,587
    30% 30.4% 52,136 52,799
    20% 20.0% 34,757 34,791
    10% 9.8% 17,379 17,078
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,355
    Calibration 2     168,944
    Calibration 3     169,141
    ssj_ops@calibrated=169,042
    100% 99.8% 169,042 168,668
    90% 89.8% 152,138 151,846
    80% 80.2% 135,234 135,528
    70% 70.5% 118,330 119,179
    60% 59.8% 101,425 101,013
    50% 49.8% 84,521 84,214
    40% 40.0% 67,617 67,698
    30% 30.2% 50,713 51,036
    20% 20.2% 33,808 34,068
    10% 9.8% 16,904 16,617
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,501
    Calibration 2     169,889
    Calibration 3     169,092
    ssj_ops@calibrated=169,490
    100% 100.2% 169,490 169,776
    90% 89.6% 152,541 151,832
    80% 79.6% 135,592 134,946
    70% 70.1% 118,643 118,837
    60% 60.1% 101,694 101,877
    50% 50.3% 84,745 85,236
    40% 39.6% 67,796 67,151
    30% 29.6% 50,847 50,209
    20% 20.1% 33,898 34,042
    10% 10.0% 16,949 16,960
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-04.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     162,776
    Calibration 2     167,631
    Calibration 3     167,673
    ssj_ops@calibrated=167,652
    100% 99.7% 167,652 167,159
    90% 89.6% 150,887 150,165
    80% 79.9% 134,122 133,882
    70% 69.0% 117,357 115,622
    60% 60.4% 100,591 101,292
    50% 50.6% 83,826 84,910
    40% 39.9% 67,061 66,880
    30% 29.7% 50,296 49,831
    20% 19.7% 33,530 33,092
    10% 10.4% 16,765 17,420
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
