Dell Inc. PowerEdge M820 ssj_ops@100% = 2,734,126
ssj_ops@100% per JVM = 170,883
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,659,758
Calibration 2     2,737,415
Calibration 3     2,739,030
ssj_ops@calibrated=2,738,223
100% 99.9% 2,738,223 2,734,126
90% 90.0% 2,464,400 2,464,054
80% 80.0% 2,190,578 2,191,199
70% 70.0% 1,916,756 1,917,046
60% 60.0% 1,642,934 1,643,688
50% 50.1% 1,369,111 1,371,822
40% 39.9% 1,095,289 1,093,544
30% 29.9% 821,467 817,943
20% 20.0% 547,645 547,347
10% 10.0% 273,822 274,773
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-02.001 171,037
    M820-02.002 173,560
    M820-02.003 170,954
    M820-02.004 169,750
    M820-02.005 172,183
    M820-02.006 171,186
    M820-02.007 171,937
    M820-02.008 167,691
    M820-02.009 170,095
    M820-02.010 172,162
    M820-02.011 169,952
    M820-02.012 171,546
    M820-02.013 172,248
    M820-02.014 170,997
    M820-02.015 168,359
    M820-02.016 170,470
    ssj_ops@100% 2,734,126
    ssj_ops@100% per JVM 170,883

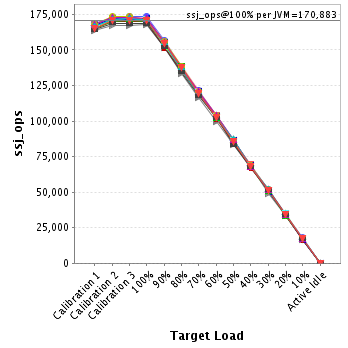

    Graph of per-instance results
    JVM 'M820-02.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,734
    Calibration 2     171,566
    Calibration 3     171,846
    ssj_ops@calibrated=171,706
    100% 99.6% 171,706 171,037
    90% 89.9% 154,535 154,299
    80% 80.6% 137,365 138,354
    70% 70.0% 120,194 120,224
    60% 60.4% 103,023 103,758
    50% 50.4% 85,853 86,565
    40% 40.5% 68,682 69,511
    30% 29.9% 51,512 51,305
    20% 19.9% 34,341 34,218
    10% 9.9% 17,171 16,971
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,357
    Calibration 2     172,647
    Calibration 3     173,577
    ssj_ops@calibrated=173,112
    100% 100.3% 173,112 173,560
    90% 90.5% 155,800 156,647
    80% 79.7% 138,489 137,959
    70% 70.3% 121,178 121,627
    60% 59.8% 103,867 103,566
    50% 50.0% 86,556 86,537
    40% 39.7% 69,245 68,707
    30% 29.8% 51,933 51,594
    20% 19.9% 34,622 34,524
    10% 10.3% 17,311 17,767
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,669
    Calibration 2     170,742
    Calibration 3     170,919
    ssj_ops@calibrated=170,830
    100% 100.1% 170,830 170,954
    90% 89.2% 153,747 152,406
    80% 79.7% 136,664 136,225
    70% 70.3% 119,581 120,168
    60% 59.8% 102,498 102,236
    50% 51.1% 85,415 87,305
    40% 39.9% 68,332 68,233
    30% 29.3% 51,249 50,096
    20% 20.3% 34,166 34,672
    10% 10.3% 17,083 17,597
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,958
    Calibration 2     170,008
    Calibration 3     169,829
    ssj_ops@calibrated=169,918
    100% 99.9% 169,918 169,750
    90% 89.8% 152,927 152,567
    80% 79.9% 135,935 135,781
    70% 70.4% 118,943 119,640
    60% 60.5% 101,951 102,753
    50% 49.6% 84,959 84,217
    40% 39.8% 67,967 67,688
    30% 29.7% 50,976 50,535
    20% 20.1% 33,984 34,104
    10% 10.3% 16,992 17,522
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,190
    Calibration 2     172,177
    Calibration 3     172,070
    ssj_ops@calibrated=172,123
    100% 100.0% 172,123 172,183
    90% 89.6% 154,911 154,252
    80% 80.3% 137,699 138,273
    70% 70.6% 120,486 121,564
    60% 59.4% 103,274 102,268
    50% 50.2% 86,062 86,383
    40% 39.8% 68,849 68,455
    30% 29.8% 51,637 51,336
    20% 19.8% 34,425 34,133
    10% 10.1% 17,212 17,308
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,448
    Calibration 2     171,751
    Calibration 3     171,688
    ssj_ops@calibrated=171,720
    100% 99.7% 171,720 171,186
    90% 89.4% 154,548 153,481
    80% 80.3% 137,376 137,837
    70% 69.7% 120,204 119,706
    60% 59.9% 103,032 102,934
    50% 50.1% 85,860 85,982
    40% 40.1% 68,688 68,797
    30% 30.0% 51,516 51,439
    20% 20.2% 34,344 34,685
    10% 9.7% 17,172 16,653
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,700
    Calibration 2     172,202
    Calibration 3     172,848
    ssj_ops@calibrated=172,525
    100% 99.7% 172,525 171,937
    90% 90.5% 155,272 156,120
    80% 80.4% 138,020 138,750
    70% 70.2% 120,767 121,123
    60% 60.2% 103,515 103,901
    50% 50.0% 86,262 86,226
    40% 39.7% 69,010 68,516
    30% 30.1% 51,757 51,955
    20% 20.1% 34,505 34,727
    10% 9.9% 17,252 17,088
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,398
    Calibration 2     167,435
    Calibration 3     167,080
    ssj_ops@calibrated=167,257
    100% 100.3% 167,257 167,691
    90% 90.5% 150,532 151,423
    80% 79.8% 133,806 133,516
    70% 69.7% 117,080 116,559
    60% 59.4% 100,354 99,332
    50% 49.9% 83,629 83,404
    40% 40.9% 66,903 68,400
    30% 29.5% 50,177 49,380
    20% 20.1% 33,451 33,618
    10% 10.2% 16,726 17,041
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,906
    Calibration 2     169,921
    Calibration 3     170,062
    ssj_ops@calibrated=169,992
    100% 100.1% 169,992 170,095
    90% 89.3% 152,992 151,830
    80% 79.6% 135,993 135,274
    70% 70.1% 118,994 119,131
    60% 60.0% 101,995 101,960
    50% 49.8% 84,996 84,626
    40% 39.8% 67,997 67,600
    30% 30.1% 50,997 51,231
    20% 19.6% 33,998 33,306
    10% 9.9% 16,999 16,783
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,973
    Calibration 2     171,765
    Calibration 3     171,460
    ssj_ops@calibrated=171,612
    100% 100.3% 171,612 172,162
    90% 90.4% 154,451 155,084
    80% 79.8% 137,290 136,987
    70% 70.3% 120,129 120,672
    60% 60.2% 102,967 103,359
    50% 50.2% 85,806 86,208
    40% 40.2% 68,645 69,042
    30% 29.3% 51,484 50,277
    20% 20.0% 34,322 34,355
    10% 9.8% 17,161 16,829
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,127
    Calibration 2     170,175
    Calibration 3     170,919
    ssj_ops@calibrated=170,547
    100% 99.7% 170,547 169,952
    90% 90.7% 153,492 154,709
    80% 81.0% 136,437 138,075
    70% 69.6% 119,383 118,777
    60% 60.1% 102,328 102,538
    50% 50.1% 85,273 85,361
    40% 39.7% 68,219 67,683
    30% 29.8% 51,164 50,901
    20% 19.6% 34,109 33,460
    10% 10.0% 17,055 17,128
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,936
    Calibration 2     173,304
    Calibration 3     173,307
    ssj_ops@calibrated=173,306
    100% 99.0% 173,306 171,546
    90% 89.9% 155,975 155,800
    80% 79.7% 138,645 138,069
    70% 69.7% 121,314 120,737
    60% 59.9% 103,984 103,775
    50% 49.8% 86,653 86,316
    40% 39.8% 69,322 68,973
    30% 29.8% 51,992 51,692
    20% 20.0% 34,661 34,604
    10% 10.1% 17,331 17,586
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,698
    Calibration 2     172,898
    Calibration 3     172,539
    ssj_ops@calibrated=172,719
    100% 99.7% 172,719 172,248
    90% 89.9% 155,447 155,322
    80% 79.8% 138,175 137,747
    70% 70.0% 120,903 120,921
    60% 60.0% 103,631 103,648
    50% 50.3% 86,359 86,951
    40% 39.5% 69,087 68,289
    30% 30.0% 51,816 51,745
    20% 20.0% 34,544 34,492
    10% 9.9% 17,272 17,138
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,327
    Calibration 2     171,415
    Calibration 3     171,741
    ssj_ops@calibrated=171,578
    100% 99.7% 171,578 170,997
    90% 89.6% 154,420 153,812
    80% 79.6% 137,262 136,531
    70% 69.3% 120,104 118,981
    60% 59.9% 102,947 102,721
    50% 50.7% 85,789 87,050
    40% 39.6% 68,631 67,957
    30% 30.3% 51,473 51,918
    20% 19.9% 34,316 34,120
    10% 10.0% 17,158 17,181
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,026
    Calibration 2     168,765
    Calibration 3     168,444
    ssj_ops@calibrated=168,605
    100% 99.9% 168,605 168,359
    90% 90.1% 151,744 151,964
    80% 79.7% 134,884 134,311
    70% 69.8% 118,023 117,746
    60% 60.6% 101,163 102,213
    50% 49.5% 84,302 83,436
    40% 40.1% 67,442 67,533
    30% 30.4% 50,581 51,330
    20% 20.3% 33,721 34,156
    10% 10.0% 16,860 16,920
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-02.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,311
    Calibration 2     170,645
    Calibration 3     170,703
    ssj_ops@calibrated=170,674
    100% 99.9% 170,674 170,470
    90% 90.4% 153,606 154,336
    80% 80.6% 136,539 137,511
    70% 70.0% 119,472 119,469
    60% 60.2% 102,404 102,724
    50% 50.0% 85,337 85,254
    40% 39.9% 68,269 68,161
    30% 30.0% 51,202 51,209
    20% 20.0% 34,135 34,171
    10% 10.1% 17,067 17,261
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
