Dell Inc. PowerEdge M820 ssj_ops@100% = 2,735,983
ssj_ops@100% per JVM = 170,999
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,663,757
Calibration 2     2,743,259
Calibration 3     2,742,429
ssj_ops@calibrated=2,742,844
100% 99.7% 2,742,844 2,735,983
90% 89.9% 2,468,560 2,467,156
80% 80.2% 2,194,275 2,200,875
70% 70.0% 1,919,991 1,919,016
60% 60.0% 1,645,706 1,646,356
50% 50.0% 1,371,422 1,370,434
40% 39.9% 1,097,138 1,095,378
30% 30.0% 822,853 822,089
20% 20.0% 548,569 547,800
10% 10.0% 274,284 273,039
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M820
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M820
Form Factor: Blade
CPU Name: Intel Xeon E5-4650L (2.60 GHz)
CPU Characteristics: 8 Core, 2.60 GHz
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC-9
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port Intel X520-k
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.0.3
Management Firmware Version: iDRAC7 1.20.20 Build 24
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled.
  • Hardware Prefetcher Disabled.
  • DCU Streamer Prefetcher disabled.
  • User Accessible USB Ports set to Disabled.
  • CPU Power management set to System DBPM (DAPC).
  • Memory Speed set to 1067MHz.
  • Turbo Boost Disabled.
  • C1E Enabled.
  • C States enabled
  • QPI speed set to 6.4 GT/s.
  • Memory Patrol Scrub disabled.
  • Memory refresh rate set to 1x.
  • Memory Operating Voltage set to Auto.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M820-01.001 173,413
    M820-01.002 171,060
    M820-01.003 169,662
    M820-01.004 171,173
    M820-01.005 170,133
    M820-01.006 170,068
    M820-01.007 169,479
    M820-01.008 168,265
    M820-01.009 171,568
    M820-01.010 171,813
    M820-01.011 171,799
    M820-01.012 171,939
    M820-01.013 170,170
    M820-01.014 172,375
    M820-01.015 171,199
    M820-01.016 171,866
    ssj_ops@100% 2,735,983
    ssj_ops@100% per JVM 170,999

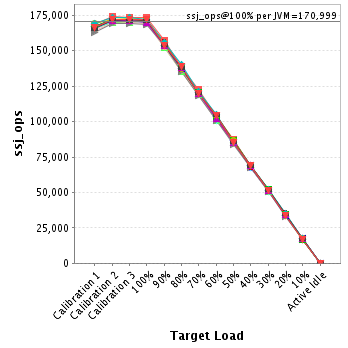

    Graph of per-instance results
    JVM 'M820-01.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     168,773
    Calibration 2     174,334
    Calibration 3     173,660
    ssj_ops@calibrated=173,997
    100% 99.7% 173,997 173,413
    90% 90.2% 156,597 156,953
    80% 79.6% 139,198 138,463
    70% 70.5% 121,798 122,748
    60% 59.6% 104,398 103,643
    50% 50.1% 86,999 87,152
    40% 39.8% 69,599 69,320
    30% 29.7% 52,199 51,695
    20% 19.7% 34,799 34,229
    10% 10.0% 17,400 17,333
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,979
    Calibration 2     171,346
    Calibration 3     171,676
    ssj_ops@calibrated=171,511
    100% 99.7% 171,511 171,060
    90% 90.2% 154,360 154,713
    80% 80.7% 137,209 138,482
    70% 70.1% 120,057 120,169
    60% 60.3% 102,906 103,479
    50% 50.3% 85,755 86,247
    40% 39.5% 68,604 67,686
    30% 30.0% 51,453 51,469
    20% 20.1% 34,302 34,512
    10% 10.0% 17,151 17,103
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,656
    Calibration 2     169,866
    Calibration 3     169,702
    ssj_ops@calibrated=169,784
    100% 99.9% 169,784 169,662
    90% 89.9% 152,806 152,562
    80% 79.9% 135,828 135,698
    70% 70.1% 118,849 119,008
    60% 59.4% 101,871 100,906
    50% 50.4% 84,892 85,496
    40% 40.1% 67,914 68,145
    30% 29.8% 50,935 50,512
    20% 19.8% 33,957 33,549
    10% 10.0% 16,978 16,933
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,694
    Calibration 2     171,091
    Calibration 3     170,671
    ssj_ops@calibrated=170,881
    100% 100.2% 170,881 171,173
    90% 90.1% 153,793 153,929
    80% 79.5% 136,705 135,766
    70% 69.7% 119,617 119,060
    60% 60.4% 102,529 103,237
    50% 49.8% 85,441 85,050
    40% 39.8% 68,352 68,057
    30% 30.3% 51,264 51,779
    20% 19.7% 34,176 33,625
    10% 10.0% 17,088 17,012
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,633
    Calibration 2     170,830
    Calibration 3     170,801
    ssj_ops@calibrated=170,815
    100% 99.6% 170,815 170,133
    90% 90.6% 153,734 154,757
    80% 80.1% 136,652 136,857
    70% 70.0% 119,571 119,547
    60% 59.8% 102,489 102,083
    50% 49.9% 85,408 85,303
    40% 39.4% 68,326 67,316
    30% 29.8% 51,245 50,915
    20% 19.7% 34,163 33,668
    10% 9.7% 17,082 16,566
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,890
    Calibration 2     170,957
    Calibration 3     170,471
    ssj_ops@calibrated=170,714
    100% 99.6% 170,714 170,068
    90% 89.7% 153,643 153,137
    80% 80.8% 136,571 137,996
    70% 70.0% 119,500 119,441
    60% 59.1% 102,428 100,914
    50% 49.9% 85,357 85,151
    40% 39.7% 68,286 67,718
    30% 29.8% 51,214 50,814
    20% 20.2% 34,143 34,450
    10% 9.8% 17,071 16,770
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     164,322
    Calibration 2     169,561
    Calibration 3     169,929
    ssj_ops@calibrated=169,745
    100% 99.8% 169,745 169,479
    90% 89.6% 152,770 152,147
    80% 79.9% 135,796 135,611
    70% 69.9% 118,821 118,593
    60% 59.6% 101,847 101,110
    50% 50.2% 84,872 85,232
    40% 39.9% 67,898 67,719
    30% 29.8% 50,923 50,561
    20% 20.3% 33,949 34,485
    10% 10.0% 16,974 16,940
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     163,270
    Calibration 2     169,343
    Calibration 3     169,052
    ssj_ops@calibrated=169,197
    100% 99.4% 169,197 168,265
    90% 90.9% 152,277 153,776
    80% 80.2% 135,358 135,671
    70% 69.8% 118,438 118,117
    60% 59.8% 101,518 101,119
    50% 49.7% 84,599 84,054
    40% 39.9% 67,679 67,585
    30% 29.9% 50,759 50,557
    20% 19.7% 33,839 33,275
    10% 10.0% 16,920 16,959
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,161
    Calibration 2     171,776
    Calibration 3     171,855
    ssj_ops@calibrated=171,816
    100% 99.9% 171,816 171,568
    90% 90.6% 154,634 155,631
    80% 80.0% 137,452 137,446
    70% 70.2% 120,271 120,642
    60% 59.7% 103,089 102,539
    50% 49.8% 85,908 85,498
    40% 39.6% 68,726 67,988
    30% 30.1% 51,545 51,636
    20% 20.4% 34,363 35,057
    10% 9.6% 17,182 16,541
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,897
    Calibration 2     171,881
    Calibration 3     172,014
    ssj_ops@calibrated=171,947
    100% 99.9% 171,947 171,813
    90% 89.4% 154,753 153,688
    80% 80.2% 137,558 137,856
    70% 69.9% 120,363 120,226
    60% 60.3% 103,168 103,770
    50% 50.4% 85,974 86,598
    40% 40.2% 68,779 69,103
    30% 29.7% 51,584 51,146
    20% 19.7% 34,389 33,900
    10% 10.1% 17,195 17,282
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     167,355
    Calibration 2     172,103
    Calibration 3     172,133
    ssj_ops@calibrated=172,118
    100% 99.8% 172,118 171,799
    90% 89.1% 154,906 153,430
    80% 80.3% 137,694 138,262
    70% 70.2% 120,482 120,803
    60% 59.7% 103,271 102,684
    50% 50.3% 86,059 86,589
    40% 40.3% 68,847 69,340
    30% 30.3% 51,635 52,228
    20% 20.1% 34,424 34,550
    10% 9.9% 17,212 16,975
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     169,022
    Calibration 2     171,876
    Calibration 3     172,545
    ssj_ops@calibrated=172,210
    100% 99.8% 172,210 171,939
    90% 89.9% 154,989 154,832
    80% 79.8% 137,768 137,486
    70% 69.7% 120,547 120,041
    60% 60.5% 103,326 104,238
    50% 50.3% 86,105 86,611
    40% 40.3% 68,884 69,369
    30% 30.0% 51,663 51,675
    20% 20.0% 34,442 34,392
    10% 10.0% 17,221 17,287
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,538
    Calibration 2     171,147
    Calibration 3     171,489
    ssj_ops@calibrated=171,318
    100% 99.3% 171,318 170,170
    90% 89.7% 154,186 153,731
    80% 80.5% 137,054 137,894
    70% 69.8% 119,923 119,515
    60% 59.7% 102,791 102,212
    50% 49.8% 85,659 85,296
    40% 40.4% 68,527 69,140
    30% 30.1% 51,395 51,548
    20% 20.3% 34,264 34,714
    10% 10.2% 17,132 17,429
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     169,447
    Calibration 2     173,261
    Calibration 3     173,335
    ssj_ops@calibrated=173,298
    100% 99.5% 173,298 172,375
    90% 90.1% 155,968 156,124
    80% 80.9% 138,639 140,260
    70% 69.8% 121,309 121,008
    60% 60.8% 103,979 105,316
    50% 49.2% 86,649 85,252
    40% 39.8% 69,319 68,954
    30% 30.0% 51,989 51,931
    20% 20.2% 34,660 34,969
    10% 10.1% 17,330 17,475
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     165,676
    Calibration 2     171,578
    Calibration 3     170,963
    ssj_ops@calibrated=171,271
    100% 100.0% 171,271 171,199
    90% 89.8% 154,144 153,861
    80% 80.6% 137,017 138,084
    70% 70.0% 119,890 119,885
    60% 61.0% 102,762 104,557
    50% 50.1% 85,635 85,881
    40% 40.2% 68,508 68,845
    30% 30.4% 51,381 52,049
    20% 20.2% 34,254 34,607
    10% 10.2% 17,127 17,389
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M820-01.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     166,443
    Calibration 2     172,311
    Calibration 3     172,132
    ssj_ops@calibrated=172,221
    100% 99.8% 172,221 171,866
    90% 89.4% 154,999 153,885
    80% 80.7% 137,777 139,043
    70% 69.8% 120,555 120,212
    60% 60.7% 103,333 104,551
    50% 49.4% 86,111 85,023
    40% 40.1% 68,889 69,094
    30% 29.9% 51,666 51,574
    20% 19.6% 34,444 33,816
    10% 9.9% 17,222 17,046
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
