IBM Corporation IBM System x3300 M4 ssj_ops@100% = 1,460,149
ssj_ops@100% per JVM = 182,519
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Aug 3, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,938
Calibration 2     1,463,201
Calibration 3     1,463,361
ssj_ops@calibrated=1,463,281
100% 99.8% 1,463,281 1,460,149
90% 90.0% 1,316,953 1,316,466
80% 79.8% 1,170,624 1,167,165
70% 70.2% 1,024,296 1,027,412
60% 60.0% 877,968 877,348
50% 50.1% 731,640 733,547
40% 39.7% 585,312 580,918
30% 29.9% 438,984 437,745
20% 20.0% 292,656 292,559
10% 9.9% 146,328 145,371
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3300 M4
Form Factor: 4U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30 GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9 and 11 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: IBM 550w PSU(94Y6668)
Disk Drive: 1 x 256GB SSD(IBM Feature Code: A2U3)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 115D
Management Firmware Version: 31K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-5RIF9S0O7F2.001 183,274
WIN-5RIF9S0O7F2.002 182,451
WIN-5RIF9S0O7F2.003 181,771
WIN-5RIF9S0O7F2.004 183,703
WIN-5RIF9S0O7F2.005 184,038
WIN-5RIF9S0O7F2.006 182,750
WIN-5RIF9S0O7F2.007 179,421
WIN-5RIF9S0O7F2.008 182,741
ssj_ops@100% 1,460,149
ssj_ops@100% per JVM 182,519

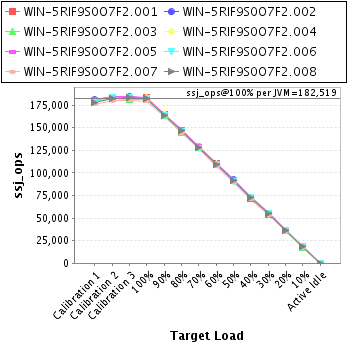

Graph of per-instance results
JVM 'WIN-5RIF9S0O7F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,375
Calibration 2     183,281
Calibration 3     182,614
ssj_ops@calibrated=182,947
100% 100.2% 182,947 183,274
90% 90.2% 164,653 165,105
80% 78.9% 146,358 144,350
70% 70.0% 128,063 128,149
60% 60.4% 109,768 110,556
50% 50.2% 91,474 91,868
40% 39.4% 73,179 72,147
30% 29.6% 54,884 54,165
20% 19.8% 36,589 36,165
10% 10.0% 18,295 18,282
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,910
Calibration 2     183,597
Calibration 3     184,317
ssj_ops@calibrated=183,957
100% 99.2% 183,957 182,451
90% 89.8% 165,562 165,248
80% 79.7% 147,166 146,607
70% 70.0% 128,770 128,842
60% 60.0% 110,374 110,325
50% 50.3% 91,979 92,505
40% 39.7% 73,583 72,999
30% 29.9% 55,187 55,083
20% 19.9% 36,791 36,639
10% 10.0% 18,396 18,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,936
Calibration 2     182,272
Calibration 3     181,627
ssj_ops@calibrated=181,950
100% 99.9% 181,950 181,771
90% 90.0% 163,755 163,764
80% 79.5% 145,560 144,581
70% 70.6% 127,365 128,518
60% 59.8% 109,170 108,895
50% 50.4% 90,975 91,644
40% 39.8% 72,780 72,405
30% 30.0% 54,585 54,651
20% 20.0% 36,390 36,317
10% 9.8% 18,195 17,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,105
Calibration 2     183,488
Calibration 3     182,786
ssj_ops@calibrated=183,137
100% 100.3% 183,137 183,703
90% 90.8% 164,824 166,242
80% 79.8% 146,510 146,112
70% 70.4% 128,196 128,984
60% 60.1% 109,882 110,125
50% 50.2% 91,569 91,945
40% 39.8% 73,255 72,884
30% 29.7% 54,941 54,388
20% 20.0% 36,627 36,699
10% 10.0% 18,314 18,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,675
Calibration 2     184,489
Calibration 3     184,966
ssj_ops@calibrated=184,727
100% 99.6% 184,727 184,038
90% 89.4% 166,254 165,067
80% 80.3% 147,782 148,427
70% 70.2% 129,309 129,709
60% 59.9% 110,836 110,731
50% 50.2% 92,364 92,822
40% 39.8% 73,891 73,562
30% 30.1% 55,418 55,655
20% 20.1% 36,945 37,165
10% 9.9% 18,473 18,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,975
Calibration 2     183,156
Calibration 3     183,470
ssj_ops@calibrated=183,313
100% 99.7% 183,313 182,750
90% 89.5% 164,982 164,060
80% 79.8% 146,650 146,204
70% 69.6% 128,319 127,536
60% 59.9% 109,988 109,873
50% 49.7% 91,656 91,070
40% 39.8% 73,325 72,945
30% 30.2% 54,994 55,365
20% 19.9% 36,663 36,483
10% 9.9% 18,331 18,167
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,869
Calibration 2     180,035
Calibration 3     180,353
ssj_ops@calibrated=180,194
100% 99.6% 180,194 179,421
90% 90.4% 162,174 162,947
80% 80.1% 144,155 144,384
70% 70.7% 126,136 127,331
60% 59.7% 108,116 107,625
50% 49.8% 90,097 89,681
40% 39.5% 72,078 71,143
30% 29.9% 54,058 53,869
20% 20.1% 36,039 36,269
10% 9.8% 18,019 17,723
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,094
Calibration 2     182,883
Calibration 3     183,227
ssj_ops@calibrated=183,055
100% 99.8% 183,055 182,741
90% 89.6% 164,750 164,033
80% 80.0% 146,444 146,500
70% 70.1% 128,139 128,344
60% 59.7% 109,833 109,218
50% 50.3% 91,528 92,011
40% 39.8% 73,222 72,833
30% 29.8% 54,917 54,569
20% 20.1% 36,611 36,822
10% 10.0% 18,306 18,326
Active Idle   0 0

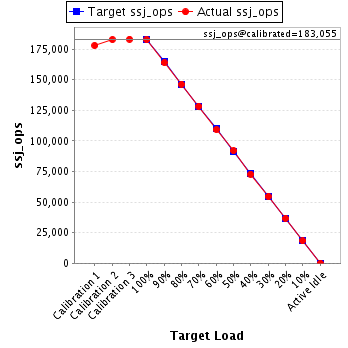

Graph of results
See the JVM Instance Performance Report for additional details.
