Hitachi, Ltd. HA8000/RS220AM ssj_ops@100% = 1,329,120
ssj_ops@100% per JVM = 166,140
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 25, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,323,233
Calibration 2     1,331,566
Calibration 3     1,336,903
ssj_ops@calibrated=1,334,234
100% 99.6% 1,334,234 1,329,120
90% 89.8% 1,200,811 1,198,672
80% 80.4% 1,067,388 1,072,729
70% 70.1% 933,964 935,038
60% 60.0% 800,541 800,710
50% 50.0% 667,117 667,204
40% 40.0% 533,694 533,124
30% 30.1% 400,270 401,240
20% 20.1% 266,847 267,752
10% 10.1% 133,423 134,782
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS220AM
Form Factor: 2U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8 core, 2.3GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx2 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DELTA DPS-800QB_A(Hitachi P/N:GQ-BP2361)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5719 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: M2.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-0HKHL5JBL0S.001 166,705
WIN-0HKHL5JBL0S.002 168,180
WIN-0HKHL5JBL0S.003 163,693
WIN-0HKHL5JBL0S.004 165,798
WIN-0HKHL5JBL0S.005 165,337
WIN-0HKHL5JBL0S.006 166,727
WIN-0HKHL5JBL0S.007 166,063
WIN-0HKHL5JBL0S.008 166,617
ssj_ops@100% 1,329,120
ssj_ops@100% per JVM 166,140

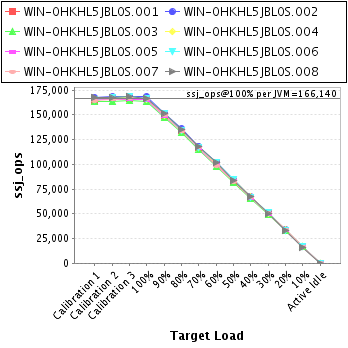

Graph of per-instance results
JVM 'WIN-0HKHL5JBL0S.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,860
Calibration 2     167,003
Calibration 3     166,766
ssj_ops@calibrated=166,885
100% 99.9% 166,885 166,705
90% 89.7% 150,196 149,686
80% 80.3% 133,508 134,051
70% 70.2% 116,819 117,163
60% 60.2% 100,131 100,491
50% 49.6% 83,442 82,740
40% 39.5% 66,754 66,001
30% 30.0% 50,065 50,026
20% 20.0% 33,377 33,304
10% 10.2% 16,688 16,970
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,056
Calibration 2     168,084
Calibration 3     168,748
ssj_ops@calibrated=168,416
100% 99.9% 168,416 168,180
90% 89.7% 151,574 151,040
80% 80.6% 134,733 135,686
70% 70.2% 117,891 118,195
60% 60.3% 101,049 101,517
50% 50.0% 84,208 84,206
40% 39.8% 67,366 67,063
30% 29.8% 50,525 50,105
20% 20.3% 33,683 34,179
10% 10.2% 16,842 17,179
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,014
Calibration 2     163,874
Calibration 3     164,813
ssj_ops@calibrated=164,344
100% 99.6% 164,344 163,693
90% 89.8% 147,909 147,570
80% 80.5% 131,475 132,281
70% 69.8% 115,041 114,669
60% 59.6% 98,606 98,030
50% 49.7% 82,172 81,745
40% 39.9% 65,737 65,612
30% 30.0% 49,303 49,379
20% 20.0% 32,869 32,902
10% 10.2% 16,434 16,782
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,414
Calibration 2     166,995
Calibration 3     167,563
ssj_ops@calibrated=167,279
100% 99.1% 167,279 165,798
90% 89.4% 150,551 149,572
80% 80.0% 133,823 133,825
70% 70.2% 117,095 117,363
60% 59.9% 100,367 100,244
50% 50.4% 83,640 84,241
40% 40.3% 66,912 67,357
30% 30.3% 50,184 50,726
20% 20.1% 33,456 33,631
10% 10.0% 16,728 16,711
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,541
Calibration 2     165,563
Calibration 3     165,840
ssj_ops@calibrated=165,702
100% 99.8% 165,702 165,337
90% 89.7% 149,132 148,553
80% 81.0% 132,561 134,139
70% 70.0% 115,991 116,042
60% 59.7% 99,421 98,876
50% 50.3% 82,851 83,411
40% 40.0% 66,281 66,305
30% 30.1% 49,711 49,813
20% 20.1% 33,140 33,311
10% 10.3% 16,570 17,047
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,123
Calibration 2     167,380
Calibration 3     168,286
ssj_ops@calibrated=167,833
100% 99.3% 167,833 166,727
90% 90.0% 151,050 151,063
80% 80.1% 134,266 134,421
70% 69.6% 117,483 116,846
60% 60.4% 100,700 101,314
50% 50.3% 83,916 84,480
40% 39.7% 67,133 66,712
30% 30.3% 50,350 50,917
20% 19.9% 33,567 33,449
10% 10.1% 16,783 17,017
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,341
Calibration 2     165,590
Calibration 3     166,852
ssj_ops@calibrated=166,221
100% 99.9% 166,221 166,063
90% 90.1% 149,599 149,697
80% 80.2% 132,977 133,358
70% 70.4% 116,355 116,978
60% 59.3% 99,733 98,614
50% 49.7% 83,111 82,571
40% 40.1% 66,488 66,728
30% 30.3% 49,866 50,376
20% 20.2% 33,244 33,616
10% 10.1% 16,622 16,736
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,885
Calibration 2     167,077
Calibration 3     168,034
ssj_ops@calibrated=167,556
100% 99.4% 167,556 166,617
90% 90.4% 150,800 151,493
80% 80.6% 134,044 134,969
70% 70.3% 117,289 117,781
60% 60.7% 100,533 101,625
50% 50.0% 83,778 83,810
40% 40.2% 67,022 67,346
30% 29.8% 50,267 49,897
20% 19.9% 33,511 33,361
10% 9.8% 16,756 16,339
Active Idle   0 0
Graph of results
