Hitachi, Ltd. HA8000/RS220AM SPECpower_ssj2008 = 3,911 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 25, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 284 26.4
Calibration 2 286 26.4
Calibration 3 286 26.4
100% 286 26.4
90% 258 26.4
80% 219 26.5
70% 204 26.6
60% 185 26.6
50% 160 26.6
40% 139 26.6
30% 123 26.6
20% 112 26.6
10% 102 26.6
Active Idle 88.9 26.6

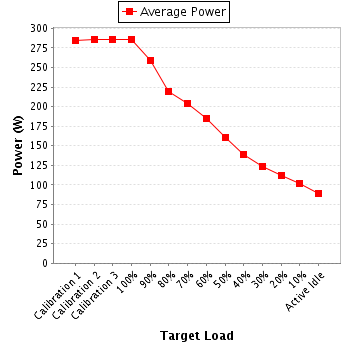

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2012-06-50931
Date of Calibration: 12-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 40 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.45 2.0 0.984 284 0.4%
Calibration 2 200 300.0 1.45 2.0 0.984 286 0.4%
Calibration 3 200 300.0 1.46 2.0 0.984 286 0.4%
100% 200 300.0 1.45 2.0 0.984 286 0.4%
90% 200 300.0 1.32 2.0 0.980 258 0.4%
80% 200 300.0 1.12 2.0 0.980 219 0.5%
70% 200 300.0 1.05 2.0 0.976 204 0.5%
60% 200 300.0 0.951 2.0 0.971 185 0.5%
50% 200 300.0 0.826 2.0 0.970 160 0.6%
40% 200 300.0 0.717 2.0 0.971 139 0.6%
30% 200 300.0 0.636 1.0 0.970 123 0.4%
20% 200 300.0 0.578 1.0 0.967 112 0.5%
10% 200 300.0 0.531 1.0 0.962 102 0.5%
Active Idle 200 300.0 0.467 1.0 0.953 88.9 0.6%
Power details for pwr1
