Hitachi, Ltd. HA8000/RS110-hHM ssj_ops@100% = 670,220
ssj_ops@100% per JVM = 167,555
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 22, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     668,101
Calibration 2     671,133
Calibration 3     673,289
ssj_ops@calibrated=672,211
100% 99.7% 672,211 670,220
90% 89.9% 604,990 604,637
80% 80.0% 537,769 537,620
70% 70.2% 470,548 472,030
60% 60.1% 403,327 403,725
50% 49.7% 336,106 334,391
40% 40.0% 268,885 268,866
30% 29.8% 201,663 200,262
20% 20.0% 134,442 134,490
10% 9.9% 67,221 66,871
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS110-hHM
Form Factor: 1U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8 core, 2.3GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 2Rx2 PC3L-10600R ECC CL9;slots CPU1_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: DELTA DPS-450UB_A(Hitachi P/N:GQ-BP2360)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5719 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [f,f0,f00,f000]
JVM Instances: 4
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: M2.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-0HKHL5JBL0S.001 166,976
WIN-0HKHL5JBL0S.002 167,111
WIN-0HKHL5JBL0S.003 168,926
WIN-0HKHL5JBL0S.004 167,207
ssj_ops@100% 670,220
ssj_ops@100% per JVM 167,555

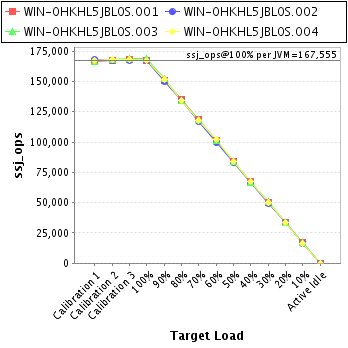

Graph of per-instance results
JVM 'WIN-0HKHL5JBL0S.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,677
Calibration 2     167,188
Calibration 3     168,352
ssj_ops@calibrated=167,770
100% 99.5% 167,770 166,976
90% 89.6% 150,993 150,397
80% 80.5% 134,216 135,118
70% 70.7% 117,439 118,538
60% 60.2% 100,662 100,999
50% 49.9% 83,885 83,639
40% 40.3% 67,108 67,528
30% 30.0% 50,331 50,297
20% 20.2% 33,554 33,960
10% 10.0% 16,777 16,717
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,984
Calibration 2     167,413
Calibration 3     167,593
ssj_ops@calibrated=167,503
100% 99.8% 167,503 167,111
90% 89.6% 150,753 150,115
80% 80.0% 134,003 133,932
70% 70.0% 117,252 117,239
60% 59.4% 100,502 99,502
50% 49.7% 83,752 83,212
40% 39.9% 67,001 66,883
30% 29.5% 50,251 49,377
20% 19.9% 33,501 33,306
10% 9.9% 16,750 16,596
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,057
Calibration 2     168,385
Calibration 3     169,187
ssj_ops@calibrated=168,786
100% 100.1% 168,786 168,926
90% 90.4% 151,907 152,660
80% 79.5% 135,029 134,234
70% 70.1% 118,150 118,391
60% 59.8% 101,272 100,904
50% 49.6% 84,393 83,682
40% 39.7% 67,514 66,998
30% 30.1% 50,636 50,757
20% 19.9% 33,757 33,601
10% 10.1% 16,879 17,008
Active Idle   0 0
Graph of results
JVM 'WIN-0HKHL5JBL0S.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,383
Calibration 2     168,147
Calibration 3     168,157
ssj_ops@calibrated=168,152
100% 99.4% 168,152 167,207
90% 90.1% 151,337 151,465
80% 79.9% 134,522 134,335
70% 70.1% 117,707 117,862
60% 60.8% 100,891 102,320
50% 49.9% 84,076 83,858
40% 40.1% 67,261 67,457
30% 29.6% 50,446 49,831
20% 20.0% 33,630 33,624
10% 9.8% 16,815 16,550
Active Idle   0 0
Graph of results
