SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS210-hHM | SPECpower_ssj2008 = 3,597 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jun 15, 2012 |
| Hardware Availability: | May-2012 | Software Availability: | Dec-2011 | Publication: | Aug 22, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

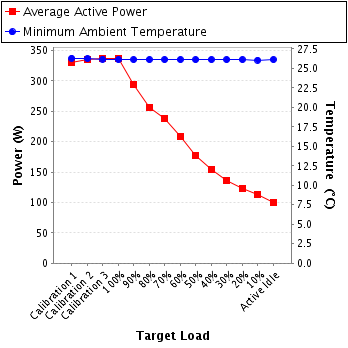

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 330 | 26.3 |
| Calibration 2 | 336 | 26.2 |
| Calibration 3 | 337 | 26.2 |
| 100% | 337 | 26.1 |
| 90% | 294 | 26.1 |
| 80% | 257 | 26.1 |
| 70% | 237 | 26.1 |
| 60% | 209 | 26.1 |
| 50% | 178 | 26.1 |
| 40% | 154 | 26.1 |
| 30% | 136 | 26.1 |
| 20% | 123 | 26.1 |
| 10% | 113 | 26.1 |
| Active Idle | 99.3 | 26.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric Corporation |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Tchnology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow intake |

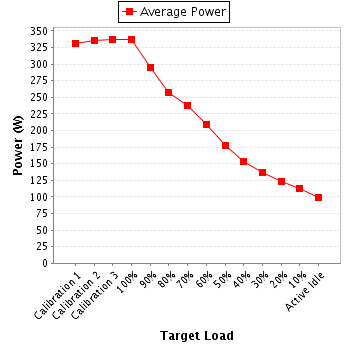

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 200 | 300.0 | 1.67 | 2.0 | 0.988 | 330 | 0.4% |
| Calibration 2 | 200 | 300.0 | 1.70 | 2.0 | 0.988 | 336 | 0.4% |
| Calibration 3 | 200 | 300.0 | 1.71 | 2.0 | 0.989 | 337 | 0.4% |
| 100% | 200 | 300.0 | 1.71 | 2.0 | 0.988 | 337 | 0.4% |
| 90% | 200 | 300.0 | 1.50 | 2.0 | 0.985 | 294 | 0.4% |
| 80% | 200 | 300.0 | 1.31 | 2.0 | 0.981 | 257 | 0.4% |
| 70% | 200 | 300.0 | 1.21 | 1.0 | 0.980 | 237 | 0.4% |
| 60% | 200 | 300.0 | 1.07 | 1.0 | 0.974 | 209 | 0.4% |
| 50% | 200 | 300.0 | 0.917 | 1.0 | 0.970 | 178 | 0.4% |
| 40% | 200 | 300.0 | 0.792 | 1.0 | 0.970 | 154 | 0.4% |
| 30% | 200 | 300.0 | 0.702 | 1.0 | 0.969 | 136 | 0.4% |
| 20% | 200 | 300.0 | 0.637 | 1.0 | 0.966 | 123 | 0.4% |
| 10% | 200 | 300.0 | 0.587 | 1.0 | 0.962 | 113 | 0.5% |
| Active Idle | 200 | 300.0 | 0.519 | 1.0 | 0.957 | 99.3 | 0.5% |
