Acer Incorporated Acer AT350 F2 SPECpower_ssj2008 = 2,464 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 329 23.5
Calibration 2 329 22.2
Calibration 3 328 21.3
100% 327 20.9
90% 308 21.7
80% 276 23.0
70% 240 22.6
60% 221 21.6
50% 201 21.2
40% 182 21.2
30% 165 22.6
20% 150 23.5
10% 135 22.8
Active Idle 98.2 22.1
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 218 300.0 1.54 2.0 0.978 329 0.3%
Calibration 2 217 300.0 1.55 2.0 0.979 329 0.3%
Calibration 3 217 300.0 1.54 2.0 0.979 328 0.3%
100% 217 300.0 1.54 2.0 0.979 327 0.3%
90% 217 300.0 1.45 2.0 0.977 308 0.3%
80% 217 300.0 1.31 2.0 0.975 276 0.4%
70% 217 300.0 1.14 2.0 0.970 240 0.4%
60% 217 300.0 1.05 2.0 0.965 221 0.4%
50% 218 300.0 0.961 2.0 0.961 201 0.5%
40% 218 300.0 0.872 2.0 0.956 182 0.5%
30% 218 300.0 0.793 1.0 0.951 165 0.3%
20% 218 300.0 0.727 1.0 0.946 150 0.4%
10% 219 300.0 0.658 1.0 0.937 135 0.4%
Active Idle 219 300.0 0.492 1.0 0.911 98.2 0.5%

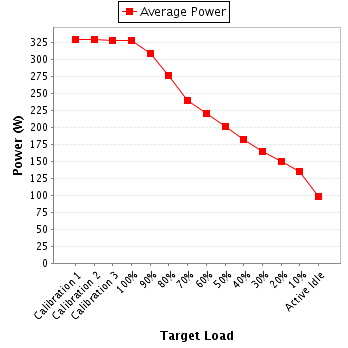

Power details for pwr1
