Acer Incorporated Acer AR380 F2 SPECpower_ssj2008 = 2,705 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jul 11, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 420 23.9
Calibration 2 423 23.4
Calibration 3 423 23.2
100% 409 23.1
90% 378 22.9
80% 324 23.2
70% 296 23.7
60% 273 23.3
50% 245 23.2
40% 218 23.6
30% 190 23.8
20% 167 23.3
10% 147 23.1
Active Idle 103 23.2

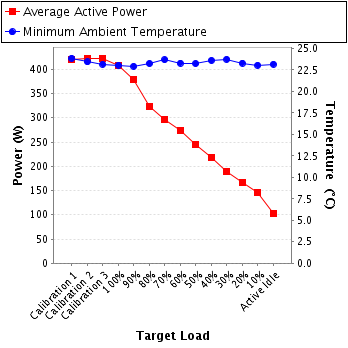

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 1.99 2.0 0.980 420 0.3%
Calibration 2 215 300.0 2.00 2.0 0.980 423 0.3%
Calibration 3 215 300.0 2.00 2.0 0.980 423 0.3%
100% 215 300.0 1.94 2.0 0.980 409 0.3%
90% 216 300.0 1.79 2.0 0.979 378 0.3%
80% 216 300.0 1.54 2.0 0.976 324 0.3%
70% 216 300.0 1.41 2.0 0.973 296 0.3%
60% 216 300.0 1.31 2.0 0.970 273 0.4%
50% 216 300.0 1.18 2.0 0.964 245 0.4%
40% 216 300.0 1.05 2.0 0.959 218 0.4%
30% 216 300.0 0.922 1.0 0.952 190 0.3%
20% 216 300.0 0.816 1.0 0.945 167 0.3%
10% 217 300.0 0.724 1.0 0.935 147 0.4%
Active Idle 217 300.0 0.528 1.0 0.900 103 0.5%
Power details for pwr1
