Acer Incorporated Acer AT350 F2 ssj_ops@100% = 1,365,171
ssj_ops@100% per JVM = 170,646
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 25, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,360,832
Calibration 2     1,367,298
Calibration 3     1,367,196
ssj_ops@calibrated=1,367,247
100% 99.8% 1,367,247 1,365,171
90% 90.1% 1,230,522 1,232,312
80% 79.9% 1,093,798 1,091,894
70% 70.3% 957,073 960,656
60% 59.9% 820,348 819,228
50% 50.0% 683,624 683,232
40% 40.0% 546,899 546,751
30% 29.9% 410,174 408,779
20% 19.9% 273,449 272,589
10% 10.0% 136,725 136,349
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F2
Form Factor: Tower
CPU Name: Intel Xeon E5-2665
CPU Characteristics: 8 core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.1GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 16 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600E; Slots 1A,2A,1B,2B,1C,2C,1D,2D and 1E,2E,1F,2F,1G,2G,1H,2H are populated
Power Supply Quantity and Rating (W): 1 x 920
Power Supply Details: Acer P/N SC.9201S.002
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD (P/N KH.30007.007)
Disk Controller: LSI MegaRAID SAS 9260-8i
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26
JVM Command-line Options: -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000, 0F000000, F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: D19
Management Firmware Version: 0.12
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-11AFDVMM189.001 171,358
WIN-11AFDVMM189.002 170,580
WIN-11AFDVMM189.003 169,447
WIN-11AFDVMM189.004 169,803
WIN-11AFDVMM189.005 169,821
WIN-11AFDVMM189.006 172,425
WIN-11AFDVMM189.007 170,758
WIN-11AFDVMM189.008 170,980
ssj_ops@100% 1,365,171
ssj_ops@100% per JVM 170,646

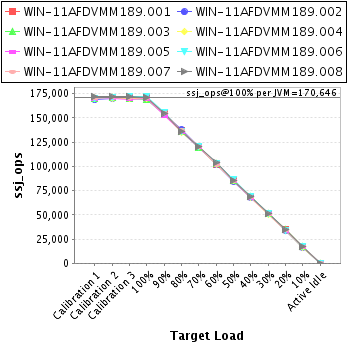

Graph of per-instance results
JVM 'WIN-11AFDVMM189.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,998
Calibration 2     171,202
Calibration 3     171,717
ssj_ops@calibrated=171,459
100% 99.9% 171,459 171,358
90% 90.0% 154,314 154,330
80% 79.9% 137,168 136,998
70% 70.1% 120,022 120,242
60% 59.7% 102,876 102,350
50% 50.0% 85,730 85,721
40% 40.1% 68,584 68,839
30% 30.1% 51,438 51,614
20% 20.1% 34,292 34,384
10% 10.2% 17,146 17,468
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,635
Calibration 2     170,528
Calibration 3     170,646
ssj_ops@calibrated=170,587
100% 100.0% 170,587 170,580
90% 90.0% 153,528 153,552
80% 80.8% 136,470 137,870
70% 70.4% 119,411 120,104
60% 59.5% 102,352 101,428
50% 49.7% 85,294 84,819
40% 40.0% 68,235 68,194
30% 30.2% 51,176 51,594
20% 19.7% 34,117 33,654
10% 9.8% 17,059 16,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,356
Calibration 2     171,011
Calibration 3     170,449
ssj_ops@calibrated=170,730
100% 99.2% 170,730 169,447
90% 89.9% 153,657 153,536
80% 79.7% 136,584 136,040
70% 70.0% 119,511 119,440
60% 60.1% 102,438 102,682
50% 49.9% 85,365 85,124
40% 40.5% 68,292 69,104
30% 30.2% 51,219 51,612
20% 20.5% 34,146 34,983
10% 10.0% 17,073 17,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,028
Calibration 2     170,155
Calibration 3     170,514
ssj_ops@calibrated=170,334
100% 99.7% 170,334 169,803
90% 90.1% 153,301 153,414
80% 79.5% 136,267 135,410
70% 70.5% 119,234 120,050
60% 60.1% 102,200 102,332
50% 50.1% 85,167 85,257
40% 40.0% 68,134 68,147
30% 29.6% 51,100 50,465
20% 19.9% 34,067 33,816
10% 9.8% 17,033 16,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,594
Calibration 2     170,562
Calibration 3     169,352
ssj_ops@calibrated=169,957
100% 99.9% 169,957 169,821
90% 89.7% 152,961 152,472
80% 80.0% 135,966 135,940
70% 70.5% 118,970 119,772
60% 60.6% 101,974 102,921
50% 50.1% 84,978 85,086
40% 39.8% 67,983 67,572
30% 30.0% 50,987 50,969
20% 19.6% 33,991 33,387
10% 10.0% 16,996 16,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,101
Calibration 2     170,915
Calibration 3     171,908
ssj_ops@calibrated=171,411
100% 100.6% 171,411 172,425
90% 90.6% 154,270 155,338
80% 79.6% 137,129 136,407
70% 70.3% 119,988 120,449
60% 59.8% 102,847 102,527
50% 50.6% 85,706 86,653
40% 40.0% 68,565 68,533
30% 29.7% 51,423 50,929
20% 19.8% 34,282 33,907
10% 10.0% 17,141 17,177
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,221
Calibration 2     171,230
Calibration 3     170,932
ssj_ops@calibrated=171,081
100% 99.8% 171,081 170,758
90% 90.4% 153,973 154,720
80% 80.1% 136,865 137,030
70% 70.4% 119,757 120,483
60% 59.3% 102,648 101,486
50% 49.6% 85,540 84,906
40% 39.7% 68,432 67,961
30% 29.6% 51,324 50,623
20% 19.9% 34,216 34,112
10% 10.0% 17,108 17,077
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-11AFDVMM189.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,900
Calibration 2     171,695
Calibration 3     171,679
ssj_ops@calibrated=171,687
100% 99.6% 171,687 170,980
90% 90.3% 154,518 154,950
80% 79.3% 137,349 136,199
70% 70.0% 120,181 120,116
60% 60.3% 103,012 103,502
50% 49.9% 85,843 85,666
40% 39.8% 68,675 68,402
30% 29.7% 51,506 50,973
20% 20.0% 34,337 34,345
10% 9.9% 17,169 17,046
Active Idle   0 0

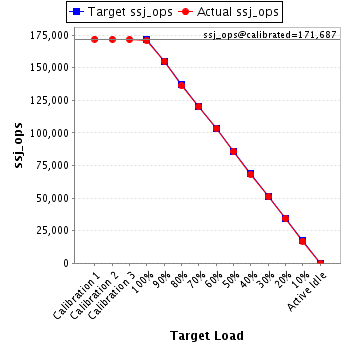

Graph of results
See the JVM Instance Performance Report for additional details.
