Acer Incorporated Acer AT350 F2 SPECpower_ssj2008 = 2,824 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 25, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 416 22.8
Calibration 2 415 21.8
Calibration 3 415 21.1
100% 414 20.8
90% 386 21.6
80% 325 21.4
70% 282 21.2
60% 255 21.0
50% 229 20.8
40% 202 20.8
30% 177 20.8
20% 156 21.3
10% 138 22.2
Active Idle 96.6 22.1

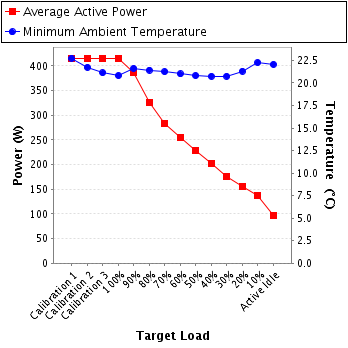

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 1.97 2.0 0.983 416 0.3%
Calibration 2 215 300.0 1.97 2.0 0.983 415 0.3%
Calibration 3 215 300.0 1.96 2.0 0.983 415 0.3%
100% 215 300.0 1.96 2.0 0.983 414 0.3%
90% 215 300.0 1.83 2.0 0.982 386 0.3%
80% 216 300.0 1.54 2.0 0.979 325 0.3%
70% 216 300.0 1.34 2.0 0.975 282 0.4%
60% 216 300.0 1.22 2.0 0.971 255 0.4%
50% 216 300.0 1.10 2.0 0.966 229 0.4%
40% 216 300.0 0.973 2.0 0.961 202 0.5%
30% 216 300.0 0.855 1.0 0.955 177 0.3%
20% 217 300.0 0.760 1.0 0.949 156 0.4%
10% 217 300.0 0.678 1.0 0.942 138 0.4%
Active Idle 217 300.0 0.489 1.0 0.913 96.6 0.5%

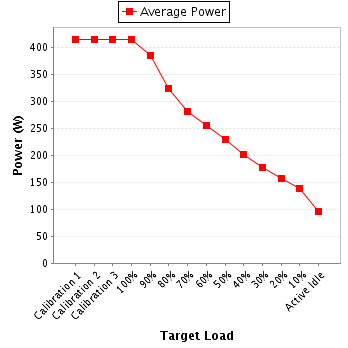

Power details for pwr1
