Huawei Technologies Co., Ltd RH2288 V2 | ssj_ops@100% = 968,689 ssj_ops@100% per JVM = 161,448 |
||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Jun 2, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | Jun 28, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 966,762 | ||
Calibration 2 | 969,759 | ||
Calibration 3 | 967,164 | ||
ssj_ops@calibrated=968,461 | |||
100% | 100.0% | 968,461 | 968,689 |
90% | 89.6% | 871,615 | 867,444 |
80% | 80.2% | 774,769 | 776,988 |
70% | 69.9% | 677,923 | 677,122 |
60% | 60.1% | 581,077 | 581,668 |
50% | 50.0% | 484,231 | 483,967 |
40% | 40.0% | 387,385 | 386,987 |
30% | 30.2% | 290,538 | 292,488 |
20% | 19.8% | 193,692 | 192,118 |
10% | 10.0% | 96,846 | 97,109 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Huawei Technologies Co., Ltd |
Model: | RH2288 V2 |
Form Factor: | 2U |
CPU Name: | Intel Xeon E5-2630 |
CPU Characteristics: | 6-Core, 2.30 GHz, 15 MB L3 Cache (Turbo Boost Technology up to 2.8 GHz) |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4 GB |
Memory Details: | 4GB 2Rx8 PC3L-10600R ECC |
Power Supply Quantity and Rating (W): | 1 x 460 |
Power Supply Details: | Huawei S/N:1138000239 |
Disk Drive: | 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver enabled in OS |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
OS Version: | R2 SP1 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
JVM Command-line Options: | -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1600 |
JVM Maximum Heap (MB): | 1600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | V016 |
Management Firmware Version: | 3.02 |
Workload Version: | SSJ 1.2.9 |
Director Location: | Controller |
Other Software: | None |

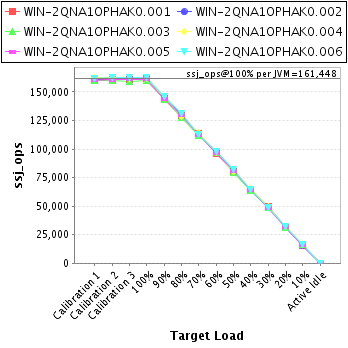

JVM Instance | ssj_ops@100% |
---|---|
WIN-2QNA1OPHAK0.001 | 161,427 |
WIN-2QNA1OPHAK0.002 | 161,466 |
WIN-2QNA1OPHAK0.003 | 159,712 |
WIN-2QNA1OPHAK0.004 | 162,113 |
WIN-2QNA1OPHAK0.005 | 161,116 |
WIN-2QNA1OPHAK0.006 | 162,855 |
ssj_ops@100% | 968,689 |
ssj_ops@100% per JVM | 161,448 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 160,997 | ||
Calibration 2 | 161,138 | ||
Calibration 3 | 160,825 | ||
ssj_ops@calibrated=160,982 | |||
100% | 100.3% | 160,982 | 161,427 |
90% | 89.9% | 144,883 | 144,704 |
80% | 80.5% | 128,785 | 129,533 |
70% | 70.6% | 112,687 | 113,645 |
60% | 59.7% | 96,589 | 96,061 |
50% | 50.0% | 80,491 | 80,437 |
40% | 40.3% | 64,393 | 64,853 |
30% | 30.8% | 48,294 | 49,661 |
20% | 19.6% | 32,196 | 31,564 |
10% | 9.9% | 16,098 | 15,867 |
Active Idle | 0 | 0 |

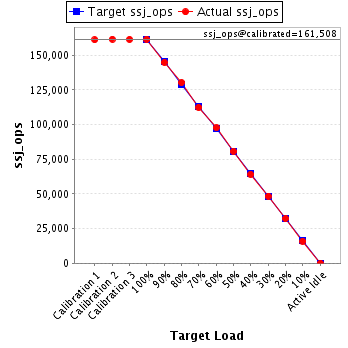

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 161,103 | ||
Calibration 2 | 161,570 | ||
Calibration 3 | 161,447 | ||
ssj_ops@calibrated=161,508 | |||
100% | 100.0% | 161,508 | 161,466 |
90% | 89.7% | 145,357 | 144,825 |
80% | 80.7% | 129,207 | 130,271 |
70% | 69.6% | 113,056 | 112,329 |
60% | 60.5% | 96,905 | 97,679 |
50% | 50.0% | 80,754 | 80,825 |
40% | 39.7% | 64,603 | 64,061 |
30% | 30.0% | 48,452 | 48,419 |
20% | 20.0% | 32,302 | 32,253 |
10% | 9.9% | 16,151 | 15,977 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 160,235 | ||
Calibration 2 | 160,430 | ||
Calibration 3 | 159,102 | ||
ssj_ops@calibrated=159,766 | |||
100% | 100.0% | 159,766 | 159,712 |
90% | 89.6% | 143,789 | 143,073 |
80% | 79.9% | 127,813 | 127,682 |
70% | 69.9% | 111,836 | 111,729 |
60% | 60.5% | 95,859 | 96,580 |
50% | 49.7% | 79,883 | 79,380 |
40% | 39.9% | 63,906 | 63,721 |
30% | 30.3% | 47,930 | 48,450 |
20% | 19.7% | 31,953 | 31,509 |
10% | 10.1% | 15,977 | 16,118 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 162,319 | ||
Calibration 2 | 162,929 | ||
Calibration 3 | 161,888 | ||
ssj_ops@calibrated=162,409 | |||
100% | 99.8% | 162,409 | 162,113 |
90% | 89.1% | 146,168 | 144,770 |
80% | 79.2% | 129,927 | 128,704 |
70% | 70.4% | 113,686 | 114,309 |
60% | 59.7% | 97,445 | 96,888 |
50% | 49.4% | 81,204 | 80,283 |
40% | 40.3% | 64,963 | 65,384 |
30% | 30.4% | 48,723 | 49,341 |
20% | 20.1% | 32,482 | 32,575 |
10% | 10.3% | 16,241 | 16,773 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 160,110 | ||
Calibration 2 | 160,764 | ||
Calibration 3 | 161,181 | ||
ssj_ops@calibrated=160,972 | |||
100% | 100.1% | 160,972 | 161,116 |
90% | 89.3% | 144,875 | 143,813 |
80% | 80.6% | 128,778 | 129,736 |
70% | 69.8% | 112,681 | 112,383 |
60% | 59.8% | 96,583 | 96,249 |
50% | 50.2% | 80,486 | 80,846 |
40% | 40.1% | 64,389 | 64,562 |
30% | 29.8% | 48,292 | 47,977 |
20% | 19.7% | 32,194 | 31,729 |
10% | 9.7% | 16,097 | 15,675 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 161,998 | ||
Calibration 2 | 162,928 | ||
Calibration 3 | 162,722 | ||
ssj_ops@calibrated=162,825 | |||
100% | 100.0% | 162,825 | 162,855 |
90% | 89.8% | 146,542 | 146,260 |
80% | 80.5% | 130,260 | 131,062 |
70% | 69.2% | 113,977 | 112,725 |
60% | 60.3% | 97,695 | 98,212 |
50% | 50.5% | 81,412 | 82,195 |
40% | 39.6% | 65,130 | 64,406 |
30% | 29.9% | 48,847 | 48,640 |
20% | 20.0% | 32,565 | 32,488 |
10% | 10.3% | 16,282 | 16,700 |
Active Idle | 0 | 0 |
