Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 3,990 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Jun 2, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | Jun 28, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

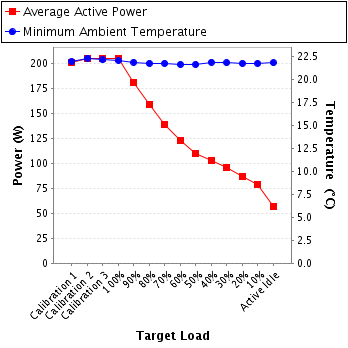

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 200 | 21.9 |
Calibration 2 | 205 | 22.3 |
Calibration 3 | 205 | 22.1 |
100% | 205 | 22.1 |
90% | 181 | 21.9 |
80% | 159 | 21.8 |
70% | 139 | 21.8 |
60% | 123 | 21.6 |
50% | 109 | 21.6 |
40% | 102 | 21.9 |
30% | 95.6 | 21.8 |
20% | 87.1 | 21.8 |
10% | 78.3 | 21.8 |
Active Idle | 56.2 | 21.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B11004997-0007 |
Date of Calibration: | 20-Jun-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | The Temperature@lert-TM-STD30 used a 2 meters USB extension cable to connect to the controller. The Temperature@lert probe was placed in front of the main airflow inlet of the SUT less than 50mm. |

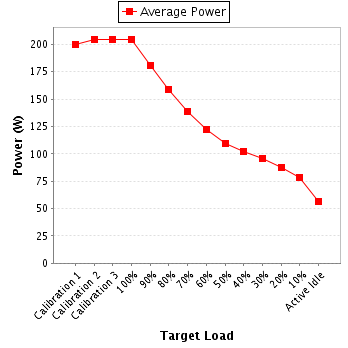

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 226 | 300.0 | 0.905 | 1.0 | 0.980 | 200 | 0.6% |
Calibration 2 | 226 | 300.0 | 0.925 | 1.0 | 0.981 | 205 | 0.6% |
Calibration 3 | 225 | 300.0 | 0.925 | 1.0 | 0.981 | 205 | 0.6% |
100% | 224 | 300.0 | 0.929 | 1.0 | 0.981 | 205 | 0.6% |
90% | 224 | 300.0 | 0.825 | 1.0 | 0.978 | 181 | 0.6% |
80% | 224 | 300.0 | 0.719 | 1.0 | 0.987 | 159 | 0.6% |
70% | 224 | 300.0 | 0.630 | 1.0 | 0.986 | 139 | 0.6% |
60% | 223 | 300.0 | 0.560 | 1.0 | 0.982 | 123 | 0.7% |
50% | 222 | 300.0 | 0.503 | 0.5 | 0.978 | 109 | 0.6% |
40% | 222 | 300.0 | 0.473 | 0.5 | 0.975 | 102 | 0.6% |
30% | 223 | 300.0 | 0.442 | 0.5 | 0.970 | 95.6 | 0.6% |
20% | 223 | 300.0 | 0.405 | 0.5 | 0.963 | 87.1 | 0.6% |
10% | 226 | 300.0 | 0.364 | 0.5 | 0.953 | 78.3 | 0.7% |
Active Idle | 226 | 300.0 | 0.260 | 0.5 | 0.956 | 56.2 | 0.7% |
