SPECpower_ssj2008 Host 'WIN-3N5M23NE6O8' Performance Report

SPECpower_ssj2008

Host 'WIN-3N5M23NE6O8' Performance Report

Huawei Technologies Co., Ltd XH320 V2			ssj_ops@100% = 1,334,311 ssj_ops@100% per JVM = 166,789
Test Sponsor:	Huawei Technologies Co., Ltd	SPEC License #:	3175	Test Method:	Multi Node
Tested By:	Huawei Technologies Co., Ltd	Test Location:	Shenzhen, Guangdong, China	Test Date:	Jun 4, 2012
Hardware Availability:	May-2012	Software Availability:	Dec-2011	Publication:	Jun 28, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,339,347
Calibration 2			1,336,196
Calibration 3			1,335,540
ssj_ops@calibrated=1,335,868
100%	99.9%	1,335,868	1,334,311
90%	90.0%	1,202,281	1,202,336
80%	79.6%	1,068,694	1,063,729
70%	70.2%	935,107	938,249
60%	60.0%	801,521	801,601
50%	50.0%	667,934	667,486
40%	40.0%	534,347	534,151
30%	30.0%	400,760	400,562
20%	20.0%	267,174	267,180
10%	10.0%	133,587	133,992
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	None

Hardware
Hardware Vendor:	Huawei Technologies Co., Ltd
Model:	XH320 V2
Form Factor:	1U
CPU Name:	Intel Xeon E5-2470
CPU Characteristics:	8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.1 GHz)
CPU Frequency (MHz):	2300
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	4 x 4 GB
Memory Details:	4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver enabled in OS
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version:	R2 SP1
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options:	-server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances:	8
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	V020
Management Firmware Version:	3.05
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Hardware prefetcher -disabled.
Adjacent Cache Line Prefetch -disabled.
DCU Streamer Prefetcher -disabled.
Intel HT Technology -enabled.
Turbo mode -enabled.
C-state -enabled.
Power Mode -Efficiency.
QPI Link Speed -6.4GT/s.
Memory Frequency Limit -1333MHz.
Demand Scrubbing -disabled.
USB configuration EHCI 2 -disabled.

Management Firmware Settings

none

System Under Test Notes

The test was started via Remote Desktop.
Minimum Processor State: 0%.
Maximum Processor State: 100%.
Turn off hard disk after 1 minute .
Each JVM instance was affinitized to four logical processors.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.

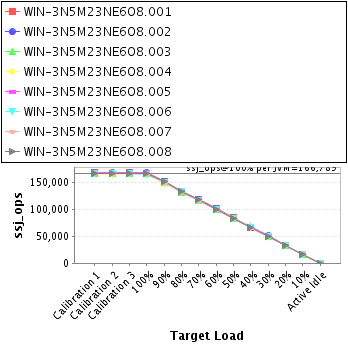

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-3N5M23NE6O8.001	166,937
WIN-3N5M23NE6O8.002	168,319
WIN-3N5M23NE6O8.003	166,232
WIN-3N5M23NE6O8.004	165,606
WIN-3N5M23NE6O8.005	168,646
WIN-3N5M23NE6O8.006	165,523
WIN-3N5M23NE6O8.007	166,282
WIN-3N5M23NE6O8.008	166,766
ssj_ops@100%	1,334,311
ssj_ops@100% per JVM	166,789

JVM 'WIN-3N5M23NE6O8.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			167,882
Calibration 2			167,468
Calibration 3			167,570
ssj_ops@calibrated=167,519
100%	99.7%	167,519	166,937
90%	90.2%	150,767	151,097
80%	79.9%	134,015	133,765
70%	70.8%	117,263	118,680
60%	60.4%	100,511	101,221
50%	50.7%	83,760	84,970
40%	39.9%	67,008	66,902
30%	29.5%	50,256	49,492
20%	20.1%	33,504	33,603
10%	10.2%	16,752	17,074
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			168,395
Calibration 2			168,407
Calibration 3			168,283
ssj_ops@calibrated=168,345
100%	100.0%	168,345	168,319
90%	89.9%	151,510	151,414
80%	79.5%	134,676	133,851
70%	70.3%	117,841	118,344
60%	60.7%	101,007	102,213
50%	49.9%	84,172	83,967
40%	40.0%	67,338	67,255
30%	30.2%	50,503	50,898
20%	19.8%	33,669	33,359
10%	10.0%	16,834	16,838
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,501
Calibration 2			166,106
Calibration 3			165,642
ssj_ops@calibrated=165,874
100%	100.2%	165,874	166,232
90%	90.0%	149,286	149,269
80%	78.9%	132,699	130,940
70%	70.2%	116,112	116,403
60%	59.7%	99,524	99,021
50%	50.0%	82,937	82,911
40%	40.6%	66,350	67,371
30%	30.0%	49,762	49,744
20%	20.0%	33,175	33,136
10%	9.9%	16,587	16,395
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			167,077
Calibration 2			165,540
Calibration 3			165,667
ssj_ops@calibrated=165,604
100%	100.0%	165,604	165,606
90%	89.5%	149,043	148,238
80%	79.9%	132,483	132,381
70%	70.0%	115,923	115,937
60%	59.7%	99,362	98,870
50%	50.2%	82,802	83,174
40%	40.1%	66,241	66,430
30%	29.8%	49,681	49,364
20%	20.0%	33,121	33,156
10%	10.2%	16,560	16,817
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			168,481
Calibration 2			168,874
Calibration 3			168,042
ssj_ops@calibrated=168,458
100%	100.1%	168,458	168,646
90%	90.2%	151,612	151,964
80%	79.5%	134,766	133,998
70%	69.8%	117,921	117,530
60%	59.9%	101,075	100,939
50%	49.8%	84,229	83,872
40%	40.2%	67,383	67,764
30%	30.2%	50,537	50,896
20%	19.9%	33,692	33,546
10%	9.7%	16,846	16,372
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,867
Calibration 2			166,435
Calibration 3			166,468
ssj_ops@calibrated=166,451
100%	99.4%	166,451	165,523
90%	89.9%	149,806	149,638
80%	79.7%	133,161	132,602
70%	70.2%	116,516	116,881
60%	60.0%	99,871	99,832
50%	49.4%	83,226	82,259
40%	39.6%	66,581	65,883
30%	30.4%	49,935	50,524
20%	20.0%	33,290	33,335
10%	9.9%	16,645	16,524
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			166,779
Calibration 2			166,248
Calibration 3			166,590
ssj_ops@calibrated=166,419
100%	99.9%	166,419	166,282
90%	89.9%	149,777	149,545
80%	79.4%	133,135	132,173
70%	70.0%	116,493	116,446
60%	59.7%	99,851	99,367
50%	49.6%	83,209	82,601
40%	39.8%	66,568	66,203
30%	29.9%	49,926	49,730
20%	20.0%	33,284	33,248
10%	10.1%	16,642	16,845
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3N5M23NE6O8.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			167,366
Calibration 2			167,118
Calibration 3			167,278
ssj_ops@calibrated=167,198
100%	99.7%	167,198	166,766
90%	90.4%	150,478	151,171
80%	80.2%	133,758	134,019
70%	70.6%	117,038	118,026
60%	59.9%	100,319	100,138
50%	50.1%	83,599	83,734
40%	39.7%	66,879	66,345
30%	29.9%	50,159	49,914
20%	20.2%	33,440	33,798
10%	10.2%	16,720	17,128
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
