Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,228,464
ssj_ops@100% per JVM = 139,279
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 29, 2012
Hardware Availability: Sep-2011 Software Availability: Jun-2011 Publication: Jun 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,208,391
Calibration 2     2,234,145
Calibration 3     2,234,860
ssj_ops@calibrated=2,234,503
100% 99.7% 2,234,503 2,228,464
90% 90.1% 2,011,052 2,013,047
80% 79.7% 1,787,602 1,781,802
70% 69.9% 1,564,152 1,562,427
60% 59.9% 1,340,702 1,339,199
50% 50.0% 1,117,251 1,117,001
40% 39.9% 893,801 892,591
30% 30.1% 670,351 673,111
20% 20.1% 446,901 448,055
10% 10.0% 223,450 222,758
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.20 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 32 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R; slots 1A, 1B, 2A, 2B, 3A, 3B, 4A and 4B populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 2 x 300GB 15K RPM SAS 3.5" HDD, Acer part #KH.300W1.025
Disk Controller: Flex IO USAS2H8iR add-on SAS RAID controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20110619_85080 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KK33POLHKCU.001 140,256
WIN-KK33POLHKCU.002 140,860
WIN-KK33POLHKCU.003 140,488
WIN-KK33POLHKCU.004 139,410
WIN-KK33POLHKCU.005 140,066
WIN-KK33POLHKCU.006 138,240
WIN-KK33POLHKCU.007 137,881
WIN-KK33POLHKCU.008 140,224
WIN-KK33POLHKCU.009 140,012
WIN-KK33POLHKCU.010 139,108
WIN-KK33POLHKCU.011 141,351
WIN-KK33POLHKCU.012 139,835
WIN-KK33POLHKCU.013 135,359
WIN-KK33POLHKCU.014 138,185
WIN-KK33POLHKCU.015 140,022
WIN-KK33POLHKCU.016 137,167
ssj_ops@100% 2,228,464
ssj_ops@100% per JVM 139,279
Graph of per-instance results

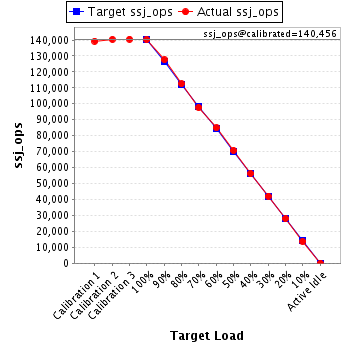

JVM 'WIN-KK33POLHKCU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,329
Calibration 2     140,385
Calibration 3     140,526
ssj_ops@calibrated=140,456
100% 99.9% 140,456 140,256
90% 90.8% 126,410 127,593
80% 80.1% 112,364 112,467
70% 69.5% 98,319 97,646
60% 60.5% 84,273 84,932
50% 50.4% 70,228 70,781
40% 40.0% 56,182 56,248
30% 30.0% 42,137 42,136
20% 20.0% 28,091 28,027
10% 9.8% 14,046 13,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,844
Calibration 2     139,888
Calibration 3     141,379
ssj_ops@calibrated=140,634
100% 100.2% 140,634 140,860
90% 90.2% 126,570 126,888
80% 79.5% 112,507 111,842
70% 69.7% 98,444 98,088
60% 60.2% 84,380 84,647
50% 50.1% 70,317 70,518
40% 40.3% 56,253 56,728
30% 30.2% 42,190 42,457
20% 20.0% 28,127 28,190
10% 10.2% 14,063 14,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,369
Calibration 2     141,379
Calibration 3     141,775
ssj_ops@calibrated=141,577
100% 99.2% 141,577 140,488
90% 89.9% 127,419 127,218
80% 79.5% 113,262 112,603
70% 69.8% 99,104 98,800
60% 59.6% 84,946 84,426
50% 50.0% 70,788 70,746
40% 39.9% 56,631 56,547
30% 29.7% 42,473 42,091
20% 20.4% 28,315 28,848
10% 10.2% 14,158 14,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,644
Calibration 2     139,384
Calibration 3     140,181
ssj_ops@calibrated=139,782
100% 99.7% 139,782 139,410
90% 90.7% 125,804 126,786
80% 79.4% 111,826 110,978
70% 70.6% 97,848 98,649
60% 60.3% 83,869 84,317
50% 49.1% 69,891 68,654
40% 39.8% 55,913 55,588
30% 30.3% 41,935 42,357
20% 20.2% 27,956 28,288
10% 9.9% 13,978 13,803
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,914
Calibration 2     140,340
Calibration 3     139,760
ssj_ops@calibrated=140,050
100% 100.0% 140,050 140,066
90% 90.0% 126,045 126,044
80% 79.8% 112,040 111,775
70% 69.6% 98,035 97,452
60% 59.1% 84,030 82,757
50% 50.2% 70,025 70,269
40% 40.2% 56,020 56,362
30% 30.0% 42,015 41,972
20% 20.3% 28,010 28,382
10% 9.9% 14,005 13,835
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,314
Calibration 2     139,521
Calibration 3     139,050
ssj_ops@calibrated=139,286
100% 99.2% 139,286 138,240
90% 89.8% 125,357 125,080
80% 79.6% 111,428 110,840
70% 69.9% 97,500 97,325
60% 59.7% 83,571 83,223
50% 49.6% 69,643 69,109
40% 39.1% 55,714 54,490
30% 30.1% 41,786 41,916
20% 19.7% 27,857 27,409
10% 9.9% 13,929 13,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,281
Calibration 2     139,001
Calibration 3     138,066
ssj_ops@calibrated=138,533
100% 99.5% 138,533 137,881
90% 89.5% 124,680 123,961
80% 80.3% 110,827 111,263
70% 70.0% 96,973 96,966
60% 59.9% 83,120 82,950
50% 50.2% 69,267 69,568
40% 39.8% 55,413 55,096
30% 30.2% 41,560 41,859
20% 19.8% 27,707 27,405
10% 10.0% 13,853 13,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,922
Calibration 2     140,490
Calibration 3     140,905
ssj_ops@calibrated=140,698
100% 99.7% 140,698 140,224
90% 89.2% 126,628 125,528
80% 79.8% 112,558 112,345
70% 70.2% 98,488 98,798
60% 59.9% 84,419 84,236
50% 50.0% 70,349 70,389
40% 40.4% 56,279 56,783
30% 30.2% 42,209 42,557
20% 20.4% 28,140 28,672
10% 10.0% 14,070 14,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,432
Calibration 2     141,298
Calibration 3     140,776
ssj_ops@calibrated=141,037
100% 99.3% 141,037 140,012
90% 89.8% 126,933 126,679
80% 79.3% 112,829 111,775
70% 70.4% 98,726 99,221
60% 59.6% 84,622 84,125
50% 49.8% 70,518 70,174
40% 39.6% 56,415 55,897
30% 30.1% 42,311 42,518
20% 19.8% 28,207 27,994
10% 9.7% 14,104 13,660
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,935
Calibration 2     140,212
Calibration 3     140,577
ssj_ops@calibrated=140,395
100% 99.1% 140,395 139,108
90% 90.8% 126,355 127,441
80% 79.8% 112,316 112,076
70% 70.0% 98,276 98,285
60% 60.1% 84,237 84,416
50% 50.4% 70,197 70,814
40% 39.7% 56,158 55,775
30% 30.3% 42,118 42,480
20% 19.9% 28,079 27,873
10% 10.0% 14,039 14,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,404
Calibration 2     139,607
Calibration 3     141,281
ssj_ops@calibrated=140,444
100% 100.6% 140,444 141,351
90% 89.3% 126,399 125,464
80% 81.0% 112,355 113,795
70% 69.5% 98,311 97,668
60% 60.2% 84,266 84,565
50% 50.1% 70,222 70,415
40% 40.7% 56,177 57,200
30% 29.9% 42,133 42,025
20% 20.2% 28,089 28,358
10% 10.2% 14,044 14,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,390
Calibration 2     140,062
Calibration 3     139,922
ssj_ops@calibrated=139,992
100% 99.9% 139,992 139,835
90% 90.0% 125,993 125,972
80% 79.7% 111,994 111,633
70% 70.1% 97,994 98,142
60% 59.6% 83,995 83,431
50% 49.9% 69,996 69,888
40% 39.8% 55,997 55,742
30% 30.3% 41,998 42,397
20% 20.0% 27,998 27,983
10% 9.9% 13,999 13,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,512
Calibration 2     136,203
Calibration 3     135,904
ssj_ops@calibrated=136,053
100% 99.5% 136,053 135,359
90% 90.8% 122,448 123,530
80% 79.6% 108,843 108,239
70% 70.4% 95,237 95,818
60% 59.8% 81,632 81,426
50% 50.1% 68,027 68,207
40% 39.8% 54,421 54,130
30% 30.2% 40,816 41,034
20% 19.8% 27,211 26,990
10% 10.2% 13,605 13,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,844
Calibration 2     138,781
Calibration 3     137,996
ssj_ops@calibrated=138,389
100% 99.9% 138,389 138,185
90% 90.4% 124,550 125,095
80% 79.7% 110,711 110,270
70% 69.7% 96,872 96,417
60% 60.2% 83,033 83,281
50% 50.0% 69,194 69,214
40% 40.2% 55,355 55,668
30% 30.2% 41,517 41,835
20% 20.3% 27,678 28,118
10% 9.8% 13,839 13,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,113
Calibration 2     140,086
Calibration 3     139,723
ssj_ops@calibrated=139,905
100% 100.1% 139,905 140,022
90% 90.0% 125,914 125,953
80% 79.0% 111,924 110,525
70% 69.9% 97,933 97,793
60% 59.6% 83,943 83,452
50% 50.3% 69,952 70,323
40% 39.8% 55,962 55,653
30% 30.0% 41,971 41,996
20% 20.2% 27,981 28,211
10% 10.1% 13,990 14,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KK33POLHKCU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,145
Calibration 2     137,508
Calibration 3     137,038
ssj_ops@calibrated=137,273
100% 99.9% 137,273 137,167
90% 90.2% 123,546 123,813
80% 79.7% 109,819 109,378
70% 69.5% 96,091 95,360
60% 60.5% 82,364 83,015
50% 49.5% 68,637 67,932
40% 39.8% 54,909 54,685
30% 30.2% 41,182 41,481
20% 19.9% 27,455 27,307
10% 9.8% 13,727 13,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
