Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,307,328
ssj_ops@100% per JVM = 144,208
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 17, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2010 Publication: Jun 21, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,291,425
Calibration 2     2,320,090
Calibration 3     2,320,617
ssj_ops@calibrated=2,320,354
100% 99.4% 2,320,354 2,307,328
90% 90.1% 2,088,318 2,090,853
80% 79.9% 1,856,283 1,854,224
70% 70.0% 1,624,248 1,624,087
60% 60.0% 1,392,212 1,393,191
50% 50.0% 1,160,177 1,159,756
40% 39.9% 928,141 926,152
30% 29.9% 696,106 694,502
20% 20.0% 464,071 464,142
10% 9.9% 232,035 229,432
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6278
CPU Characteristics: 16 cores, 2.40 GHz (AMD Turbo CORE technology up to 3.3 GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-JGE2L637AC6.001 144,329
WIN-JGE2L637AC6.002 142,232
WIN-JGE2L637AC6.003 144,700
WIN-JGE2L637AC6.004 144,437
WIN-JGE2L637AC6.005 146,946
WIN-JGE2L637AC6.006 146,046
WIN-JGE2L637AC6.007 144,899
WIN-JGE2L637AC6.008 146,396
WIN-JGE2L637AC6.009 143,376
WIN-JGE2L637AC6.010 144,762
WIN-JGE2L637AC6.011 144,568
WIN-JGE2L637AC6.012 144,785
WIN-JGE2L637AC6.013 145,857
WIN-JGE2L637AC6.014 139,600
WIN-JGE2L637AC6.015 143,405
WIN-JGE2L637AC6.016 140,990
ssj_ops@100% 2,307,328
ssj_ops@100% per JVM 144,208

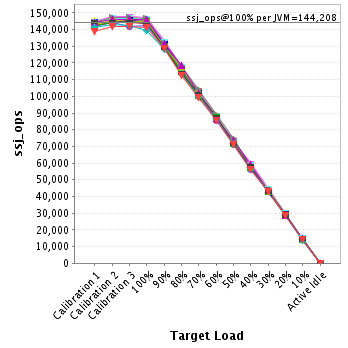

Graph of per-instance results
JVM 'WIN-JGE2L637AC6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,994
Calibration 2     145,321
Calibration 3     145,265
ssj_ops@calibrated=145,293
100% 99.3% 145,293 144,329
90% 91.2% 130,764 132,508
80% 79.7% 116,234 115,830
70% 70.8% 101,705 102,823
60% 60.1% 87,176 87,264
50% 50.2% 72,646 72,905
40% 39.8% 58,117 57,878
30% 29.7% 43,588 43,166
20% 20.2% 29,059 29,345
10% 9.9% 14,529 14,395
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,942
Calibration 2     144,021
Calibration 3     141,773
ssj_ops@calibrated=142,897
100% 99.5% 142,897 142,232
90% 90.5% 128,607 129,358
80% 80.1% 114,317 114,522
70% 70.1% 100,028 100,215
60% 59.8% 85,738 85,465
50% 49.9% 71,448 71,304
40% 39.4% 57,159 56,350
30% 30.2% 42,869 43,202
20% 19.8% 28,579 28,336
10% 10.2% 14,290 14,616
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,602
Calibration 2     146,361
Calibration 3     147,024
ssj_ops@calibrated=146,693
100% 98.6% 146,693 144,700
90% 89.7% 132,023 131,615
80% 79.3% 117,354 116,307
70% 70.5% 102,685 103,362
60% 59.4% 88,016 87,104
50% 50.3% 73,346 73,714
40% 39.8% 58,677 58,454
30% 30.0% 44,008 44,074
20% 20.3% 29,339 29,798
10% 9.9% 14,669 14,487
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,150
Calibration 2     144,087
Calibration 3     145,131
ssj_ops@calibrated=144,609
100% 99.9% 144,609 144,437
90% 90.4% 130,148 130,766
80% 80.7% 115,687 116,733
70% 69.7% 101,226 100,721
60% 60.2% 86,765 87,094
50% 49.9% 72,305 72,128
40% 40.0% 57,844 57,808
30% 29.8% 43,383 43,139
20% 20.0% 28,922 28,854
10% 9.8% 14,461 14,162
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,831
Calibration 2     147,606
Calibration 3     147,896
ssj_ops@calibrated=147,751
100% 99.5% 147,751 146,946
90% 90.2% 132,976 133,310
80% 79.7% 118,201 117,793
70% 69.8% 103,426 103,101
60% 60.0% 88,650 88,656
50% 49.5% 73,875 73,142
40% 40.8% 59,100 60,246
30% 30.2% 44,325 44,569
20% 20.2% 29,550 29,901
10% 9.9% 14,775 14,660
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,206
Calibration 2     146,742
Calibration 3     146,721
ssj_ops@calibrated=146,731
100% 99.5% 146,731 146,046
90% 89.9% 132,058 131,962
80% 80.0% 117,385 117,348
70% 69.4% 102,712 101,894
60% 59.9% 88,039 87,950
50% 49.8% 73,366 73,042
40% 40.0% 58,693 58,640
30% 30.0% 44,019 43,956
20% 20.2% 29,346 29,632
10% 10.0% 14,673 14,631
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,894
Calibration 2     145,617
Calibration 3     145,848
ssj_ops@calibrated=145,732
100% 99.4% 145,732 144,899
90% 90.1% 131,159 131,340
80% 80.1% 116,586 116,734
70% 69.6% 102,013 101,455
60% 60.6% 87,439 88,347
50% 49.7% 72,866 72,454
40% 39.9% 58,293 58,166
30% 30.6% 43,720 44,604
20% 20.2% 29,146 29,426
10% 9.8% 14,573 14,245
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,382
Calibration 2     147,086
Calibration 3     147,133
ssj_ops@calibrated=147,109
100% 99.5% 147,109 146,396
90% 89.6% 132,398 131,830
80% 80.1% 117,688 117,889
70% 70.9% 102,977 104,231
60% 60.4% 88,266 88,913
50% 50.6% 73,555 74,432
40% 39.6% 58,844 58,273
30% 29.5% 44,133 43,433
20% 19.7% 29,422 29,003
10% 9.8% 14,711 14,489
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,258
Calibration 2     144,163
Calibration 3     144,246
ssj_ops@calibrated=144,205
100% 99.4% 144,205 143,376
90% 90.0% 129,784 129,764
80% 79.7% 115,364 114,982
70% 69.5% 100,943 100,172
60% 59.6% 86,523 86,000
50% 49.9% 72,102 71,999
40% 39.9% 57,682 57,475
30% 30.1% 43,261 43,361
20% 20.1% 28,841 29,055
10% 10.0% 14,420 14,470
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,930
Calibration 2     144,457
Calibration 3     145,193
ssj_ops@calibrated=144,825
100% 100.0% 144,825 144,762
90% 90.5% 130,343 131,016
80% 80.3% 115,860 116,275
70% 70.2% 101,378 101,645
60% 59.7% 86,895 86,449
50% 49.6% 72,413 71,781
40% 39.4% 57,930 57,083
30% 29.4% 43,448 42,523
20% 20.3% 28,965 29,438
10% 9.6% 14,483 13,962
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,634
Calibration 2     144,314
Calibration 3     144,455
ssj_ops@calibrated=144,385
100% 100.1% 144,385 144,568
90% 89.9% 129,946 129,745
80% 79.6% 115,508 114,943
70% 69.6% 101,069 100,422
60% 60.4% 86,631 87,138
50% 49.9% 72,192 72,032
40% 39.8% 57,754 57,418
30% 29.6% 43,315 42,711
20% 19.9% 28,877 28,682
10% 9.9% 14,438 14,241
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,855
Calibration 2     145,109
Calibration 3     144,864
ssj_ops@calibrated=144,987
100% 99.9% 144,987 144,785
90% 89.8% 130,488 130,129
80% 80.4% 115,989 116,517
70% 70.0% 101,491 101,535
60% 59.6% 86,992 86,472
50% 50.0% 72,493 72,564
40% 39.9% 57,995 57,797
30% 29.8% 43,496 43,272
20% 19.7% 28,997 28,509
10% 9.8% 14,499 14,224
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,355
Calibration 2     146,275
Calibration 3     146,133
ssj_ops@calibrated=146,204
100% 99.8% 146,204 145,857
90% 90.1% 131,584 131,749
80% 80.9% 116,963 118,263
70% 69.7% 102,343 101,914
60% 59.3% 87,722 86,639
50% 50.3% 73,102 73,496
40% 40.4% 58,482 59,026
30% 30.0% 43,861 43,832
20% 19.5% 29,241 28,516
10% 10.0% 14,620 14,675
Active Idle   0 0
Graph of results

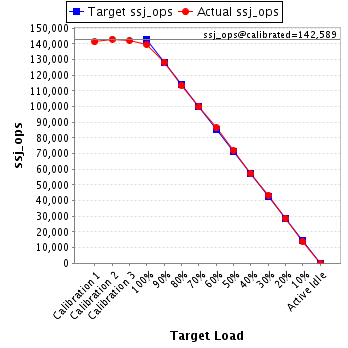

JVM 'WIN-JGE2L637AC6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,328
Calibration 2     143,034
Calibration 3     142,144
ssj_ops@calibrated=142,589
100% 97.9% 142,589 139,600
90% 89.9% 128,330 128,225
80% 79.6% 114,071 113,439
70% 70.0% 99,812 99,802
60% 60.6% 85,553 86,404
50% 50.4% 71,295 71,857
40% 40.1% 57,036 57,203
30% 30.4% 42,777 43,296
20% 20.0% 28,518 28,447
10% 9.7% 14,259 13,786
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,274
Calibration 2     144,283
Calibration 3     144,729
ssj_ops@calibrated=144,506
100% 99.2% 144,506 143,405
90% 89.3% 130,056 129,090
80% 78.8% 115,605 113,924
70% 70.2% 101,154 101,510
60% 60.7% 86,704 87,646
50% 49.5% 72,253 71,542
40% 40.1% 57,802 57,968
30% 29.5% 43,352 42,572
20% 19.8% 28,901 28,563
10% 9.9% 14,451 14,293
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,790
Calibration 2     141,613
Calibration 3     142,062
ssj_ops@calibrated=141,837
100% 99.4% 141,837 140,990
90% 90.6% 127,654 128,445
80% 79.5% 113,470 112,725
70% 70.0% 99,286 99,283
60% 60.4% 85,102 85,651
50% 50.3% 70,919 71,365
40% 39.7% 56,735 56,368
30% 30.2% 42,551 42,790
20% 20.2% 28,367 28,635
10% 9.9% 14,184 14,095
Active Idle   0 0
Graph of results
