Dell Inc. PowerEdge M520 | SPECpower_ssj2008 = 5,034 overall ssj_ops/watt | ||||
Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 2, 2012 |
Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | May 30, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 4,059 | 21.9 |
Calibration 2 | 4,094 | 22.0 |
Calibration 3 | 4,096 | 22.1 |
100% | 4,026 | 22.0 |
90% | 3,356 | 21.9 |
80% | 2,947 | 21.9 |
70% | 2,533 | 21.8 |
60% | 2,143 | 21.8 |
50% | 1,852 | 21.8 |
40% | 1,692 | 21.7 |
30% | 1,404 | 21.7 |
20% | 1,193 | 21.7 |
10% | 1,035 | 21.7 |
Active Idle | 713 | 21.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91KA21978 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Simco Electronics |
Calibration Label: | 5412137 |
Date of Calibration: | 20-Oct-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | Connected to SUT power supply 1 and 2 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91KA21980 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Simco Electronics |
Calibration Label: | 5412138 |
Date of Calibration: | 20-Oct-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | Connected to SUT power supply 3 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main airflow intake |

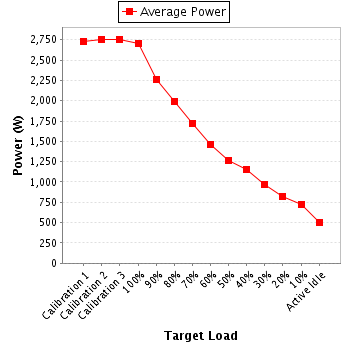

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 203 | 300.0 | 13.6 | 20.0 | 0.990 | 2,732 | 0.3% |
Calibration 2 | 202 | 300.0 | 13.8 | 20.0 | 0.990 | 2,756 | 0.3% |
Calibration 3 | 202 | 300.0 | 13.8 | 20.0 | 0.990 | 2,757 | 0.3% |
100% | 203 | 300.0 | 13.5 | 20.0 | 0.989 | 2,710 | 0.4% |
90% | 204 | 300.0 | 11.2 | 10.0 | 0.988 | 2,264 | 0.3% |
80% | 205 | 300.0 | 9.85 | 10.0 | 0.987 | 1,990 | 0.3% |
70% | 205 | 300.0 | 8.49 | 10.0 | 0.987 | 1,715 | 0.3% |
60% | 205 | 300.0 | 7.20 | 10.0 | 0.987 | 1,455 | 0.3% |
50% | 206 | 300.0 | 6.22 | 10.0 | 0.987 | 1,264 | 0.4% |
40% | 206 | 300.0 | 5.69 | 5.0 | 0.986 | 1,158 | 0.3% |
30% | 207 | 300.0 | 4.73 | 5.0 | 0.986 | 964 | 0.3% |
20% | 207 | 300.0 | 4.04 | 5.0 | 0.984 | 823 | 0.3% |
10% | 207 | 300.0 | 3.55 | 5.0 | 0.977 | 719 | 0.4% |
Active Idle | 208 | 300.0 | 2.53 | 5.0 | 0.957 | 503 | 0.5% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 204 | 300.0 | 6.61 | 10.0 | 0.987 | 1,327 | 0.4% |
Calibration 2 | 203 | 300.0 | 6.68 | 10.0 | 0.987 | 1,339 | 0.4% |
Calibration 3 | 203 | 300.0 | 6.68 | 10.0 | 0.987 | 1,339 | 0.4% |
100% | 203 | 300.0 | 6.57 | 10.0 | 0.987 | 1,316 | 0.4% |
90% | 204 | 300.0 | 5.43 | 5.0 | 0.984 | 1,091 | 0.3% |
80% | 205 | 300.0 | 4.75 | 5.0 | 0.983 | 956 | 0.3% |
70% | 205 | 300.0 | 4.07 | 5.0 | 0.981 | 818 | 0.3% |
60% | 205 | 300.0 | 3.43 | 5.0 | 0.977 | 688 | 0.4% |
50% | 206 | 300.0 | 2.93 | 5.0 | 0.973 | 589 | 0.4% |
40% | 206 | 300.0 | 2.67 | 5.0 | 0.969 | 534 | 0.4% |
30% | 207 | 300.0 | 2.22 | 2.0 | 0.958 | 440 | 0.3% |
20% | 207 | 300.0 | 1.90 | 2.0 | 0.939 | 369 | 0.3% |
10% | 207 | 300.0 | 1.65 | 2.0 | 0.924 | 316 | 0.4% |
Active Idle | 208 | 300.0 | 1.19 | 2.0 | 0.852 | 210 | 0.5% |
