Dell Inc. PowerEdge R820 (Intel Xeon E5-4650L, 2.60 GHz) ssj_ops@100% = 2,540,179
ssj_ops@100% per JVM = 79,381
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 1, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: May 30, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,526,052
Calibration 2     2,546,423
Calibration 3     2,549,500
ssj_ops@calibrated=2,547,961
100% 99.7% 2,547,961 2,540,179
90% 90.1% 2,293,165 2,296,845
80% 79.8% 2,038,369 2,034,530
70% 70.0% 1,783,573 1,782,447
60% 60.0% 1,528,777 1,527,602
50% 50.1% 1,273,981 1,275,261
40% 39.9% 1,019,185 1,017,253
30% 30.0% 764,388 765,170
20% 20.0% 509,592 509,859
10% 10.0% 254,796 253,927
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R820.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R820 (Intel Xeon E5-4650L, 2.60 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-4650L 2.60 GHz
CPU Characteristics: 8 core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3,C1-3,D1-3 populated.
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Dell P/N GYH9V
Disk Drive: 1 x 100GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC H310, Dell P/N 3P0R3
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn768m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000,30000000000,C0000000000,300000000000,C00000000000,3000000000000,C000000000000,30000000000000,C0000000000000,300000000000000,C00000000000000,3000000000000000,C000000000000000]
JVM Instances: 32
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.1.3
Management Firmware Version: 1.20.20 (build 16)
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Memory Operating Mode set to Optimizer Mode
  • QPI Speed set to 6.4 GT/s
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Only Back Ports On
  • System Profile set to Custom
  • CPU Power Management set to DAPC
  • Memory Frequency set to 1333MHz
  • Intel Turbo Boost disabled
  • Memory Patrol Scrub set to disabled
  • Memory Refresh Rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    WIN-FDUP8FJUMHN.001 79,678
    WIN-FDUP8FJUMHN.002 78,809
    WIN-FDUP8FJUMHN.003 79,792
    WIN-FDUP8FJUMHN.004 80,445
    WIN-FDUP8FJUMHN.005 75,939
    WIN-FDUP8FJUMHN.006 79,755
    WIN-FDUP8FJUMHN.007 80,423
    WIN-FDUP8FJUMHN.008 79,293
    WIN-FDUP8FJUMHN.009 78,960
    WIN-FDUP8FJUMHN.010 80,680
    WIN-FDUP8FJUMHN.011 79,563
    WIN-FDUP8FJUMHN.012 78,841
    WIN-FDUP8FJUMHN.013 79,595
    WIN-FDUP8FJUMHN.014 79,307
    WIN-FDUP8FJUMHN.015 79,604
    WIN-FDUP8FJUMHN.016 79,353
    WIN-FDUP8FJUMHN.017 78,898
    WIN-FDUP8FJUMHN.018 78,639
    WIN-FDUP8FJUMHN.019 80,284
    WIN-FDUP8FJUMHN.020 77,124
    WIN-FDUP8FJUMHN.021 79,792
    WIN-FDUP8FJUMHN.022 79,921
    WIN-FDUP8FJUMHN.023 80,592
    WIN-FDUP8FJUMHN.024 80,472
    WIN-FDUP8FJUMHN.025 79,442
    WIN-FDUP8FJUMHN.026 79,070
    WIN-FDUP8FJUMHN.027 78,401
    WIN-FDUP8FJUMHN.028 79,441
    WIN-FDUP8FJUMHN.029 79,974
    WIN-FDUP8FJUMHN.030 79,745
    WIN-FDUP8FJUMHN.031 79,055
    WIN-FDUP8FJUMHN.032 79,293
    ssj_ops@100% 2,540,179
    ssj_ops@100% per JVM 79,381

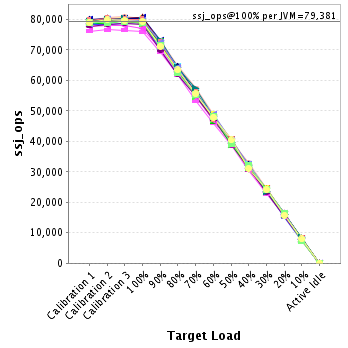

    Graph of per-instance results
    JVM 'WIN-FDUP8FJUMHN.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,360
    Calibration 2     79,402
    Calibration 3     79,847
    ssj_ops@calibrated=79,625
    100% 100.1% 79,625 79,678
    90% 90.0% 71,662 71,663
    80% 80.6% 63,700 64,142
    70% 70.7% 55,737 56,264
    60% 59.3% 47,775 47,198
    50% 50.9% 39,812 40,542
    40% 40.0% 31,850 31,871
    30% 29.5% 23,887 23,478
    20% 20.5% 15,925 16,297
    10% 10.4% 7,962 8,258
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,962
    Calibration 2     79,679
    Calibration 3     79,733
    ssj_ops@calibrated=79,706
    100% 98.9% 79,706 78,809
    90% 90.0% 71,735 71,763
    80% 79.5% 63,765 63,368
    70% 69.7% 55,794 55,528
    60% 60.1% 47,824 47,922
    50% 50.1% 39,853 39,935
    40% 39.7% 31,882 31,617
    30% 30.2% 23,912 24,067
    20% 20.4% 15,941 16,253
    10% 10.3% 7,971 8,170
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,004
    Calibration 2     79,912
    Calibration 3     80,201
    ssj_ops@calibrated=80,057
    100% 99.7% 80,057 79,792
    90% 90.3% 72,051 72,316
    80% 79.9% 64,045 63,934
    70% 70.0% 56,040 56,032
    60% 60.6% 48,034 48,534
    50% 50.4% 40,028 40,339
    40% 40.6% 32,023 32,478
    30% 29.6% 24,017 23,713
    20% 20.1% 16,011 16,062
    10% 10.1% 8,006 8,062
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,629
    Calibration 2     80,381
    Calibration 3     80,583
    ssj_ops@calibrated=80,482
    100% 100.0% 80,482 80,445
    90% 89.8% 72,434 72,260
    80% 79.4% 64,386 63,922
    70% 68.9% 56,337 55,417
    60% 59.7% 48,289 48,077
    50% 50.3% 40,241 40,505
    40% 39.8% 32,193 31,998
    30% 29.8% 24,145 24,020
    20% 20.0% 16,096 16,095
    10% 10.3% 8,048 8,270
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     76,147
    Calibration 2     76,637
    Calibration 3     76,468
    ssj_ops@calibrated=76,552
    100% 99.2% 76,552 75,939
    90% 90.5% 68,897 69,254
    80% 80.8% 61,242 61,863
    70% 69.7% 53,587 53,356
    60% 60.1% 45,931 45,976
    50% 50.6% 38,276 38,755
    40% 39.8% 30,621 30,498
    30% 29.7% 22,966 22,755
    20% 19.9% 15,310 15,272
    10% 10.1% 7,655 7,768
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,959
    Calibration 2     79,842
    Calibration 3     79,897
    ssj_ops@calibrated=79,870
    100% 99.9% 79,870 79,755
    90% 89.4% 71,883 71,403
    80% 80.7% 63,896 64,427
    70% 69.6% 55,909 55,570
    60% 59.0% 47,922 47,121
    50% 50.0% 39,935 39,902
    40% 39.6% 31,948 31,659
    30% 30.2% 23,961 24,144
    20% 20.2% 15,974 16,106
    10% 9.7% 7,987 7,716
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,769
    Calibration 2     80,686
    Calibration 3     81,040
    ssj_ops@calibrated=80,863
    100% 99.5% 80,863 80,423
    90% 90.5% 72,777 73,196
    80% 80.4% 64,691 64,987
    70% 71.2% 56,604 57,553
    60% 60.3% 48,518 48,759
    50% 49.6% 40,432 40,073
    40% 41.0% 32,345 33,167
    30% 30.3% 24,259 24,500
    20% 20.0% 16,173 16,185
    10% 9.6% 8,086 7,766
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,300
    Calibration 2     79,874
    Calibration 3     79,749
    ssj_ops@calibrated=79,811
    100% 99.4% 79,811 79,293
    90% 89.8% 71,830 71,644
    80% 79.3% 63,849 63,309
    70% 69.5% 55,868 55,469
    60% 60.9% 47,887 48,592
    50% 49.6% 39,906 39,623
    40% 39.9% 31,925 31,881
    30% 29.5% 23,943 23,523
    20% 20.0% 15,962 15,926
    10% 10.0% 7,981 8,016
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,875
    Calibration 2     79,788
    Calibration 3     79,917
    ssj_ops@calibrated=79,852
    100% 98.9% 79,852 78,960
    90% 90.9% 71,867 72,582
    80% 79.6% 63,882 63,596
    70% 69.7% 55,897 55,684
    60% 59.9% 47,911 47,793
    50% 49.6% 39,926 39,585
    40% 40.1% 31,941 32,058
    30% 29.5% 23,956 23,565
    20% 19.9% 15,970 15,893
    10% 10.1% 7,985 8,074
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     80,097
    Calibration 2     80,077
    Calibration 3     80,175
    ssj_ops@calibrated=80,126
    100% 100.7% 80,126 80,680
    90% 91.1% 72,113 72,980
    80% 79.2% 64,101 63,447
    70% 69.5% 56,088 55,669
    60% 59.1% 48,076 47,317
    50% 50.3% 40,063 40,328
    40% 39.9% 32,050 31,938
    30% 29.5% 24,038 23,653
    20% 20.2% 16,025 16,149
    10% 9.7% 8,013 7,775
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,726
    Calibration 2     78,804
    Calibration 3     79,811
    ssj_ops@calibrated=79,308
    100% 100.3% 79,308 79,563
    90% 91.7% 71,377 72,722
    80% 79.7% 63,446 63,238
    70% 70.8% 55,515 56,128
    60% 59.2% 47,585 46,915
    50% 49.9% 39,654 39,561
    40% 39.3% 31,723 31,177
    30% 30.3% 23,792 24,035
    20% 20.3% 15,862 16,128
    10% 10.3% 7,931 8,204
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,219
    Calibration 2     79,640
    Calibration 3     79,490
    ssj_ops@calibrated=79,565
    100% 99.1% 79,565 78,841
    90% 90.4% 71,608 71,962
    80% 79.4% 63,652 63,171
    70% 69.6% 55,695 55,410
    60% 60.9% 47,739 48,450
    50% 50.4% 39,782 40,100
    40% 40.2% 31,826 31,950
    30% 30.4% 23,869 24,219
    20% 19.6% 15,913 15,559
    10% 9.6% 7,956 7,641
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,225
    Calibration 2     79,470
    Calibration 3     79,286
    ssj_ops@calibrated=79,378
    100% 100.3% 79,378 79,595
    90% 90.0% 71,440 71,409
    80% 79.3% 63,503 62,940
    70% 70.8% 55,565 56,227
    60% 59.8% 47,627 47,505
    50% 49.1% 39,689 38,970
    40% 39.1% 31,751 31,026
    30% 30.6% 23,813 24,280
    20% 20.5% 15,876 16,289
    10% 10.0% 7,938 7,909
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,379
    Calibration 2     79,825
    Calibration 3     79,660
    ssj_ops@calibrated=79,742
    100% 99.5% 79,742 79,307
    90% 91.0% 71,768 72,580
    80% 78.8% 63,794 62,825
    70% 70.4% 55,820 56,173
    60% 59.5% 47,845 47,479
    50% 49.6% 39,871 39,535
    40% 40.6% 31,897 32,353
    30% 29.5% 23,923 23,527
    20% 19.5% 15,948 15,541
    10% 9.6% 7,974 7,691
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,635
    Calibration 2     80,043
    Calibration 3     79,858
    ssj_ops@calibrated=79,951
    100% 99.6% 79,951 79,604
    90% 90.2% 71,956 72,122
    80% 80.4% 63,961 64,283
    70% 70.2% 55,966 56,126
    60% 59.1% 47,970 47,213
    50% 50.9% 39,975 40,707
    40% 39.7% 31,980 31,756
    30% 30.5% 23,985 24,355
    20% 20.4% 15,990 16,270
    10% 10.2% 7,995 8,154
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,120
    Calibration 2     79,402
    Calibration 3     79,397
    ssj_ops@calibrated=79,400
    100% 99.9% 79,400 79,353
    90% 90.3% 71,460 71,726
    80% 79.8% 63,520 63,339
    70% 70.4% 55,580 55,921
    60% 60.4% 47,640 47,991
    50% 49.9% 39,700 39,589
    40% 39.7% 31,760 31,485
    30% 30.9% 23,820 24,559
    20% 20.0% 15,880 15,863
    10% 10.1% 7,940 8,033
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.017' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,454
    Calibration 2     78,506
    Calibration 3     78,807
    ssj_ops@calibrated=78,656
    100% 100.3% 78,656 78,898
    90% 89.0% 70,791 70,018
    80% 78.9% 62,925 62,073
    70% 70.2% 55,059 55,181
    60% 59.8% 47,194 47,007
    50% 50.5% 39,328 39,746
    40% 39.4% 31,462 30,987
    30% 30.1% 23,597 23,653
    20% 19.1% 15,731 15,057
    10% 9.6% 7,866 7,587
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.018' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,282
    Calibration 2     78,788
    Calibration 3     79,520
    ssj_ops@calibrated=79,154
    100% 99.3% 79,154 78,639
    90% 90.0% 71,239 71,230
    80% 79.5% 63,324 62,899
    70% 69.1% 55,408 54,732
    60% 59.7% 47,493 47,272
    50% 49.3% 39,577 39,030
    40% 39.6% 31,662 31,367
    30% 30.9% 23,746 24,498
    20% 20.2% 15,831 15,987
    10% 10.5% 7,915 8,335
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.019' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,268
    Calibration 2     80,219
    Calibration 3     80,307
    ssj_ops@calibrated=80,263
    100% 100.0% 80,263 80,284
    90% 89.8% 72,237 72,043
    80% 80.4% 64,211 64,570
    70% 69.6% 56,184 55,864
    60% 60.9% 48,158 48,865
    50% 49.4% 40,132 39,651
    40% 39.9% 32,105 32,026
    30% 30.4% 24,079 24,396
    20% 20.0% 16,053 16,066
    10% 9.5% 8,026 7,604
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.020' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,651
    Calibration 2     77,877
    Calibration 3     78,088
    ssj_ops@calibrated=77,982
    100% 98.9% 77,982 77,124
    90% 89.8% 70,184 70,061
    80% 80.3% 62,386 62,654
    70% 70.3% 54,587 54,838
    60% 60.3% 46,789 47,009
    50% 50.5% 38,991 39,393
    40% 39.8% 31,193 30,998
    30% 29.8% 23,395 23,261
    20% 19.9% 15,596 15,549
    10% 10.0% 7,798 7,766
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.021' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,057
    Calibration 2     79,647
    Calibration 3     79,985
    ssj_ops@calibrated=79,816
    100% 100.0% 79,816 79,792
    90% 88.9% 71,834 70,982
    80% 80.8% 63,853 64,485
    70% 70.8% 55,871 56,475
    60% 59.8% 47,890 47,760
    50% 49.5% 39,908 39,474
    40% 40.5% 31,926 32,299
    30% 30.2% 23,945 24,092
    20% 19.9% 15,963 15,882
    10% 9.7% 7,982 7,760
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.022' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,268
    Calibration 2     80,351
    Calibration 3     80,359
    ssj_ops@calibrated=80,355
    100% 99.5% 80,355 79,921
    90% 90.6% 72,319 72,817
    80% 80.5% 64,284 64,656
    70% 69.6% 56,248 55,904
    60% 60.0% 48,213 48,226
    50% 50.5% 40,177 40,583
    40% 40.2% 32,142 32,290
    30% 29.6% 24,106 23,756
    20% 19.6% 16,071 15,745
    10% 9.8% 8,035 7,856
    Active Idle   0 0

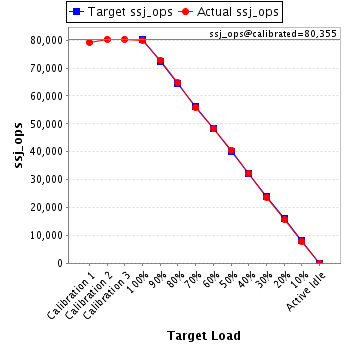

    Graph of results
    JVM 'WIN-FDUP8FJUMHN.023' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,605
    Calibration 2     80,312
    Calibration 3     80,358
    ssj_ops@calibrated=80,335
    100% 100.3% 80,335 80,592
    90% 90.2% 72,302 72,443
    80% 79.7% 64,268 64,000
    70% 69.3% 56,235 55,665
    60% 59.4% 48,201 47,683
    50% 50.2% 40,168 40,311
    40% 39.8% 32,134 31,977
    30% 30.2% 24,101 24,298
    20% 19.8% 16,067 15,935
    10% 10.1% 8,034 8,128
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.024' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,879
    Calibration 2     80,387
    Calibration 3     80,294
    ssj_ops@calibrated=80,341
    100% 100.2% 80,341 80,472
    90% 89.7% 72,307 72,085
    80% 80.3% 64,273 64,489
    70% 69.6% 56,238 55,925
    60% 59.7% 48,204 47,959
    50% 49.5% 40,170 39,731
    40% 40.4% 32,136 32,494
    30% 29.3% 24,102 23,578
    20% 20.1% 16,068 16,159
    10% 10.0% 8,034 8,050
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.025' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,001
    Calibration 2     79,475
    Calibration 3     79,610
    ssj_ops@calibrated=79,542
    100% 99.9% 79,542 79,442
    90% 90.5% 71,588 71,962
    80% 80.1% 63,634 63,725
    70% 69.3% 55,680 55,112
    60% 59.8% 47,725 47,583
    50% 48.9% 39,771 38,909
    40% 39.4% 31,817 31,371
    30% 29.4% 23,863 23,420
    20% 19.6% 15,908 15,572
    10% 9.7% 7,954 7,716
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.026' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,635
    Calibration 2     79,756
    Calibration 3     79,368
    ssj_ops@calibrated=79,562
    100% 99.4% 79,562 79,070
    90% 89.6% 71,606 71,318
    80% 80.4% 63,650 63,972
    70% 69.9% 55,694 55,591
    60% 60.0% 47,737 47,765
    50% 50.3% 39,781 40,044
    40% 39.3% 31,825 31,237
    30% 30.0% 23,869 23,892
    20% 20.3% 15,912 16,120
    10% 9.9% 7,956 7,875
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.027' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,774
    Calibration 2     78,336
    Calibration 3     78,544
    ssj_ops@calibrated=78,440
    100% 100.0% 78,440 78,401
    90% 89.0% 70,596 69,810
    80% 79.0% 62,752 61,932
    70% 70.2% 54,908 55,077
    60% 60.0% 47,064 47,032
    50% 50.9% 39,220 39,958
    40% 40.2% 31,376 31,517
    30% 29.6% 23,532 23,221
    20% 19.7% 15,688 15,447
    10% 10.0% 7,844 7,862
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.028' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,351
    Calibration 2     80,090
    Calibration 3     80,334
    ssj_ops@calibrated=80,212
    100% 99.0% 80,212 79,441
    90% 91.2% 72,191 73,161
    80% 80.1% 64,170 64,289
    70% 71.6% 56,148 57,448
    60% 60.2% 48,127 48,300
    50% 49.6% 40,106 39,782
    40% 39.9% 32,085 32,020
    30% 29.5% 24,064 23,690
    20% 20.1% 16,042 16,124
    10% 10.4% 8,021 8,352
    Active Idle   0 0

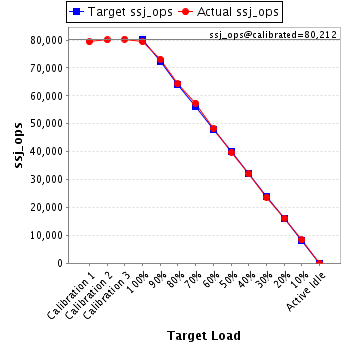

    Graph of results
    JVM 'WIN-FDUP8FJUMHN.029' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,798
    Calibration 2     80,348
    Calibration 3     79,910
    ssj_ops@calibrated=80,129
    100% 99.8% 80,129 79,974
    90% 90.5% 72,116 72,523
    80% 79.3% 64,103 63,579
    70% 69.7% 56,090 55,884
    60% 59.2% 48,077 47,439
    50% 50.3% 40,064 40,331
    40% 39.9% 32,052 31,952
    30% 30.4% 24,039 24,321
    20% 19.9% 16,026 15,984
    10% 10.1% 8,013 8,062
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.030' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,716
    Calibration 2     79,949
    Calibration 3     79,797
    ssj_ops@calibrated=79,873
    100% 99.8% 79,873 79,745
    90% 90.6% 71,886 72,328
    80% 80.5% 63,898 64,322
    70% 69.2% 55,911 55,292
    60% 61.2% 47,924 48,909
    50% 50.6% 39,937 40,409
    40% 40.7% 31,949 32,497
    30% 30.2% 23,962 24,161
    20% 20.4% 15,975 16,278
    10% 9.8% 7,987 7,866
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.031' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,943
    Calibration 2     78,975
    Calibration 3     79,489
    ssj_ops@calibrated=79,232
    100% 99.8% 79,232 79,055
    90% 90.0% 71,309 71,310
    80% 79.0% 63,386 62,630
    70% 69.9% 55,462 55,354
    60% 60.6% 47,539 48,021
    50% 49.7% 39,616 39,388
    40% 40.7% 31,693 32,248
    30% 30.7% 23,770 24,346
    20% 20.6% 15,846 16,324
    10% 9.6% 7,923 7,618
    Active Idle   0 0
    Graph of results
    JVM 'WIN-FDUP8FJUMHN.032' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,967
    Calibration 2     79,945
    Calibration 3     79,617
    ssj_ops@calibrated=79,781
    100% 99.4% 79,781 79,293
    90% 89.2% 71,803 71,174
    80% 79.5% 63,825 63,463
    70% 69.7% 55,847 55,575
    60% 60.1% 47,868 47,929
    50% 50.7% 39,890 40,474
    40% 38.9% 31,912 31,058
    30% 30.3% 23,934 24,197
    20% 19.7% 15,956 15,743
    10% 10.0% 7,978 7,983
    Active Idle   0 0
    Graph of results
