Huawei Technologies Co., Ltd RH2285 V2 | SPECpower_ssj2008 = 5,052 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | May 10, 2012 |
Hardware Availability: | May-2012 | Software Availability: | Dec-2011 | Publication: | May 30, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

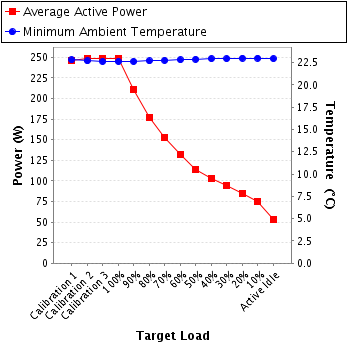

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 247 | 22.8 |
Calibration 2 | 249 | 22.7 |
Calibration 3 | 249 | 22.6 |
100% | 249 | 22.6 |
90% | 212 | 22.6 |
80% | 177 | 22.7 |
70% | 153 | 22.8 |
60% | 132 | 22.8 |
50% | 114 | 22.9 |
40% | 103 | 22.9 |
30% | 93.9 | 22.9 |
20% | 84.5 | 23.0 |
10% | 75.1 | 23.0 |
Active Idle | 53.0 | 22.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | COM |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B11004997-0007 |
Date of Calibration: | 20-Jun-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | none |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 221 | 300.0 | 1.13 | 1.0 | 0.990 | 247 | 0.6% |
Calibration 2 | 221 | 300.0 | 1.13 | 1.0 | 0.990 | 249 | 0.6% |
Calibration 3 | 222 | 300.0 | 1.14 | 1.0 | 0.990 | 249 | 0.6% |
100% | 221 | 300.0 | 1.14 | 1.0 | 0.990 | 249 | 0.6% |
90% | 222 | 300.0 | 0.976 | 1.0 | 0.984 | 212 | 0.6% |
80% | 223 | 300.0 | 0.813 | 1.0 | 0.979 | 177 | 0.6% |
70% | 223 | 300.0 | 0.694 | 1.0 | 0.989 | 153 | 0.6% |
60% | 223 | 300.0 | 0.600 | 1.0 | 0.985 | 132 | 0.7% |
50% | 224 | 300.0 | 0.519 | 1.0 | 0.980 | 114 | 0.7% |
40% | 224 | 300.0 | 0.471 | 1.0 | 0.975 | 103 | 0.7% |
30% | 226 | 300.0 | 0.429 | 0.5 | 0.969 | 93.9 | 0.6% |
20% | 226 | 300.0 | 0.389 | 0.5 | 0.960 | 84.5 | 0.6% |
10% | 227 | 300.0 | 0.349 | 0.5 | 0.951 | 75.1 | 0.7% |
Active Idle | 227 | 300.0 | 0.257 | 0.5 | 0.908 | 53.0 | 0.8% |
