Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,205,974
ssj_ops@100% per JVM = 137,873
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 30, 2012
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Jun 5, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,190,775
Calibration 2     2,217,762
Calibration 3     2,217,985
ssj_ops@calibrated=2,217,873
100% 99.5% 2,217,873 2,205,974
90% 90.1% 1,996,086 1,997,202
80% 80.0% 1,774,299 1,774,226
70% 70.2% 1,552,511 1,558,014
60% 60.0% 1,330,724 1,329,773
50% 50.0% 1,108,937 1,108,555
40% 40.1% 887,149 889,115
30% 29.8% 665,362 661,280
20% 19.9% 443,575 441,498
10% 10.1% 221,787 223,063
Active Idle   0 0

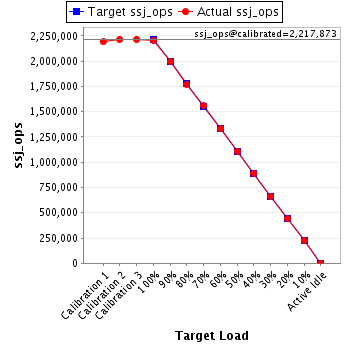

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6276
CPU Characteristics: 16 cores, 2.30 GHz (AMD Turbo CORE technology up to 3.20 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB SATA2 7200 RPM 3.5" HDD, Acer part #KH.500W8.019
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1500m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P6T0
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-JGE2L637AC6.001 135,004
WIN-JGE2L637AC6.002 140,717
WIN-JGE2L637AC6.003 140,398
WIN-JGE2L637AC6.004 141,134
WIN-JGE2L637AC6.005 139,279
WIN-JGE2L637AC6.006 138,865
WIN-JGE2L637AC6.007 139,171
WIN-JGE2L637AC6.008 137,593
WIN-JGE2L637AC6.009 136,092
WIN-JGE2L637AC6.010 138,351
WIN-JGE2L637AC6.011 139,212
WIN-JGE2L637AC6.012 133,411
WIN-JGE2L637AC6.013 132,736
WIN-JGE2L637AC6.014 140,624
WIN-JGE2L637AC6.015 138,357
WIN-JGE2L637AC6.016 135,030
ssj_ops@100% 2,205,974
ssj_ops@100% per JVM 137,873
Graph of per-instance results
JVM 'WIN-JGE2L637AC6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,597
Calibration 2     134,550
Calibration 3     135,715
ssj_ops@calibrated=135,133
100% 99.9% 135,133 135,004
90% 90.2% 121,620 121,950
80% 79.8% 108,106 107,800
70% 70.3% 94,593 95,005
60% 60.5% 81,080 81,758
50% 49.8% 67,566 67,258
40% 40.5% 54,053 54,666
30% 29.3% 40,540 39,611
20% 19.8% 27,027 26,774
10% 10.1% 13,513 13,628
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,583
Calibration 2     141,075
Calibration 3     140,987
ssj_ops@calibrated=141,031
100% 99.8% 141,031 140,717
90% 90.0% 126,928 126,899
80% 79.8% 112,825 112,567
70% 70.5% 98,722 99,385
60% 59.6% 84,619 84,055
50% 50.1% 70,515 70,723
40% 40.3% 56,412 56,833
30% 30.2% 42,309 42,625
20% 20.0% 28,206 28,217
10% 10.2% 14,103 14,329
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,701
Calibration 2     140,096
Calibration 3     140,328
ssj_ops@calibrated=140,212
100% 100.1% 140,212 140,398
90% 89.6% 126,191 125,612
80% 80.5% 112,170 112,905
70% 70.5% 98,148 98,907
60% 59.7% 84,127 83,748
50% 49.6% 70,106 69,507
40% 40.4% 56,085 56,580
30% 29.8% 42,064 41,853
20% 20.2% 28,042 28,257
10% 10.1% 14,021 14,210
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,286
Calibration 2     140,937
Calibration 3     141,468
ssj_ops@calibrated=141,203
100% 100.0% 141,203 141,134
90% 89.9% 127,083 126,930
80% 79.0% 112,962 111,520
70% 71.3% 98,842 100,623
60% 59.8% 84,722 84,390
50% 49.6% 70,601 70,081
40% 39.9% 56,481 56,397
30% 30.3% 42,361 42,853
20% 20.0% 28,241 28,297
10% 10.1% 14,120 14,218
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,158
Calibration 2     140,111
Calibration 3     140,486
ssj_ops@calibrated=140,299
100% 99.3% 140,299 139,279
90% 89.4% 126,269 125,467
80% 79.7% 112,239 111,780
70% 70.3% 98,209 98,592
60% 59.1% 84,179 82,881
50% 49.8% 70,149 69,819
40% 40.7% 56,119 57,162
30% 29.7% 42,090 41,611
20% 19.7% 28,060 27,629
10% 10.1% 14,030 14,101
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,756
Calibration 2     138,307
Calibration 3     138,901
ssj_ops@calibrated=138,604
100% 100.2% 138,604 138,865
90% 90.3% 124,743 125,095
80% 80.3% 110,883 111,315
70% 69.7% 97,023 96,558
60% 60.6% 83,162 83,925
50% 50.5% 69,302 69,983
40% 39.5% 55,441 54,683
30% 30.0% 41,581 41,633
20% 19.6% 27,721 27,151
10% 10.3% 13,860 14,247
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,496
Calibration 2     140,212
Calibration 3     140,072
ssj_ops@calibrated=140,142
100% 99.3% 140,142 139,171
90% 90.1% 126,128 126,308
80% 79.7% 112,114 111,663
70% 70.3% 98,099 98,453
60% 59.4% 84,085 83,215
50% 49.5% 70,071 69,427
40% 40.0% 56,057 56,037
30% 30.0% 42,043 42,022
20% 19.8% 28,028 27,785
10% 10.2% 14,014 14,247
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,147
Calibration 2     138,927
Calibration 3     138,998
ssj_ops@calibrated=138,962
100% 99.0% 138,962 137,593
90% 90.9% 125,066 126,312
80% 79.8% 111,170 110,945
70% 70.1% 97,274 97,477
60% 60.2% 83,377 83,589
50% 50.2% 69,481 69,716
40% 40.2% 55,585 55,835
30% 29.9% 41,689 41,557
20% 19.8% 27,792 27,478
10% 10.1% 13,896 14,010
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,580
Calibration 2     136,862
Calibration 3     136,568
ssj_ops@calibrated=136,715
100% 99.5% 136,715 136,092
90% 90.6% 123,043 123,931
80% 79.8% 109,372 109,035
70% 70.1% 95,700 95,829
60% 60.5% 82,029 82,659
50% 50.2% 68,357 68,617
40% 40.2% 54,686 54,972
30% 29.5% 41,014 40,343
20% 20.4% 27,343 27,824
10% 9.8% 13,671 13,466
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,234
Calibration 2     138,892
Calibration 3     138,478
ssj_ops@calibrated=138,685
100% 99.8% 138,685 138,351
90% 89.8% 124,817 124,524
80% 80.1% 110,948 111,052
70% 70.6% 97,080 97,882
60% 60.1% 83,211 83,330
50% 50.2% 69,343 69,614
40% 40.6% 55,474 56,358
30% 29.7% 41,606 41,188
20% 19.8% 27,737 27,491
10% 10.3% 13,869 14,249
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,376
Calibration 2     139,237
Calibration 3     139,193
ssj_ops@calibrated=139,215
100% 100.0% 139,215 139,212
90% 89.7% 125,293 124,879
80% 79.8% 111,372 111,082
70% 69.8% 97,450 97,155
60% 60.4% 83,529 84,027
50% 50.2% 69,607 69,945
40% 39.6% 55,686 55,087
30% 29.6% 41,764 41,171
20% 20.3% 27,843 28,289
10% 9.9% 13,921 13,824
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,997
Calibration 2     140,471
Calibration 3     137,877
ssj_ops@calibrated=139,174
100% 95.9% 139,174 133,411
90% 88.8% 125,256 123,629
80% 80.6% 111,339 112,178
70% 69.3% 97,422 96,506
60% 60.8% 83,504 84,649
50% 50.5% 69,587 70,252
40% 40.2% 55,669 55,984
30% 29.8% 41,752 41,440
20% 19.9% 27,835 27,675
10% 10.1% 13,917 14,095
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,876
Calibration 2     133,950
Calibration 3     133,941
ssj_ops@calibrated=133,945
100% 99.1% 133,945 132,736
90% 90.5% 120,551 121,268
80% 80.0% 107,156 107,114
70% 70.3% 93,762 94,174
60% 59.5% 80,367 79,697
50% 49.7% 66,973 66,546
40% 40.4% 53,578 54,086
30% 30.0% 40,184 40,132
20% 19.9% 26,789 26,650
10% 10.0% 13,395 13,358
Active Idle   0 0
Graph of results

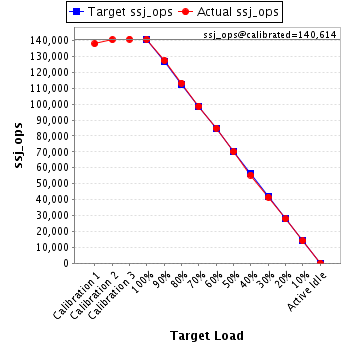

JVM 'WIN-JGE2L637AC6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,884
Calibration 2     140,433
Calibration 3     140,794
ssj_ops@calibrated=140,614
100% 100.0% 140,614 140,624
90% 90.6% 126,552 127,430
80% 80.5% 112,491 113,231
70% 70.1% 98,429 98,620
60% 60.4% 84,368 84,925
50% 49.8% 70,307 70,028
40% 39.4% 56,245 55,447
30% 29.5% 42,184 41,516
20% 19.8% 28,123 27,820
10% 10.0% 14,061 14,091
Active Idle   0 0
Graph of results
JVM 'WIN-JGE2L637AC6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,203
Calibration 2     138,447
Calibration 3     138,988
ssj_ops@calibrated=138,717
100% 99.7% 138,717 138,357
90% 90.9% 124,846 126,088
80% 80.2% 110,974 111,231
70% 69.9% 97,102 97,008
60% 60.2% 83,230 83,518
50% 50.0% 69,359 69,425
40% 40.1% 55,487 55,669
30% 29.5% 41,615 40,918
20% 20.0% 27,743 27,802
10% 9.8% 13,872 13,575
Active Idle   0 0
Graph of results

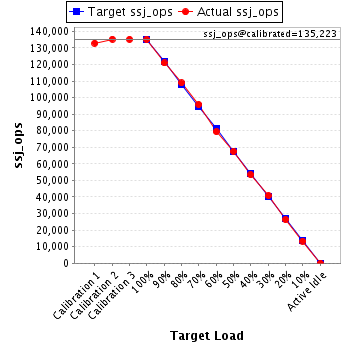

JVM 'WIN-JGE2L637AC6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,903
Calibration 2     135,255
Calibration 3     135,191
ssj_ops@calibrated=135,223
100% 99.9% 135,223 135,030
90% 89.4% 121,701 120,880
80% 80.5% 108,178 108,809
70% 70.9% 94,656 95,838
60% 58.7% 81,134 79,406
50% 50.0% 67,612 67,613
40% 39.4% 54,089 53,319
30% 30.2% 40,567 40,808
20% 19.5% 27,045 26,361
10% 9.9% 13,522 13,412
Active Idle   0 0
Graph of results
