Supermicro Computer Inc. 1022G-NTF | SPECpower_ssj2008 = 2,892 overall ssj_ops/watt | ||||
Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
Tested By: | Advanced Micro Devices | Test Location: | Austin, TX USA | Test Date: | Apr 25, 2002 |
Hardware Availability: | Jun-2012 | Software Availability: | Feb-2011 | Publication: | Jun 4, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

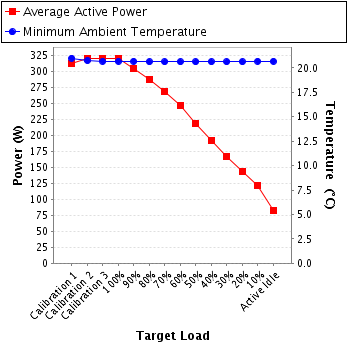

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 313 | 21.0 |
Calibration 2 | 320 | 20.8 |
Calibration 3 | 321 | 20.7 |
100% | 320 | 20.7 |
90% | 304 | 20.7 |
80% | 287 | 20.6 |
70% | 269 | 20.6 |
60% | 247 | 20.6 |
50% | 219 | 20.6 |
40% | 193 | 20.6 |
30% | 167 | 20.6 |
20% | 144 | 20.6 |
10% | 121 | 20.7 |
Active Idle | 82.6 | 20.7 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91M215719 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Yokogawa Corporation of America |
Calibration Label: | 022412-91M215719 |
Date of Calibration: | 24-Feb-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.30.2.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 1.53 | 2.0 | 0.969 | 313 | 0.3% |
Calibration 2 | 210 | 300.0 | 1.57 | 2.0 | 0.970 | 320 | 0.3% |
Calibration 3 | 210 | 300.0 | 1.57 | 2.0 | 0.970 | 321 | 0.3% |
100% | 210 | 300.0 | 1.57 | 2.0 | 0.971 | 320 | 0.3% |
90% | 208 | 300.0 | 1.51 | 2.0 | 0.970 | 304 | 0.3% |
80% | 208 | 300.0 | 1.42 | 2.0 | 0.970 | 287 | 0.4% |
70% | 209 | 300.0 | 1.33 | 2.0 | 0.968 | 269 | 0.4% |
60% | 209 | 300.0 | 1.23 | 1.0 | 0.966 | 247 | 0.3% |
50% | 210 | 300.0 | 1.10 | 1.0 | 0.954 | 219 | 0.3% |
40% | 210 | 300.0 | 0.968 | 1.0 | 0.948 | 193 | 0.3% |
30% | 210 | 300.0 | 0.848 | 1.0 | 0.942 | 167 | 0.4% |
20% | 210 | 300.0 | 0.735 | 1.0 | 0.935 | 144 | 0.4% |
10% | 210 | 300.0 | 0.625 | 1.0 | 0.923 | 121 | 0.4% |
Active Idle | 210 | 300.0 | 0.439 | 1.0 | 0.896 | 82.6 | 0.6% |
