Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 5,088 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 26, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 16, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 237 21.3
Calibration 2 239 21.4
Calibration 3 237 21.4
100% 239 21.5
90% 199 21.4
80% 170 21.3
70% 146 21.5
60% 127 21.6
50% 110 21.7
40% 101 21.6
30% 93.2 21.7
20% 84.2 21.7
10% 75.1 21.7
Active Idle 54.0 21.7

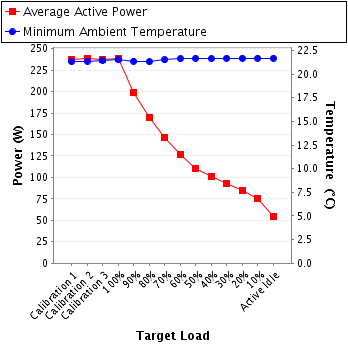

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91F522082
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB11003462-0020
Date of Calibration: 4-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: none
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 223 300.0 1.09 2.0 0.979 237 0.4%
Calibration 2 223 300.0 1.09 2.0 0.980 239 0.4%
Calibration 3 224 300.0 1.08 2.0 0.979 237 0.4%
100% 225 300.0 1.08 2.0 0.979 239 0.4%
90% 225 300.0 0.919 1.0 0.970 199 0.3%
80% 227 300.0 0.775 1.0 0.967 170 0.3%
70% 227 300.0 0.664 1.0 0.971 146 0.4%
60% 227 300.0 0.579 1.0 0.964 127 0.4%
50% 228 300.0 0.506 1.0 0.955 110 0.4%
40% 228 300.0 0.468 0.5 0.950 101 0.3%
30% 228 300.0 0.434 0.5 0.943 93.2 0.3%
20% 228 300.0 0.396 0.5 0.934 84.2 0.4%
10% 227 300.0 0.358 0.5 0.922 75.1 0.4%
Active Idle 228 300.0 0.261 0.5 0.909 54.0 0.5%
Power details for pwr1
