Dell Inc. PowerEdge T620 (Intel Xeon E5-2660, 2.2 GHz) SPECpower_ssj2008 = 4,929 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 27, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 249 22.8
Calibration 2 250 22.8
Calibration 3 250 22.8
100% 246 22.9
90% 207 22.9
80% 183 22.8
70% 161 22.8
60% 140 22.8
50% 123 22.8
40% 115 22.8
30% 96.4 22.7
20% 84.4 22.7
10% 74.3 22.7
Active Idle 51.3 22.7

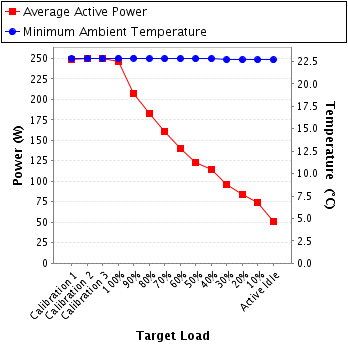

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 5182274
Date of Calibration: 23-Apr-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.30.02
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.23 2.0 0.983 249 0.4%
Calibration 2 206 300.0 1.22 2.0 0.991 250 0.4%
Calibration 3 206 300.0 1.23 2.0 0.984 250 0.4%
100% 207 300.0 1.21 2.0 0.983 246 0.4%
90% 207 300.0 1.03 2.0 0.977 207 0.4%
80% 207 300.0 0.907 2.0 0.976 183 0.5%
70% 207 300.0 0.801 1.0 0.974 161 0.3%
60% 207 300.0 0.700 1.0 0.967 140 0.4%
50% 207 300.0 0.627 1.0 0.952 123 0.4%
40% 207 300.0 0.590 1.0 0.944 115 0.4%
30% 207 300.0 0.499 0.5 0.935 96.4 0.3%
20% 207 300.0 0.442 0.5 0.923 84.4 0.4%
10% 207 300.0 0.394 0.5 0.911 74.3 0.4%
Active Idle 207 300.0 0.293 0.5 0.846 51.3 0.5%
Power details for pwr1
