Dell Inc. PowerEdge R720 (Intel Xeon E5-2660, 2.2 GHz) ssj_ops@100% = 1,308,474
ssj_ops@100% per JVM = 81,780
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 26, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,316,084
Calibration 2     1,322,132
Calibration 3     1,325,009
ssj_ops@calibrated=1,323,571
100% 98.9% 1,323,571 1,308,474
90% 90.0% 1,191,213 1,191,323
80% 80.4% 1,058,856 1,064,113
70% 70.1% 926,499 927,791
60% 60.1% 794,142 795,832
50% 50.0% 661,785 661,163
40% 40.1% 529,428 530,461
30% 30.0% 397,071 396,453
20% 20.0% 264,714 264,963
10% 10.0% 132,357 132,079
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R720 (Intel Xeon E5-2660, 2.2 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3, B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 495
Power Supply Details: Dell P/N 13MD5
Disk Drive: 1 x 100 GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode set in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XXInitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.2.1
Management Firmware Version: 1.00.00 (build 76)
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • QPI speed set to 6.4 GT/s
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to off
  • System Profile set to Custom
  • CPU Power Management set to System DBPM (DAPC)
  • Memory Frequency set to 1333MHz
  • Intel Turbo Boost enabled
  • Memory Patrol Scrub set to disabled
  • Memory Refresh Rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    OrcaPT-Power.001 83,665
    OrcaPT-Power.002 81,705
    OrcaPT-Power.003 81,012
    OrcaPT-Power.004 81,858
    OrcaPT-Power.005 82,621
    OrcaPT-Power.006 80,738
    OrcaPT-Power.007 80,391
    OrcaPT-Power.008 81,656
    OrcaPT-Power.009 82,241
    OrcaPT-Power.010 81,704
    OrcaPT-Power.011 81,133
    OrcaPT-Power.012 81,347
    OrcaPT-Power.013 83,225
    OrcaPT-Power.014 81,696
    OrcaPT-Power.015 82,014
    OrcaPT-Power.016 81,467
    ssj_ops@100% 1,308,474
    ssj_ops@100% per JVM 81,780

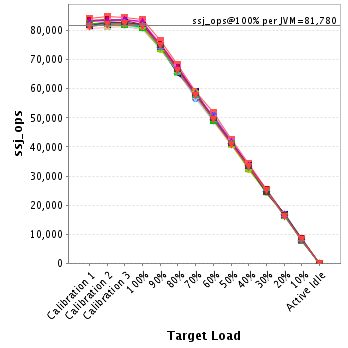

    Graph of per-instance results
    JVM 'OrcaPT-Power.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     84,097
    Calibration 2     84,901
    Calibration 3     84,663
    ssj_ops@calibrated=84,782
    100% 98.7% 84,782 83,665
    90% 90.5% 76,304 76,743
    80% 80.7% 67,826 68,416
    70% 69.8% 59,348 59,167
    60% 61.0% 50,869 51,752
    50% 50.0% 42,391 42,392
    40% 40.3% 33,913 34,145
    30% 30.0% 25,435 25,460
    20% 19.8% 16,956 16,804
    10% 10.0% 8,478 8,500
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

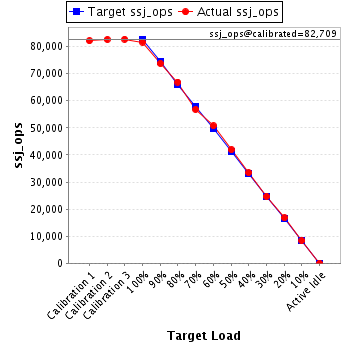

    JVM 'OrcaPT-Power.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,144
    Calibration 2     82,659
    Calibration 3     82,759
    ssj_ops@calibrated=82,709
    100% 98.8% 82,709 81,705
    90% 89.2% 74,438 73,789
    80% 80.9% 66,167 66,928
    70% 68.7% 57,897 56,819
    60% 61.4% 49,626 50,760
    50% 50.8% 41,355 41,983
    40% 40.4% 33,084 33,417
    30% 29.9% 24,813 24,700
    20% 20.3% 16,542 16,753
    10% 10.1% 8,271 8,337
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,693
    Calibration 2     81,468
    Calibration 3     82,405
    ssj_ops@calibrated=81,936
    100% 98.9% 81,936 81,012
    90% 90.3% 73,743 73,981
    80% 79.9% 65,549 65,494
    70% 70.4% 57,356 57,691
    60% 59.9% 49,162 49,072
    50% 50.0% 40,968 41,004
    40% 40.1% 32,775 32,831
    30% 30.0% 24,581 24,573
    20% 20.3% 16,387 16,602
    10% 10.2% 8,194 8,367
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,036
    Calibration 2     82,479
    Calibration 3     82,882
    ssj_ops@calibrated=82,681
    100% 99.0% 82,681 81,858
    90% 90.2% 74,413 74,599
    80% 80.8% 66,144 66,793
    70% 70.4% 57,876 58,237
    60% 59.9% 49,608 49,508
    50% 50.7% 41,340 41,942
    40% 39.6% 33,072 32,720
    30% 30.0% 24,804 24,831
    20% 20.1% 16,536 16,632
    10% 9.9% 8,268 8,219
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

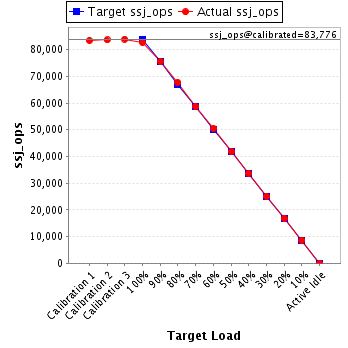

    JVM 'OrcaPT-Power.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,441
    Calibration 2     83,628
    Calibration 3     83,924
    ssj_ops@calibrated=83,776
    100% 98.6% 83,776 82,621
    90% 90.2% 75,398 75,605
    80% 80.9% 67,021 67,744
    70% 70.0% 58,643 58,646
    60% 60.2% 50,266 50,452
    50% 50.0% 41,888 41,878
    40% 40.2% 33,510 33,704
    30% 30.0% 25,133 25,129
    20% 20.2% 16,755 16,899
    10% 10.3% 8,378 8,633
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,503
    Calibration 2     82,150
    Calibration 3     81,835
    ssj_ops@calibrated=81,993
    100% 98.5% 81,993 80,738
    90% 89.5% 73,794 73,421
    80% 80.7% 65,594 66,152
    70% 68.9% 57,395 56,493
    60% 59.5% 49,196 48,784
    50% 49.8% 40,996 40,860
    40% 39.9% 32,797 32,708
    30% 30.0% 24,598 24,616
    20% 19.7% 16,399 16,128
    10% 10.0% 8,199 8,224
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     80,853
    Calibration 2     80,900
    Calibration 3     81,472
    ssj_ops@calibrated=81,186
    100% 99.0% 81,186 80,391
    90% 90.8% 73,067 73,712
    80% 80.8% 64,949 65,578
    70% 70.4% 56,830 57,156
    60% 60.2% 48,711 48,872
    50% 49.8% 40,593 40,405
    40% 40.5% 32,474 32,840
    30% 30.0% 24,356 24,342
    20% 20.2% 16,237 16,399
    10% 9.7% 8,119 7,837
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,090
    Calibration 2     83,018
    Calibration 3     82,823
    ssj_ops@calibrated=82,921
    100% 98.5% 82,921 81,656
    90% 89.7% 74,629 74,364
    80% 80.2% 66,336 66,508
    70% 69.9% 58,044 57,929
    60% 60.6% 49,752 50,229
    50% 49.6% 41,460 41,153
    40% 40.2% 33,168 33,323
    30% 29.6% 24,876 24,552
    20% 19.9% 16,584 16,499
    10% 9.8% 8,292 8,117
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,329
    Calibration 2     83,668
    Calibration 3     83,330
    ssj_ops@calibrated=83,499
    100% 98.5% 83,499 82,241
    90% 90.1% 75,149 75,273
    80% 80.5% 66,799 67,222
    70% 69.9% 58,449 58,390
    60% 59.5% 50,099 49,677
    50% 49.2% 41,750 41,044
    40% 39.8% 33,400 33,204
    30% 30.4% 25,050 25,360
    20% 19.5% 16,700 16,259
    10% 10.3% 8,350 8,587
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,680
    Calibration 2     82,184
    Calibration 3     82,922
    ssj_ops@calibrated=82,553
    100% 99.0% 82,553 81,704
    90% 89.8% 74,298 74,171
    80% 79.2% 66,042 65,412
    70% 71.7% 57,787 59,197
    60% 59.7% 49,532 49,323
    50% 49.8% 41,276 41,130
    40% 40.6% 33,021 33,520
    30% 29.8% 24,766 24,638
    20% 20.1% 16,511 16,610
    10% 9.6% 8,255 7,912
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,297
    Calibration 2     82,317
    Calibration 3     82,128
    ssj_ops@calibrated=82,223
    100% 98.7% 82,223 81,133
    90% 89.7% 74,000 73,742
    80% 80.1% 65,778 65,861
    70% 70.4% 57,556 57,894
    60% 59.8% 49,334 49,189
    50% 50.3% 41,111 41,338
    40% 39.7% 32,889 32,637
    30% 29.9% 24,667 24,571
    20% 20.0% 16,445 16,436
    10% 9.7% 8,222 7,980
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,878
    Calibration 2     82,173
    Calibration 3     82,331
    ssj_ops@calibrated=82,252
    100% 98.9% 82,252 81,347
    90% 89.3% 74,027 73,488
    80% 80.0% 65,802 65,842
    70% 71.2% 57,576 58,552
    60% 60.3% 49,351 49,627
    50% 49.8% 41,126 40,957
    40% 39.4% 32,901 32,389
    30% 29.7% 24,676 24,410
    20% 20.1% 16,450 16,547
    10% 9.9% 8,225 8,141
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     83,021
    Calibration 2     83,522
    Calibration 3     83,883
    ssj_ops@calibrated=83,703
    100% 99.4% 83,703 83,225
    90% 89.2% 75,332 74,674
    80% 80.4% 66,962 67,315
    70% 69.6% 58,592 58,284
    60% 59.8% 50,222 50,086
    50% 50.2% 41,851 41,990
    40% 40.0% 33,481 33,496
    30% 30.0% 25,111 25,152
    20% 20.1% 16,741 16,817
    10% 9.9% 8,370 8,249
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,741
    Calibration 2     82,213
    Calibration 3     82,616
    ssj_ops@calibrated=82,414
    100% 99.1% 82,414 81,696
    90% 90.0% 74,173 74,212
    80% 80.1% 65,931 66,017
    70% 69.8% 57,690 57,546
    60% 59.9% 49,448 49,397
    50% 49.9% 41,207 41,158
    40% 40.1% 32,966 33,055
    30% 30.3% 24,724 25,006
    20% 19.8% 16,483 16,351
    10% 9.9% 8,241 8,179
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,705
    Calibration 2     82,698
    Calibration 3     82,763
    ssj_ops@calibrated=82,731
    100% 99.1% 82,731 82,014
    90% 90.1% 74,458 74,536
    80% 80.5% 66,185 66,579
    70% 70.3% 57,911 58,126
    60% 60.0% 49,638 49,652
    50% 49.7% 41,365 41,113
    40% 40.2% 33,092 33,236
    30% 29.2% 24,819 24,135
    20% 20.6% 16,546 17,041
    10% 10.4% 8,273 8,595
    Active Idle   0 0

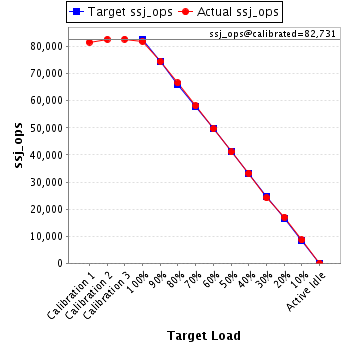

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'OrcaPT-Power.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,578
    Calibration 2     82,155
    Calibration 3     82,270
    ssj_ops@calibrated=82,212
    100% 99.1% 82,212 81,467
    90% 91.2% 73,991 75,012
    80% 80.6% 65,770 66,252
    70% 70.1% 57,549 57,665
    60% 60.2% 49,327 49,453
    50% 49.6% 41,106 40,816
    40% 40.4% 32,885 33,235
    30% 30.4% 24,664 24,975
    20% 19.7% 16,442 16,187
    10% 10.0% 8,221 8,199
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
