Dell Inc. PowerEdge R620 (Intel Xeon E5-2660, 2.2 GHz) ssj_ops@100% = 1,304,143
ssj_ops@100% per JVM = 81,509
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 29, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,313,493
Calibration 2     1,320,421
Calibration 3     1,321,740
ssj_ops@calibrated=1,321,081
100% 98.7% 1,321,081 1,304,143
90% 90.0% 1,188,973 1,189,359
80% 80.1% 1,056,865 1,058,423
70% 70.0% 924,757 924,380
60% 60.1% 792,648 793,480
50% 50.0% 660,540 659,947
40% 40.0% 528,432 528,649
30% 30.0% 396,324 395,736
20% 19.8% 264,216 261,732
10% 10.0% 132,108 132,099
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R620 (Intel Xeon E5-2660, 2.2 GHz)
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3, B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 495
Power Supply Details: Dell P/N 13MD5
Disk Drive: 1 x 100 GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode set in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn853m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XXInitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.2.1
Management Firmware Version: 1.06.06 (build 15)
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • QPI speed set to 6.4 GT/s
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to off
  • System Profile set to Custom
  • CPU Power Management set to System DBPM (DAPC)
  • Memory Frequency set to 1333MHz
  • Intel Turbo Boost enabled
  • Memory Patrol Scrub set to disabled
  • Memory Refresh Rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    OrcaPT-Power.001 80,975
    OrcaPT-Power.002 81,276
    OrcaPT-Power.003 81,655
    OrcaPT-Power.004 80,656
    OrcaPT-Power.005 81,483
    OrcaPT-Power.006 80,324
    OrcaPT-Power.007 81,313
    OrcaPT-Power.008 81,007
    OrcaPT-Power.009 81,794
    OrcaPT-Power.010 81,832
    OrcaPT-Power.011 82,124
    OrcaPT-Power.012 81,665
    OrcaPT-Power.013 81,766
    OrcaPT-Power.014 81,733
    OrcaPT-Power.015 82,459
    OrcaPT-Power.016 82,081
    ssj_ops@100% 1,304,143
    ssj_ops@100% per JVM 81,509

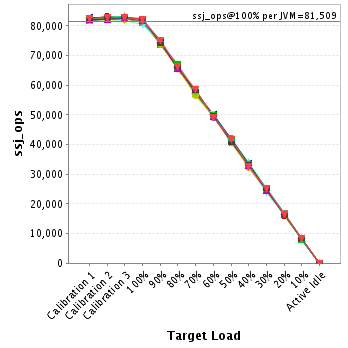

    Graph of per-instance results
    JVM 'OrcaPT-Power.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,180
    Calibration 2     82,624
    Calibration 3     82,504
    ssj_ops@calibrated=82,564
    100% 98.1% 82,564 80,975
    90% 89.5% 74,307 73,880
    80% 79.7% 66,051 65,800
    70% 70.2% 57,795 57,941
    60% 60.2% 49,538 49,690
    50% 49.6% 41,282 40,992
    40% 39.8% 33,026 32,846
    30% 30.1% 24,769 24,816
    20% 20.2% 16,513 16,654
    10% 10.1% 8,256 8,329
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,977
    Calibration 2     82,206
    Calibration 3     82,732
    ssj_ops@calibrated=82,469
    100% 98.6% 82,469 81,276
    90% 90.3% 74,222 74,493
    80% 81.3% 65,975 67,070
    70% 70.1% 57,728 57,817
    60% 59.7% 49,481 49,200
    50% 51.0% 41,234 42,057
    40% 40.0% 32,988 33,028
    30% 30.0% 24,741 24,709
    20% 19.6% 16,494 16,162
    10% 10.0% 8,247 8,262
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,994
    Calibration 2     83,014
    Calibration 3     83,216
    ssj_ops@calibrated=83,115
    100% 98.2% 83,115 81,655
    90% 90.4% 74,803 75,139
    80% 79.5% 66,492 66,059
    70% 70.4% 58,180 58,488
    60% 59.5% 49,869 49,469
    50% 50.2% 41,557 41,728
    40% 40.8% 33,246 33,919
    30% 30.4% 24,934 25,258
    20% 20.0% 16,623 16,646
    10% 10.1% 8,311 8,370
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,867
    Calibration 2     81,787
    Calibration 3     81,962
    ssj_ops@calibrated=81,875
    100% 98.5% 81,875 80,656
    90% 90.4% 73,687 74,046
    80% 79.6% 65,500 65,137
    70% 69.6% 57,312 56,990
    60% 60.9% 49,125 49,898
    50% 49.4% 40,937 40,463
    40% 40.2% 32,750 32,941
    30% 30.0% 24,562 24,589
    20% 19.2% 16,375 15,683
    10% 9.7% 8,187 7,981
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,349
    Calibration 2     82,378
    Calibration 3     82,663
    ssj_ops@calibrated=82,520
    100% 98.7% 82,520 81,483
    90% 90.0% 74,268 74,249
    80% 81.2% 66,016 66,973
    70% 69.9% 57,764 57,658
    60% 59.6% 49,512 49,213
    50% 50.1% 41,260 41,354
    40% 39.6% 33,008 32,637
    30% 29.9% 24,756 24,671
    20% 19.9% 16,504 16,454
    10% 10.1% 8,252 8,333
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,824
    Calibration 2     82,102
    Calibration 3     81,897
    ssj_ops@calibrated=81,999
    100% 98.0% 81,999 80,324
    90% 91.0% 73,799 74,578
    80% 80.3% 65,599 65,884
    70% 70.5% 57,399 57,804
    60% 61.0% 49,199 50,037
    50% 49.8% 41,000 40,842
    40% 39.6% 32,800 32,460
    30% 29.1% 24,600 23,896
    20% 19.6% 16,400 16,058
    10% 9.9% 8,200 8,154
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,867
    Calibration 2     82,701
    Calibration 3     82,778
    ssj_ops@calibrated=82,739
    100% 98.3% 82,739 81,313
    90% 90.2% 74,465 74,619
    80% 80.2% 66,191 66,317
    70% 70.0% 57,917 57,939
    60% 59.7% 49,644 49,377
    50% 49.8% 41,370 41,206
    40% 40.2% 33,096 33,225
    30% 30.2% 24,822 24,978
    20% 19.9% 16,548 16,496
    10% 10.1% 8,274 8,325
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,716
    Calibration 2     82,194
    Calibration 3     82,454
    ssj_ops@calibrated=82,324
    100% 98.4% 82,324 81,007
    90% 90.4% 74,091 74,445
    80% 80.2% 65,859 66,033
    70% 70.8% 57,627 58,295
    60% 60.2% 49,394 49,579
    50% 50.7% 41,162 41,755
    40% 40.1% 32,929 33,017
    30% 29.7% 24,697 24,457
    20% 19.9% 16,465 16,409
    10% 10.0% 8,232 8,208
    Active Idle   0 0
    Graph of results

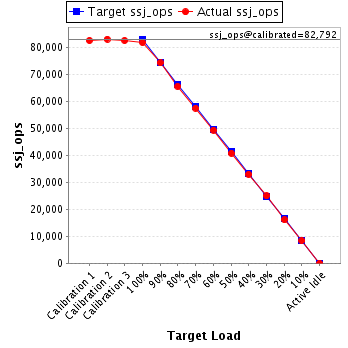

    JVM 'OrcaPT-Power.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,562
    Calibration 2     83,041
    Calibration 3     82,543
    ssj_ops@calibrated=82,792
    100% 98.8% 82,792 81,794
    90% 89.7% 74,513 74,270
    80% 79.2% 66,234 65,565
    70% 69.5% 57,954 57,503
    60% 59.6% 49,675 49,374
    50% 49.2% 41,396 40,751
    40% 39.8% 33,117 32,985
    30% 30.1% 24,838 24,940
    20% 19.4% 16,558 16,070
    10% 10.1% 8,279 8,366
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,987
    Calibration 2     82,877
    Calibration 3     82,925
    ssj_ops@calibrated=82,901
    100% 98.7% 82,901 81,832
    90% 89.8% 74,611 74,437
    80% 79.8% 66,321 66,114
    70% 68.9% 58,031 57,088
    60% 60.4% 49,740 50,105
    50% 50.4% 41,450 41,747
    40% 40.4% 33,160 33,457
    30% 29.9% 24,870 24,779
    20% 19.8% 16,580 16,386
    10% 9.9% 8,290 8,221
    Active Idle   0 0
    Graph of results

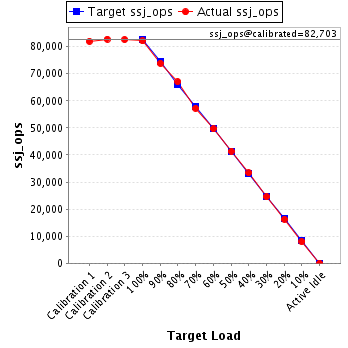

    JVM 'OrcaPT-Power.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,014
    Calibration 2     82,790
    Calibration 3     82,617
    ssj_ops@calibrated=82,703
    100% 99.3% 82,703 82,124
    90% 89.3% 74,433 73,868
    80% 81.1% 66,163 67,038
    70% 69.3% 57,892 57,283
    60% 60.1% 49,622 49,665
    50% 50.0% 41,352 41,385
    40% 40.3% 33,081 33,354
    30% 29.6% 24,811 24,510
    20% 19.7% 16,541 16,269
    10% 9.7% 8,270 8,008
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,086
    Calibration 2     82,293
    Calibration 3     82,270
    ssj_ops@calibrated=82,282
    100% 99.3% 82,282 81,665
    90% 89.7% 74,053 73,766
    80% 80.4% 65,825 66,131
    70% 68.9% 57,597 56,703
    60% 60.1% 49,369 49,439
    50% 49.3% 41,141 40,581
    40% 39.2% 32,913 32,236
    30% 29.8% 24,684 24,489
    20% 20.1% 16,456 16,570
    10% 10.3% 8,228 8,445
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,024
    Calibration 2     82,004
    Calibration 3     82,533
    ssj_ops@calibrated=82,269
    100% 99.4% 82,269 81,766
    90% 90.4% 74,042 74,334
    80% 79.7% 65,815 65,591
    70% 71.0% 57,588 58,393
    60% 60.3% 49,361 49,616
    50% 50.2% 41,134 41,335
    40% 40.0% 32,907 32,943
    30% 29.8% 24,681 24,550
    20% 20.0% 16,454 16,441
    10% 10.3% 8,227 8,487
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,555
    Calibration 2     82,877
    Calibration 3     83,014
    ssj_ops@calibrated=82,945
    100% 98.5% 82,945 81,733
    90% 89.5% 74,651 74,272
    80% 79.9% 66,356 66,237
    70% 69.9% 58,062 57,995
    60% 60.1% 49,767 49,849
    50% 49.9% 41,473 41,390
    40% 40.3% 33,178 33,425
    30% 30.2% 24,884 25,071
    20% 20.1% 16,589 16,700
    10% 9.6% 8,295 8,004
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     81,858
    Calibration 2     82,548
    Calibration 3     82,902
    ssj_ops@calibrated=82,725
    100% 99.7% 82,725 82,459
    90% 89.3% 74,452 73,897
    80% 80.0% 66,180 66,146
    70% 70.0% 57,907 57,888
    60% 60.4% 49,635 49,929
    50% 49.1% 41,362 40,657
    40% 40.4% 33,090 33,444
    30% 30.1% 24,817 24,885
    20% 19.8% 16,545 16,406
    10% 9.9% 8,272 8,179
    Active Idle   0 0
    Graph of results
    JVM 'OrcaPT-Power.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     82,633
    Calibration 2     82,988
    Calibration 3     82,731
    ssj_ops@calibrated=82,860
    100% 99.1% 82,860 82,081
    90% 90.6% 74,574 75,063
    80% 80.0% 66,288 66,329
    70% 70.7% 58,002 58,594
    60% 59.2% 49,716 49,041
    50% 50.3% 41,430 41,705
    40% 39.5% 33,144 32,733
    30% 30.3% 24,858 25,137
    20% 19.7% 16,572 16,329
    10% 10.2% 8,286 8,428
    Active Idle   0 0
    Graph of results
