Dell Inc. PowerEdge R620 (Intel Xeon E5-2660, 2.2 GHz) SPECpower_ssj2008 = 4,577 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 29, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 270 22.9
Calibration 2 268 22.4
Calibration 3 268 22.2
100% 263 21.9
90% 225 21.9
80% 195 21.9
70% 171 22.1
60% 149 22.2
50% 132 22.4
40% 121 22.3
30% 102 22.2
20% 89.6 22.2
10% 79.3 22.1
Active Idle 56.1 22.1

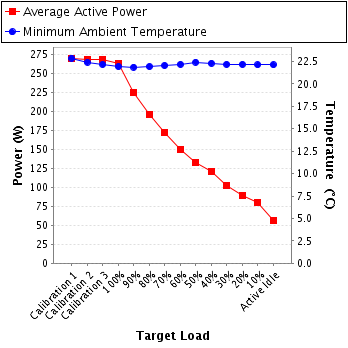

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 5182274
Date of Calibration: 23-Apr-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.30.02
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.33 2.0 0.986 270 0.4%
Calibration 2 206 300.0 1.31 2.0 0.993 268 0.3%
Calibration 3 206 300.0 1.32 2.0 0.986 268 0.4%
100% 206 300.0 1.30 2.0 0.983 263 0.4%
90% 206 300.0 1.11 2.0 0.980 225 0.4%
80% 206 300.0 0.969 2.0 0.979 195 0.4%
70% 206 300.0 0.854 1.0 0.976 171 0.3%
60% 206 300.0 0.748 1.0 0.972 149 0.4%
50% 206 300.0 0.667 1.0 0.965 132 0.4%
40% 206 300.0 0.617 1.0 0.958 121 0.4%
30% 206 300.0 0.523 0.5 0.953 102 0.3%
20% 206 300.0 0.462 0.5 0.943 89.6 0.3%
10% 206 300.0 0.415 0.5 0.929 79.3 0.4%
Active Idle 206 300.0 0.310 0.5 0.879 56.1 0.5%
Power details for pwr1
