Fujitsu PRIMERGY RX200 S7 (Intel Xeon E5-2660) | SPECpower_ssj2008 = 4,722 overall ssj_ops/watt | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Apr 2, 2012 |
Hardware Availability: | Mar-2012 | Software Availability: | Dec-2011 | Publication: | Apr 25, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

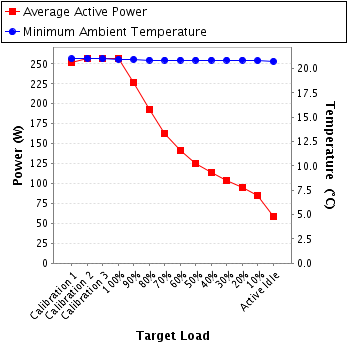

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 252 | 21.0 |
Calibration 2 | 257 | 21.1 |
Calibration 3 | 257 | 21.0 |
100% | 257 | 20.9 |
90% | 227 | 20.9 |
80% | 193 | 20.9 |
70% | 163 | 20.9 |
60% | 141 | 20.9 |
50% | 125 | 20.9 |
40% | 113 | 20.9 |
30% | 104 | 20.9 |
20% | 94.7 | 20.9 |
10% | 85.6 | 20.8 |
Active Idle | 58.6 | 20.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
Model: | LMG95 |
Serial Number: | 11780806 |
Connectivity: | RS-232 |
Input Connection: | Default (20A) |
Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
Accredited by: | Kalibrierdienst Stenger |
Calibration Label: | 11080967 |
Date of Calibration: | 03-Aug-2011 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | Connected to PSU-1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 227 | 250.0 | 1.12 | 2.5 | 0.991 | 252 | 0.1% |
Calibration 2 | 227 | 250.0 | 1.14 | 2.5 | 0.991 | 257 | 0.1% |
Calibration 3 | 227 | 250.0 | 1.14 | 2.5 | 0.991 | 257 | 0.1% |
100% | 227 | 250.0 | 1.14 | 2.5 | 0.991 | 257 | 0.1% |
90% | 227 | 250.0 | 1.02 | 2.5 | 0.987 | 227 | 0.1% |
80% | 227 | 250.0 | 0.872 | 2.5 | 0.983 | 193 | 0.2% |
70% | 228 | 250.0 | 0.731 | 2.5 | 0.983 | 163 | 0.2% |
60% | 228 | 250.0 | 0.631 | 2.5 | 0.982 | 141 | 0.2% |
50% | 228 | 250.0 | 0.559 | 2.5 | 0.980 | 125 | 0.3% |
40% | 228 | 250.0 | 0.509 | 0.6 | 0.977 | 113 | 0.1% |
30% | 228 | 250.0 | 0.466 | 0.6 | 0.974 | 104 | 0.1% |
20% | 229 | 250.0 | 0.427 | 0.6 | 0.970 | 94.7 | 0.1% |
10% | 229 | 250.0 | 0.387 | 0.6 | 0.965 | 85.6 | 0.1% |
Active Idle | 229 | 250.0 | 0.273 | 0.6 | 0.935 | 58.6 | 0.1% |
