SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 4,830 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 21, 2012 |
| Hardware Availability: | Mar-2012 | Software Availability: | Jan-2010 | Publication: | May 2, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

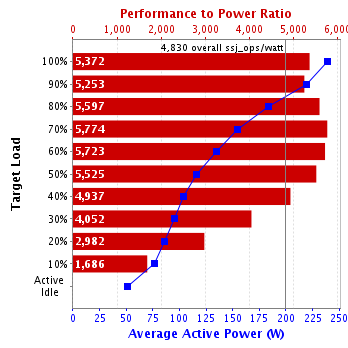

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.2% | 1,282,967 | 239 | 5,372 |
| 90% | 90.1% | 1,153,696 | 220 | 5,253 |
| 80% | 80.3% | 1,028,564 | 184 | 5,597 |
| 70% | 69.8% | 893,774 | 155 | 5,774 |
| 60% | 60.1% | 770,436 | 135 | 5,723 |
| 50% | 50.1% | 641,102 | 116 | 5,525 |
| 40% | 40.0% | 512,836 | 104 | 4,937 |
| 30% | 30.1% | 385,809 | 95.2 | 4,052 |
| 20% | 19.9% | 255,376 | 85.6 | 2,982 |
| 10% | 10.0% | 128,434 | 76.2 | 1,686 |
| Active Idle | 0 | 51.6 | 0 | |
| ∑ssj_ops / ∑power = | 4,830 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | RH2288 V2 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2660 |
| CPU Characteristics: | 8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz) |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 48 |
| # and size of DIMM: | 6 x 8 GB |
| Memory Details: | 8GB 2Rx8 PC3L-12800R ECC |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Huawei P/N PW98080438 |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn853m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC00000000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1024 |
| JVM Maximum Heap (MB): | 1024 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | V009 |
| Management Firmware Version: | 3.00 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | Tecal RH2285 Rack Server |
| CPU Description: | Intel Xeon E5620 2.26 GHz |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 SP2 |
| JVM Vendor: | Oracle |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 (build 20.5-b03, mixed mode) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K630156 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | B11004997-0007 |
| Date of Calibration: | 20-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 239 | 23.7 |
| 90% | 220 | 23.6 |
| 80% | 184 | 23.6 |
| 70% | 155 | 23.8 |
| 60% | 135 | 23.7 |
| 50% | 116 | 23.7 |
| 40% | 104 | 23.8 |
| 30% | 95.2 | 23.8 |
| 20% | 85.6 | 23.6 |
| 10% | 76.2 | 23.7 |
| Active Idle | 51.6 | 23.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 50 Hz / 1 phase / 2 wires | 23.6 | 101 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,233,380 | ||
| Calibration 2 | 1,278,759 | ||
| Calibration 3 | 1,283,030 | ||
| ssj_ops@calibrated=1,280,894 | |||
| 100% | 100.2% | 1,280,894 | 1,282,967 |
| 90% | 90.1% | 1,152,805 | 1,153,696 |
| 80% | 80.3% | 1,024,715 | 1,028,564 |
| 70% | 69.8% | 896,626 | 893,774 |
| 60% | 60.1% | 768,537 | 770,436 |
| 50% | 50.1% | 640,447 | 641,102 |
| 40% | 40.0% | 512,358 | 512,836 |
| 30% | 30.1% | 384,268 | 385,809 |
| 20% | 19.9% | 256,179 | 255,376 |
| 10% | 10.0% | 128,089 | 128,434 |
| Active Idle | 0 | 0 | |
