Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,269,386
ssj_ops@100% per JVM = 158,673
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 20, 2012
Hardware Availability: Mar-2012 Software Availability: Jan-2010 Publication: May 2, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,250,272
Calibration 2     1,269,618
Calibration 3     1,268,041
ssj_ops@calibrated=1,268,830
100% 100.0% 1,268,830 1,269,386
90% 90.0% 1,141,947 1,142,371
80% 80.0% 1,015,064 1,014,902
70% 69.9% 888,181 887,198
60% 60.1% 761,298 762,863
50% 49.7% 634,415 631,232
40% 39.9% 507,532 506,246
30% 30.3% 380,649 384,018
20% 20.0% 253,766 253,888
10% 10.0% 126,883 127,270
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8 GB
Memory Details: 8GB 2Rx8 PC3L-12800R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B4MJLORFNOP.001 158,798
WIN-B4MJLORFNOP.002 158,370
WIN-B4MJLORFNOP.003 157,914
WIN-B4MJLORFNOP.004 159,454
WIN-B4MJLORFNOP.005 158,851
WIN-B4MJLORFNOP.006 158,333
WIN-B4MJLORFNOP.007 158,193
WIN-B4MJLORFNOP.008 159,472
ssj_ops@100% 1,269,386
ssj_ops@100% per JVM 158,673

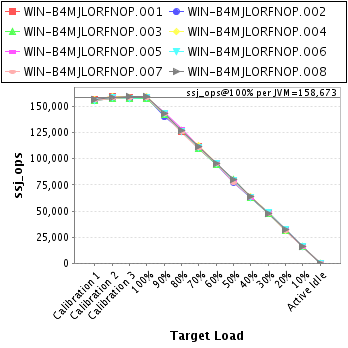

Graph of per-instance results
JVM 'WIN-B4MJLORFNOP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,945
Calibration 2     159,488
Calibration 3     158,688
ssj_ops@calibrated=159,088
100% 99.8% 159,088 158,798
90% 89.9% 143,179 143,003
80% 79.5% 127,271 126,450
70% 70.1% 111,362 111,508
60% 60.1% 95,453 95,567
50% 49.7% 79,544 79,086
40% 39.5% 63,635 62,825
30% 30.5% 47,726 48,458
20% 20.3% 31,818 32,239
10% 9.9% 15,909 15,818
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,485
Calibration 2     157,674
Calibration 3     157,676
ssj_ops@calibrated=157,675
100% 100.4% 157,675 158,370
90% 88.8% 141,907 140,036
80% 80.3% 126,140 126,651
70% 69.5% 110,372 109,518
60% 60.2% 94,605 94,917
50% 49.3% 78,837 77,755
40% 39.9% 63,070 62,867
30% 30.0% 47,302 47,305
20% 20.3% 31,535 31,974
10% 9.9% 15,767 15,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,709
Calibration 2     158,168
Calibration 3     157,849
ssj_ops@calibrated=158,008
100% 99.9% 158,008 157,914
90% 90.4% 142,207 142,788
80% 80.3% 126,406 126,909
70% 69.7% 110,606 110,167
60% 59.9% 94,805 94,681
50% 50.9% 79,004 80,389
40% 40.1% 63,203 63,348
30% 30.3% 47,402 47,813
20% 19.9% 31,602 31,444
10% 10.2% 15,801 16,077
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,073
Calibration 2     159,893
Calibration 3     158,932
ssj_ops@calibrated=159,412
100% 100.0% 159,412 159,454
90% 90.0% 143,471 143,546
80% 80.0% 127,530 127,527
70% 70.5% 111,589 112,464
60% 59.9% 95,647 95,567
50% 49.5% 79,706 78,882
40% 39.9% 63,765 63,639
30% 30.2% 47,824 48,117
20% 19.7% 31,882 31,391
10% 10.0% 15,941 15,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,832
Calibration 2     158,822
Calibration 3     159,033
ssj_ops@calibrated=158,927
100% 100.0% 158,927 158,851
90% 90.7% 143,035 144,142
80% 81.0% 127,142 128,778
70% 70.3% 111,249 111,722
60% 60.3% 95,356 95,826
50% 49.6% 79,464 78,843
40% 39.5% 63,571 62,705
30% 30.5% 47,678 48,406
20% 19.8% 31,785 31,537
10% 9.9% 15,893 15,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,474
Calibration 2     158,435
Calibration 3     157,989
ssj_ops@calibrated=158,212
100% 100.1% 158,212 158,333
90% 90.3% 142,391 142,937
80% 79.6% 126,569 125,870
70% 69.9% 110,748 110,590
60% 60.3% 94,927 95,427
50% 50.1% 79,106 79,246
40% 40.1% 63,285 63,413
30% 30.7% 47,464 48,599
20% 20.2% 31,642 31,933
10% 10.1% 15,821 15,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,259
Calibration 2     158,049
Calibration 3     158,286
ssj_ops@calibrated=158,167
100% 100.0% 158,167 158,193
90% 90.2% 142,350 142,723
80% 79.3% 126,534 125,385
70% 69.5% 110,717 109,888
60% 60.1% 94,900 95,112
50% 48.7% 79,084 77,094
40% 40.1% 63,267 63,482
30% 30.1% 47,450 47,534
20% 19.8% 31,633 31,273
10% 10.0% 15,817 15,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-B4MJLORFNOP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,496
Calibration 2     159,089
Calibration 3     159,591
ssj_ops@calibrated=159,340
100% 100.1% 159,340 159,472
90% 89.9% 143,406 143,197
80% 79.9% 127,472 127,331
70% 69.9% 111,538 111,340
60% 60.1% 95,604 95,765
50% 50.2% 79,670 79,937
40% 40.1% 63,736 63,967
30% 30.0% 47,802 47,787
20% 20.1% 31,868 32,098
10% 10.2% 15,934 16,302
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
