Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,264,395
ssj_ops@100% per JVM = 79,025
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,263,277
Calibration 2     1,271,020
Calibration 3     1,268,703
ssj_ops@calibrated=1,269,861
100% 99.6% 1,269,861 1,264,395
90% 90.2% 1,142,875 1,145,381
80% 79.8% 1,015,889 1,012,852
70% 70.2% 888,903 891,385
60% 60.1% 761,917 763,482
50% 50.0% 634,931 634,510
40% 40.1% 507,945 509,641
30% 30.0% 380,958 380,758
20% 20.0% 253,972 253,971
10% 10.0% 126,986 126,719
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-15.001 80,377
    M620-15.002 78,440
    M620-15.003 78,589
    M620-15.004 78,642
    M620-15.005 78,879
    M620-15.006 78,203
    M620-15.007 78,262
    M620-15.008 79,621
    M620-15.009 80,406
    M620-15.010 79,179
    M620-15.011 79,661
    M620-15.012 79,341
    M620-15.013 78,310
    M620-15.014 78,793
    M620-15.015 78,901
    M620-15.016 78,792
    ssj_ops@100% 1,264,395
    ssj_ops@100% per JVM 79,025

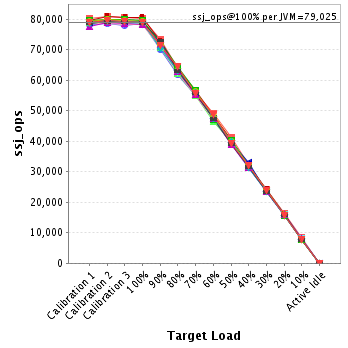

    Graph of per-instance results
    JVM 'M620-15.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     80,318
    Calibration 2     80,876
    Calibration 3     80,491
    ssj_ops@calibrated=80,683
    100% 99.6% 80,683 80,377
    90% 91.1% 72,615 73,485
    80% 79.5% 64,547 64,165
    70% 69.5% 56,478 56,108
    60% 60.9% 48,410 49,104
    50% 50.9% 40,342 41,105
    40% 39.9% 32,273 32,226
    30% 29.8% 24,205 24,063
    20% 20.4% 16,137 16,428
    10% 10.3% 8,068 8,318
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,130
    Calibration 2     78,531
    Calibration 3     78,088
    ssj_ops@calibrated=78,309
    100% 100.2% 78,309 78,440
    90% 89.4% 70,478 69,970
    80% 78.9% 62,647 61,793
    70% 70.1% 54,816 54,870
    60% 60.7% 46,985 47,551
    50% 49.7% 39,155 38,918
    40% 40.0% 31,324 31,323
    30% 30.2% 23,493 23,678
    20% 19.9% 15,662 15,578
    10% 10.0% 7,831 7,812
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,789
    Calibration 2     78,850
    Calibration 3     78,909
    ssj_ops@calibrated=78,879
    100% 99.6% 78,879 78,589
    90% 89.7% 70,991 70,725
    80% 79.1% 63,104 62,356
    70% 69.8% 55,216 55,051
    60% 59.1% 47,328 46,612
    50% 50.0% 39,440 39,431
    40% 40.2% 31,552 31,691
    30% 30.2% 23,664 23,830
    20% 20.4% 15,776 16,078
    10% 10.0% 7,888 7,925
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,212
    Calibration 2     79,608
    Calibration 3     79,710
    ssj_ops@calibrated=79,659
    100% 98.7% 79,659 78,642
    90% 89.9% 71,693 71,578
    80% 80.0% 63,727 63,689
    70% 69.7% 55,761 55,508
    60% 61.2% 47,795 48,712
    50% 50.5% 39,830 40,209
    40% 40.8% 31,864 32,515
    30% 30.1% 23,898 23,949
    20% 19.8% 15,932 15,791
    10% 9.8% 7,966 7,833
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,262
    Calibration 2     78,929
    Calibration 3     79,076
    ssj_ops@calibrated=79,003
    100% 99.8% 79,003 78,879
    90% 90.7% 71,102 71,642
    80% 80.6% 63,202 63,701
    70% 70.0% 55,302 55,310
    60% 60.6% 47,402 47,902
    50% 49.2% 39,501 38,872
    40% 39.6% 31,601 31,256
    30% 30.2% 23,701 23,825
    20% 19.9% 15,801 15,759
    10% 10.1% 7,900 8,016
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,614
    Calibration 2     78,901
    Calibration 3     78,896
    ssj_ops@calibrated=78,899
    100% 99.1% 78,899 78,203
    90% 90.7% 71,009 71,533
    80% 79.4% 63,119 62,637
    70% 70.4% 55,229 55,559
    60% 59.7% 47,339 47,111
    50% 49.8% 39,449 39,278
    40% 39.8% 31,560 31,394
    30% 29.9% 23,670 23,626
    20% 20.2% 15,780 15,912
    10% 10.2% 7,890 8,053
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,706
    Calibration 2     78,448
    Calibration 3     78,163
    ssj_ops@calibrated=78,305
    100% 99.9% 78,305 78,262
    90% 89.9% 70,475 70,368
    80% 79.9% 62,644 62,575
    70% 70.1% 54,814 54,910
    60% 60.3% 46,983 47,254
    50% 50.6% 39,153 39,625
    40% 40.8% 31,322 31,916
    30% 30.4% 23,492 23,774
    20% 20.2% 15,661 15,828
    10% 10.0% 7,831 7,857
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,371
    Calibration 2     79,815
    Calibration 3     79,996
    ssj_ops@calibrated=79,906
    100% 99.6% 79,906 79,621
    90% 89.0% 71,915 71,120
    80% 79.9% 63,925 63,871
    70% 70.2% 55,934 56,132
    60% 60.1% 47,943 47,985
    50% 50.4% 39,953 40,255
    40% 39.1% 31,962 31,267
    30% 30.3% 23,972 24,190
    20% 20.1% 15,981 16,030
    10% 10.1% 7,991 8,037
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,660
    Calibration 2     80,936
    Calibration 3     80,492
    ssj_ops@calibrated=80,714
    100% 99.6% 80,714 80,406
    90% 90.2% 72,642 72,784
    80% 79.1% 64,571 63,884
    70% 70.1% 56,500 56,572
    60% 59.9% 48,428 48,319
    50% 50.0% 40,357 40,360
    40% 39.9% 32,286 32,169
    30% 29.9% 24,214 24,169
    20% 19.7% 16,143 15,891
    10% 9.8% 8,071 7,941
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,782
    Calibration 2     79,538
    Calibration 3     79,374
    ssj_ops@calibrated=79,456
    100% 99.7% 79,456 79,179
    90% 90.8% 71,511 72,125
    80% 79.6% 63,565 63,272
    70% 70.2% 55,619 55,770
    60% 59.6% 47,674 47,322
    50% 49.7% 39,728 39,461
    40% 41.5% 31,783 32,948
    30% 29.7% 23,837 23,562
    20% 19.8% 15,891 15,750
    10% 9.8% 7,946 7,770
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,417
    Calibration 2     79,947
    Calibration 3     79,820
    ssj_ops@calibrated=79,883
    100% 99.7% 79,883 79,661
    90% 90.4% 71,895 72,238
    80% 80.7% 63,907 64,458
    70% 70.8% 55,918 56,585
    60% 58.9% 47,930 47,016
    50% 50.3% 39,942 40,146
    40% 40.3% 31,953 32,200
    30% 29.8% 23,965 23,824
    20% 19.7% 15,977 15,729
    10% 9.7% 7,988 7,716
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,196
    Calibration 2     79,822
    Calibration 3     79,482
    ssj_ops@calibrated=79,652
    100% 99.6% 79,652 79,341
    90% 89.7% 71,687 71,441
    80% 79.3% 63,722 63,190
    70% 70.7% 55,756 56,290
    60% 60.1% 47,791 47,832
    50% 50.2% 39,826 39,998
    40% 40.3% 31,861 32,073
    30% 30.1% 23,896 23,939
    20% 20.2% 15,930 16,064
    10% 9.9% 7,965 7,925
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,544
    Calibration 2     78,919
    Calibration 3     78,665
    ssj_ops@calibrated=78,792
    100% 99.4% 78,792 78,310
    90% 91.0% 70,913 71,686
    80% 79.7% 63,034 62,761
    70% 70.2% 55,155 55,345
    60% 60.2% 47,275 47,399
    50% 49.3% 39,396 38,879
    40% 40.0% 31,517 31,487
    30% 29.8% 23,638 23,444
    20% 20.2% 15,758 15,932
    10% 10.1% 7,879 7,987
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,539
    Calibration 2     79,137
    Calibration 3     79,201
    ssj_ops@calibrated=79,169
    100% 99.5% 79,169 78,793
    90% 88.9% 71,252 70,342
    80% 79.7% 63,335 63,073
    70% 70.8% 55,418 56,081
    60% 59.7% 47,501 47,296
    50% 50.3% 39,585 39,854
    40% 39.8% 31,668 31,542
    30% 29.9% 23,751 23,671
    20% 19.7% 15,834 15,599
    10% 10.0% 7,917 7,899
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,706
    Calibration 2     79,240
    Calibration 3     78,964
    ssj_ops@calibrated=79,102
    100% 99.7% 79,102 78,901
    90% 92.3% 71,192 72,990
    80% 79.7% 63,282 63,036
    70% 70.5% 55,371 55,783
    60% 59.9% 47,461 47,362
    50% 49.2% 39,551 38,941
    40% 40.1% 31,641 31,717
    30% 29.7% 23,731 23,505
    20% 20.2% 15,820 15,974
    10% 9.7% 7,910 7,708
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-15.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,033
    Calibration 2     79,523
    Calibration 3     79,375
    ssj_ops@calibrated=79,449
    100% 99.2% 79,449 78,792
    90% 89.8% 71,504 71,356
    80% 81.0% 63,559 64,392
    70% 69.9% 55,614 55,513
    60% 61.3% 47,670 48,706
    50% 49.3% 39,725 39,176
    40% 40.2% 31,780 31,917
    30% 29.8% 23,835 23,709
    20% 19.7% 15,890 15,626
    10% 10.0% 7,945 7,920
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
