Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,261,650
ssj_ops@100% per JVM = 78,853
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,263,481
Calibration 2     1,268,916
Calibration 3     1,266,611
ssj_ops@calibrated=1,267,764
100% 99.5% 1,267,764 1,261,650
90% 89.8% 1,140,987 1,138,095
80% 79.9% 1,014,211 1,013,496
70% 69.5% 887,435 881,091
60% 60.0% 760,658 761,052
50% 50.1% 633,882 635,645
40% 40.0% 507,106 507,718
30% 29.9% 380,329 378,990
20% 20.0% 253,553 252,934
10% 10.0% 126,776 127,342
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-08.001 78,722
    M620-08.002 79,088
    M620-08.003 78,580
    M620-08.004 78,818
    M620-08.005 78,713
    M620-08.006 79,290
    M620-08.007 79,686
    M620-08.008 79,607
    M620-08.009 78,845
    M620-08.010 78,956
    M620-08.011 79,391
    M620-08.012 78,845
    M620-08.013 78,377
    M620-08.014 77,408
    M620-08.015 77,900
    M620-08.016 79,423
    ssj_ops@100% 1,261,650
    ssj_ops@100% per JVM 78,853

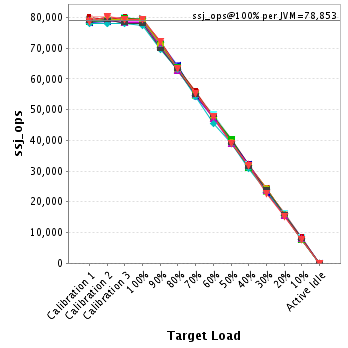

    Graph of per-instance results
    JVM 'M620-08.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,127
    Calibration 2     79,594
    Calibration 3     79,398
    ssj_ops@calibrated=79,496
    100% 99.0% 79,496 78,722
    90% 89.8% 71,546 71,402
    80% 79.7% 63,597 63,346
    70% 70.0% 55,647 55,663
    60% 59.8% 47,697 47,527
    50% 50.2% 39,748 39,914
    40% 40.2% 31,798 31,922
    30% 30.6% 23,849 24,322
    20% 19.7% 15,899 15,649
    10% 9.8% 7,950 7,806
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,968
    Calibration 2     79,928
    Calibration 3     79,822
    ssj_ops@calibrated=79,875
    100% 99.0% 79,875 79,088
    90% 89.9% 71,888 71,842
    80% 80.5% 63,900 64,328
    70% 68.1% 55,913 54,358
    60% 59.5% 47,925 47,557
    50% 49.8% 39,938 39,760
    40% 39.7% 31,950 31,738
    30% 29.6% 23,963 23,670
    20% 20.1% 15,975 16,092
    10% 10.6% 7,988 8,429
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,821
    Calibration 2     79,099
    Calibration 3     78,320
    ssj_ops@calibrated=78,710
    100% 99.8% 78,710 78,580
    90% 90.8% 70,839 71,475
    80% 80.0% 62,968 62,987
    70% 69.5% 55,097 54,715
    60% 61.0% 47,226 47,995
    50% 50.7% 39,355 39,930
    40% 39.6% 31,484 31,172
    30% 29.7% 23,613 23,349
    20% 20.2% 15,742 15,874
    10% 9.9% 7,871 7,791
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,693
    Calibration 2     79,628
    Calibration 3     79,287
    ssj_ops@calibrated=79,458
    100% 99.2% 79,458 78,818
    90% 89.2% 71,512 70,871
    80% 79.8% 63,566 63,373
    70% 69.8% 55,620 55,494
    60% 59.0% 47,675 46,875
    50% 50.4% 39,729 40,043
    40% 40.4% 31,783 32,089
    30% 29.5% 23,837 23,459
    20% 19.8% 15,892 15,739
    10% 9.9% 7,946 7,899
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,751
    Calibration 2     79,190
    Calibration 3     78,641
    ssj_ops@calibrated=78,916
    100% 99.7% 78,916 78,713
    90% 90.1% 71,024 71,134
    80% 79.4% 63,133 62,646
    70% 69.5% 55,241 54,859
    60% 60.8% 47,349 48,013
    50% 50.9% 39,458 40,141
    40% 40.4% 31,566 31,914
    30% 30.3% 23,675 23,948
    20% 19.5% 15,783 15,375
    10% 10.3% 7,892 8,100
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,169
    Calibration 2     79,339
    Calibration 3     79,831
    ssj_ops@calibrated=79,585
    100% 99.6% 79,585 79,290
    90% 89.3% 71,626 71,064
    80% 80.1% 63,668 63,753
    70% 68.7% 55,709 54,659
    60% 60.7% 47,751 48,336
    50% 50.6% 39,792 40,258
    40% 40.2% 31,834 32,024
    30% 29.4% 23,875 23,360
    20% 20.2% 15,917 16,111
    10% 10.3% 7,958 8,225
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     80,156
    Calibration 2     80,352
    Calibration 3     79,742
    ssj_ops@calibrated=80,047
    100% 99.5% 80,047 79,686
    90% 89.4% 72,042 71,539
    80% 79.4% 64,037 63,521
    70% 69.7% 56,033 55,785
    60% 60.2% 48,028 48,206
    50% 50.3% 40,023 40,234
    40% 40.0% 32,019 32,020
    30% 29.6% 24,014 23,690
    20% 20.6% 16,009 16,482
    10% 10.1% 8,005 8,066
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,268
    Calibration 2     79,160
    Calibration 3     79,750
    ssj_ops@calibrated=79,455
    100% 100.2% 79,455 79,607
    90% 90.4% 71,509 71,867
    80% 79.3% 63,564 63,023
    70% 69.6% 55,618 55,335
    60% 60.1% 47,673 47,773
    50% 49.7% 39,727 39,517
    40% 39.9% 31,782 31,700
    30% 30.2% 23,836 23,961
    20% 20.2% 15,891 16,041
    10% 9.9% 7,945 7,900
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,821
    Calibration 2     79,416
    Calibration 3     79,862
    ssj_ops@calibrated=79,639
    100% 99.0% 79,639 78,845
    90% 90.6% 71,675 72,163
    80% 80.1% 63,711 63,775
    70% 70.0% 55,747 55,756
    60% 59.5% 47,783 47,407
    50% 50.4% 39,819 40,158
    40% 40.3% 31,856 32,098
    30% 30.3% 23,892 24,169
    20% 20.1% 15,928 16,020
    10% 10.4% 7,964 8,287
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,508
    Calibration 2     78,544
    Calibration 3     79,393
    ssj_ops@calibrated=78,969
    100% 100.0% 78,969 78,956
    90% 89.1% 71,072 70,355
    80% 81.4% 63,175 64,304
    70% 69.2% 55,278 54,645
    60% 60.0% 47,381 47,363
    50% 50.5% 39,484 39,890
    40% 40.8% 31,587 32,251
    30% 29.1% 23,691 22,996
    20% 19.9% 15,794 15,691
    10% 9.9% 7,897 7,787
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,699
    Calibration 2     79,158
    Calibration 3     79,537
    ssj_ops@calibrated=79,348
    100% 100.1% 79,348 79,391
    90% 89.5% 71,413 71,045
    80% 80.1% 63,478 63,570
    70% 69.8% 55,543 55,347
    60% 60.2% 47,609 47,782
    50% 50.7% 39,674 40,248
    40% 39.2% 31,739 31,089
    30% 30.2% 23,804 23,955
    20% 19.4% 15,870 15,428
    10% 9.9% 7,935 7,858
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,967
    Calibration 2     79,403
    Calibration 3     79,197
    ssj_ops@calibrated=79,300
    100% 99.4% 79,300 78,845
    90% 89.8% 71,370 71,235
    80% 78.9% 63,440 62,603
    70% 69.4% 55,510 55,051
    60% 60.2% 47,580 47,736
    50% 49.5% 39,650 39,290
    40% 39.9% 31,720 31,677
    30% 30.5% 23,790 24,221
    20% 19.8% 15,860 15,708
    10% 9.7% 7,930 7,670
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,895
    Calibration 2     78,854
    Calibration 3     78,400
    ssj_ops@calibrated=78,627
    100% 99.7% 78,627 78,377
    90% 89.7% 70,764 70,499
    80% 79.8% 62,902 62,773
    70% 70.0% 55,039 55,061
    60% 59.9% 47,176 47,064
    50% 49.6% 39,314 39,004
    40% 40.7% 31,451 32,032
    30% 30.0% 23,588 23,567
    20% 19.7% 15,725 15,503
    10% 10.1% 7,863 7,970
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

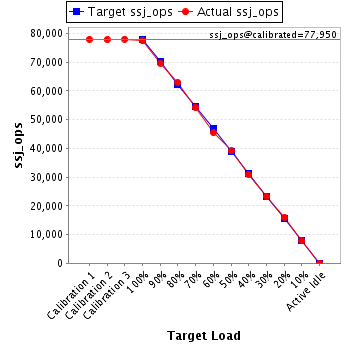

    JVM 'M620-08.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,022
    Calibration 2     77,862
    Calibration 3     78,038
    ssj_ops@calibrated=77,950
    100% 99.3% 77,950 77,408
    90% 89.4% 70,155 69,689
    80% 80.8% 62,360 62,997
    70% 69.7% 54,565 54,293
    60% 58.3% 46,770 45,431
    50% 50.2% 38,975 39,115
    40% 39.7% 31,180 30,911
    30% 30.0% 23,385 23,404
    20% 20.4% 15,590 15,895
    10% 10.0% 7,795 7,795
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,791
    Calibration 2     79,236
    Calibration 3     78,179
    ssj_ops@calibrated=78,708
    100% 99.0% 78,708 77,900
    90% 88.7% 70,837 69,821
    80% 80.3% 62,966 63,195
    70% 69.6% 55,095 54,795
    60% 61.3% 47,225 48,233
    50% 49.6% 39,354 39,064
    40% 39.8% 31,483 31,348
    30% 30.6% 23,612 24,058
    20% 20.3% 15,742 16,001
    10% 10.2% 7,871 7,998
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-08.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,825
    Calibration 2     80,154
    Calibration 3     79,213
    ssj_ops@calibrated=79,683
    100% 99.7% 79,683 79,423
    90% 90.5% 71,715 72,094
    80% 79.4% 63,747 63,303
    70% 69.4% 55,778 55,275
    60% 59.9% 47,810 47,754
    50% 49.0% 39,842 39,079
    40% 39.8% 31,873 31,736
    30% 28.7% 23,905 22,861
    20% 19.2% 15,937 15,326
    10% 9.7% 7,968 7,760
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
