Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,267,711
ssj_ops@100% per JVM = 79,232
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,262,242
Calibration 2     1,270,216
Calibration 3     1,271,124
ssj_ops@calibrated=1,270,670
100% 99.8% 1,270,670 1,267,711
90% 90.2% 1,143,603 1,145,862
80% 79.8% 1,016,536 1,014,575
70% 70.1% 889,469 890,730
60% 60.2% 762,402 764,702
50% 50.4% 635,335 640,083
40% 40.0% 508,268 507,638
30% 30.0% 381,201 381,549
20% 20.0% 254,134 254,289
10% 9.9% 127,067 126,410
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-01.001 78,096
    M620-01.002 80,202
    M620-01.003 79,193
    M620-01.004 79,604
    M620-01.005 78,978
    M620-01.006 79,219
    M620-01.007 79,425
    M620-01.008 78,579
    M620-01.009 79,796
    M620-01.010 79,113
    M620-01.011 79,739
    M620-01.012 79,171
    M620-01.013 79,479
    M620-01.014 77,841
    M620-01.015 78,866
    M620-01.016 80,411
    ssj_ops@100% 1,267,711
    ssj_ops@100% per JVM 79,232
    Graph of per-instance results
    JVM 'M620-01.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,159
    Calibration 2     78,966
    Calibration 3     79,628
    ssj_ops@calibrated=79,297
    100% 98.5% 79,297 78,096
    90% 90.1% 71,367 71,449
    80% 80.4% 63,438 63,734
    70% 70.2% 55,508 55,642
    60% 60.4% 47,578 47,876
    50% 49.7% 39,649 39,378
    40% 40.4% 31,719 32,002
    30% 29.8% 23,789 23,592
    20% 20.3% 15,859 16,087
    10% 9.9% 7,930 7,879
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,592
    Calibration 2     79,559
    Calibration 3     79,770
    ssj_ops@calibrated=79,665
    100% 100.7% 79,665 80,202
    90% 90.1% 71,698 71,785
    80% 79.1% 63,732 62,976
    70% 69.9% 55,765 55,722
    60% 59.3% 47,799 47,206
    50% 50.4% 39,832 40,152
    40% 40.1% 31,866 31,907
    30% 30.5% 23,899 24,270
    20% 20.1% 15,933 16,020
    10% 9.9% 7,966 7,906
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,512
    Calibration 2     79,500
    Calibration 3     79,408
    ssj_ops@calibrated=79,454
    100% 99.7% 79,454 79,193
    90% 90.2% 71,509 71,639
    80% 79.7% 63,563 63,299
    70% 70.4% 55,618 55,957
    60% 60.7% 47,672 48,223
    50% 50.3% 39,727 39,971
    40% 39.3% 31,782 31,187
    30% 30.9% 23,836 24,521
    20% 19.5% 15,891 15,487
    10% 9.9% 7,945 7,850
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,936
    Calibration 2     79,717
    Calibration 3     79,193
    ssj_ops@calibrated=79,455
    100% 100.2% 79,455 79,604
    90% 90.2% 71,510 71,691
    80% 79.9% 63,564 63,479
    70% 69.3% 55,619 55,028
    60% 60.5% 47,673 48,108
    50% 51.0% 39,728 40,519
    40% 39.9% 31,782 31,732
    30% 29.9% 23,837 23,790
    20% 20.0% 15,891 15,903
    10% 10.1% 7,946 7,994
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,990
    Calibration 2     79,588
    Calibration 3     79,480
    ssj_ops@calibrated=79,534
    100% 99.3% 79,534 78,978
    90% 89.4% 71,581 71,104
    80% 80.9% 63,627 64,320
    70% 70.5% 55,674 56,093
    60% 59.7% 47,720 47,492
    50% 50.9% 39,767 40,488
    40% 40.2% 31,814 31,980
    30% 30.2% 23,860 23,993
    20% 20.1% 15,907 15,991
    10% 10.1% 7,953 8,016
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,363
    Calibration 2     79,435
    Calibration 3     79,104
    ssj_ops@calibrated=79,269
    100% 99.9% 79,269 79,219
    90% 90.4% 71,342 71,695
    80% 80.1% 63,416 63,469
    70% 69.8% 55,489 55,314
    60% 60.3% 47,562 47,828
    50% 50.2% 39,635 39,770
    40% 39.7% 31,708 31,471
    30% 29.8% 23,781 23,652
    20% 19.7% 15,854 15,611
    10% 9.7% 7,927 7,670
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,268
    Calibration 2     79,461
    Calibration 3     80,193
    ssj_ops@calibrated=79,827
    100% 99.5% 79,827 79,425
    90% 88.8% 71,844 70,880
    80% 79.5% 63,862 63,455
    70% 70.7% 55,879 56,412
    60% 60.8% 47,896 48,515
    50% 50.2% 39,913 40,091
    40% 39.5% 31,931 31,509
    30% 29.4% 23,948 23,507
    20% 19.9% 15,965 15,901
    10% 10.2% 7,983 8,120
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,885
    Calibration 2     78,328
    Calibration 3     78,311
    ssj_ops@calibrated=78,319
    100% 100.3% 78,319 78,579
    90% 90.4% 70,487 70,769
    80% 79.4% 62,656 62,200
    70% 71.2% 54,824 55,751
    60% 60.2% 46,992 47,185
    50% 50.6% 39,160 39,627
    40% 40.0% 31,328 31,340
    30% 30.1% 23,496 23,573
    20% 20.3% 15,664 15,907
    10% 9.6% 7,832 7,487
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,243
    Calibration 2     79,417
    Calibration 3     79,504
    ssj_ops@calibrated=79,460
    100% 100.4% 79,460 79,796
    90% 91.5% 71,514 72,721
    80% 79.7% 63,568 63,295
    70% 70.4% 55,622 55,962
    60% 60.3% 47,676 47,885
    50% 50.7% 39,730 40,279
    40% 40.1% 31,784 31,878
    30% 30.5% 23,838 24,235
    20% 20.0% 15,892 15,893
    10% 9.8% 7,946 7,804
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,686
    Calibration 2     79,086
    Calibration 3     79,821
    ssj_ops@calibrated=79,454
    100% 99.6% 79,454 79,113
    90% 89.1% 71,508 70,788
    80% 79.1% 63,563 62,819
    70% 69.2% 55,618 54,945
    60% 59.2% 47,672 47,059
    50% 50.2% 39,727 39,890
    40% 39.5% 31,781 31,379
    30% 30.0% 23,836 23,868
    20% 20.2% 15,891 16,063
    10% 9.9% 7,945 7,862
    Active Idle   0 0

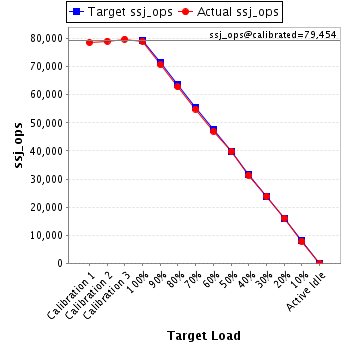

    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,516
    Calibration 2     79,650
    Calibration 3     79,545
    ssj_ops@calibrated=79,597
    100% 100.2% 79,597 79,739
    90% 90.6% 71,638 72,150
    80% 80.7% 63,678 64,237
    70% 70.4% 55,718 56,034
    60% 60.9% 47,758 48,447
    50% 50.8% 39,799 40,445
    40% 39.7% 31,839 31,618
    30% 29.5% 23,879 23,462
    20% 20.4% 15,919 16,267
    10% 10.0% 7,960 7,991
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,225
    Calibration 2     79,705
    Calibration 3     79,420
    ssj_ops@calibrated=79,562
    100% 99.5% 79,562 79,171
    90% 90.2% 71,606 71,733
    80% 80.1% 63,650 63,747
    70% 69.7% 55,694 55,494
    60% 60.9% 47,737 48,458
    50% 50.9% 39,781 40,480
    40% 40.2% 31,825 31,982
    30% 29.6% 23,869 23,543
    20% 20.3% 15,912 16,120
    10% 10.3% 7,956 8,232
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,782
    Calibration 2     79,279
    Calibration 3     79,358
    ssj_ops@calibrated=79,319
    100% 100.2% 79,319 79,479
    90% 90.3% 71,387 71,648
    80% 79.7% 63,455 63,220
    70% 70.2% 55,523 55,702
    60% 60.0% 47,591 47,625
    50% 50.4% 39,659 40,000
    40% 40.5% 31,727 32,147
    30% 30.1% 23,796 23,843
    20% 20.3% 15,864 16,095
    10% 9.7% 7,932 7,729
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,743
    Calibration 2     79,672
    Calibration 3     79,470
    ssj_ops@calibrated=79,571
    100% 97.8% 79,571 77,841
    90% 88.8% 71,614 70,694
    80% 79.8% 63,657 63,514
    70% 70.2% 55,700 55,856
    60% 59.9% 47,743 47,643
    50% 49.4% 39,786 39,299
    40% 40.2% 31,828 31,954
    30% 30.0% 23,871 23,846
    20% 19.4% 15,914 15,443
    10% 10.2% 7,957 8,137
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,802
    Calibration 2     78,685
    Calibration 3     78,722
    ssj_ops@calibrated=78,704
    100% 100.2% 78,704 78,866
    90% 90.2% 70,834 70,963
    80% 79.3% 62,963 62,390
    70% 70.2% 55,093 55,272
    60% 60.3% 47,222 47,471
    50% 50.6% 39,352 39,813
    40% 40.2% 31,482 31,665
    30% 30.4% 23,611 23,962
    20% 19.8% 15,741 15,562
    10% 10.0% 7,870 7,879
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-01.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,541
    Calibration 2     80,166
    Calibration 3     80,198
    ssj_ops@calibrated=80,182
    100% 100.3% 80,182 80,411
    90% 92.5% 72,164 74,152
    80% 80.3% 64,145 64,422
    70% 69.3% 56,127 55,545
    60% 59.5% 48,109 47,680
    50% 49.7% 40,091 39,879
    40% 39.8% 32,073 31,888
    30% 29.8% 24,055 23,890
    20% 19.9% 16,036 15,941
    10% 9.8% 8,018 7,854
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
