Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,280,523
ssj_ops@100% per JVM = 160,065
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Feb 23, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Mar 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,260,154
Calibration 2     1,281,507
Calibration 3     1,283,340
ssj_ops@calibrated=1,282,424
100% 99.9% 1,282,424 1,280,523
90% 90.1% 1,154,181 1,155,216
80% 79.9% 1,025,939 1,025,130
70% 69.8% 897,696 894,870
60% 60.0% 769,454 769,410
50% 50.2% 641,212 643,319
40% 40.1% 512,969 514,216
30% 30.1% 384,727 386,231
20% 19.9% 256,485 255,050
10% 10.0% 128,242 127,897
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-78RLTMG5AUC.001 159,431
WIN-78RLTMG5AUC.002 160,814
WIN-78RLTMG5AUC.003 158,988
WIN-78RLTMG5AUC.004 159,796
WIN-78RLTMG5AUC.005 159,792
WIN-78RLTMG5AUC.006 159,763
WIN-78RLTMG5AUC.007 162,301
WIN-78RLTMG5AUC.008 159,639
ssj_ops@100% 1,280,523
ssj_ops@100% per JVM 160,065
Graph of per-instance results
JVM 'WIN-78RLTMG5AUC.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,207
Calibration 2     159,252
Calibration 3     159,677
ssj_ops@calibrated=159,465
100% 100.0% 159,465 159,431
90% 89.5% 143,518 142,687
80% 79.7% 127,572 127,112
70% 69.6% 111,625 111,064
60% 60.3% 95,679 96,221
50% 50.6% 79,732 80,707
40% 39.9% 63,786 63,622
30% 30.0% 47,839 47,914
20% 20.1% 31,893 32,120
10% 10.0% 15,946 16,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,119
Calibration 2     160,322
Calibration 3     161,092
ssj_ops@calibrated=160,707
100% 100.1% 160,707 160,814
90% 90.2% 144,636 144,987
80% 79.6% 128,565 127,904
70% 69.9% 112,495 112,323
60% 60.3% 96,424 96,920
50% 50.3% 80,353 80,878
40% 39.7% 64,283 63,816
30% 30.1% 48,212 48,343
20% 19.7% 32,141 31,726
10% 10.0% 16,071 16,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,661
Calibration 2     159,713
Calibration 3     159,470
ssj_ops@calibrated=159,592
100% 99.6% 159,592 158,988
90% 90.4% 143,632 144,346
80% 80.2% 127,673 128,055
70% 69.5% 111,714 110,947
60% 60.0% 95,755 95,779
50% 50.0% 79,796 79,844
40% 39.9% 63,837 63,660
30% 30.1% 47,877 48,091
20% 20.2% 31,918 32,234
10% 9.8% 15,959 15,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,149
Calibration 2     160,296
Calibration 3     160,245
ssj_ops@calibrated=160,270
100% 99.7% 160,270 159,796
90% 90.6% 144,243 145,227
80% 80.3% 128,216 128,695
70% 69.7% 112,189 111,719
60% 59.5% 96,162 95,351
50% 49.9% 80,135 80,039
40% 39.8% 64,108 63,786
30% 29.7% 48,081 47,634
20% 20.0% 32,054 32,109
10% 10.0% 16,027 16,077
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,289
Calibration 2     160,476
Calibration 3     160,275
ssj_ops@calibrated=160,375
100% 99.6% 160,375 159,792
90% 90.1% 144,338 144,476
80% 79.9% 128,300 128,212
70% 69.1% 112,263 110,897
60% 60.3% 96,225 96,717
50% 50.1% 80,188 80,316
40% 40.4% 64,150 64,841
30% 30.5% 48,113 48,885
20% 19.7% 32,075 31,570
10% 10.2% 16,038 16,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

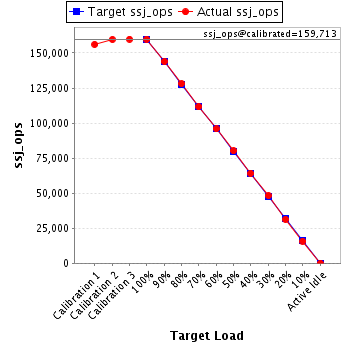

JVM 'WIN-78RLTMG5AUC.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,093
Calibration 2     159,583
Calibration 3     159,843
ssj_ops@calibrated=159,713
100% 100.0% 159,713 159,763
90% 90.1% 143,742 143,887
80% 80.2% 127,770 128,072
70% 69.9% 111,799 111,609
60% 60.0% 95,828 95,866
50% 50.2% 79,857 80,174
40% 40.2% 63,885 64,223
30% 30.2% 47,914 48,248
20% 19.6% 31,943 31,337
10% 9.9% 15,971 15,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,529
Calibration 2     162,104
Calibration 3     162,622
ssj_ops@calibrated=162,363
100% 100.0% 162,363 162,301
90% 89.7% 146,127 145,614
80% 79.7% 129,890 129,387
70% 70.2% 113,654 114,019
60% 59.9% 97,418 97,179
50% 50.1% 81,181 81,420
40% 40.1% 64,945 65,169
30% 30.1% 48,709 48,897
20% 19.9% 32,473 32,233
10% 10.0% 16,236 16,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-78RLTMG5AUC.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,108
Calibration 2     159,761
Calibration 3     160,116
ssj_ops@calibrated=159,939
100% 99.8% 159,939 159,639
90% 90.0% 143,945 143,992
80% 79.8% 127,951 127,692
70% 70.2% 111,957 112,293
60% 59.6% 95,963 95,377
50% 50.0% 79,969 79,939
40% 40.7% 63,975 65,098
30% 30.1% 47,982 48,219
20% 19.8% 31,988 31,720
10% 9.7% 15,994 15,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
