Acer Incorporated Acer AR385 F1 SPECpower_ssj2008 = 2,506 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jan 23, 2011
Hardware Availability: Jan-2012 Software Availability: Dec-2010 Publication: Mar 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 284 24.9
Calibration 2 289 24.4
Calibration 3 290 24.2
100% 290 24.4
90% 274 24.3
80% 259 24.0
70% 242 24.1
60% 224 24.4
50% 204 24.6
40% 180 24.6
30% 157 24.6
20% 137 24.7
10% 120 24.7
Active Idle 89.8 24.7
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-205-07
Date of Calibration: 16-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 217 300.0 1.36 2.0 0.965 284 0.4%
Calibration 2 217 300.0 1.38 2.0 0.966 289 0.4%
Calibration 3 217 300.0 1.38 2.0 0.965 290 0.4%
100% 217 300.0 1.38 2.0 0.966 290 0.4%
90% 217 300.0 1.31 2.0 0.963 274 0.4%
80% 217 300.0 1.24 2.0 0.961 259 0.4%
70% 217 300.0 1.16 2.0 0.958 242 0.4%
60% 217 300.0 1.08 2.0 0.955 224 0.4%
50% 217 300.0 0.990 2.0 0.950 204 0.5%
40% 217 300.0 0.879 1.0 0.942 180 0.3%
30% 217 300.0 0.776 1.0 0.933 157 0.4%
20% 217 300.0 0.685 1.0 0.922 137 0.4%
10% 217 300.0 0.608 1.0 0.910 120 0.4%
Active Idle 217 300.0 0.470 1.0 0.880 89.8 0.5%

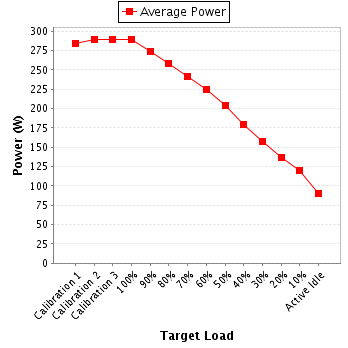

Power details for pwr1
