Supermicro Computer Inc. 1022G-NTF | ssj_ops@100% = 793,535 ssj_ops@100% per JVM = 99,192 |
||||
Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Sep 23, 2011 |
Hardware Availability: | Nov-2011 | Software Availability: | Mar-2011 | Publication: | Nov 16, 2011 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 782,035 | ||
Calibration 2 | 796,260 | ||
Calibration 3 | 797,223 | ||
ssj_ops@calibrated=796,742 | |||
100% | 99.6% | 796,742 | 793,535 |
90% | 89.9% | 717,067 | 716,500 |
80% | 79.9% | 637,393 | 636,783 |
70% | 70.1% | 557,719 | 558,502 |
60% | 59.7% | 478,045 | 475,876 |
50% | 49.9% | 398,371 | 397,880 |
40% | 39.7% | 318,697 | 316,430 |
30% | 30.3% | 239,022 | 241,164 |
20% | 20.0% | 159,348 | 159,029 |
10% | 10.0% | 79,674 | 79,808 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Supermicro Computer Inc. |
Model: | 1022G-NTF |
Form Factor: | 1U |
CPU Name: | AMD Opteron 6262 HE |
CPU Characteristics: | Sixteen-Core, 1.6GHz, 16MB L3 Cache |
CPU Frequency (MHz): | 1600 |
CPU(s) Enabled: | 32 cores, 2 chips, 16 cores/chip |
Hardware Threads: | 32 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 512 KB I + 256 KB D on chip per chip |
Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
Tertiary Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 8 x 4096 MB |
Memory Details: | 4GB 2Rx4 PC3L-10600R ECC CL9; slots 1A, 2A, 3A, 4A, populated for each socket |
Power Supply Quantity and Rating (W): | 1 x 560 |
Power Supply Details: | Supermicro Computer Inc. PWS-563-1H20 |
Disk Drive: | 1 x 256GB Crucial C300 SATA SSD |
Disk Controller: | Integrated AMD SP5100 SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit NIC |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | Direct |
Optical Drives: | Yes |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Power Profile Enabled |
Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
OS Version: | SP1 (64-bit) |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 R2 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xms1875m -Xmn1400m -Xmx1875m -Xaggressive -Xcompressedrefs -Xnoloa -Xlp -XlockReservation -Xgcpolicy:gencon |
JVM Affinity: | start /affinity [node 0/0F,F0|node 1/0F,F0|node 2/0F,F0|node 3/0F,F0] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | H8DGU1.908 |
Management Firmware Version: | 2.23 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64 |

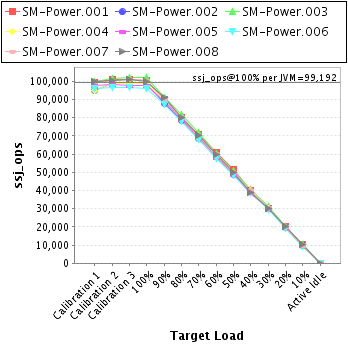

JVM Instance | ssj_ops@100% |
---|---|
SM-Power.001 | 100,506 |
SM-Power.002 | 98,611 |
SM-Power.003 | 102,311 |
SM-Power.004 | 98,604 |
SM-Power.005 | 97,646 |
SM-Power.006 | 95,854 |
SM-Power.007 | 100,307 |
SM-Power.008 | 99,695 |
ssj_ops@100% | 793,535 |
ssj_ops@100% per JVM | 99,192 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 99,157 | ||
Calibration 2 | 101,173 | ||
Calibration 3 | 100,819 | ||
ssj_ops@calibrated=100,996 | |||
100% | 99.5% | 100,996 | 100,506 |
90% | 89.3% | 90,896 | 90,200 |
80% | 79.3% | 80,797 | 80,130 |
70% | 70.3% | 70,697 | 70,973 |
60% | 60.5% | 60,598 | 61,111 |
50% | 50.8% | 50,498 | 51,297 |
40% | 39.5% | 40,398 | 39,891 |
30% | 30.0% | 30,299 | 30,256 |
20% | 19.9% | 20,199 | 20,095 |
10% | 10.2% | 10,100 | 10,318 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,195 | ||
Calibration 2 | 98,611 | ||
Calibration 3 | 98,920 | ||
ssj_ops@calibrated=98,765 | |||
100% | 99.8% | 98,765 | 98,611 |
90% | 89.1% | 88,889 | 88,026 |
80% | 79.6% | 79,012 | 78,599 |
70% | 69.7% | 69,136 | 68,868 |
60% | 60.1% | 59,259 | 59,321 |
50% | 49.4% | 49,383 | 48,831 |
40% | 40.1% | 39,506 | 39,557 |
30% | 30.2% | 29,630 | 29,843 |
20% | 20.1% | 19,753 | 19,826 |
10% | 9.9% | 9,877 | 9,766 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 100,026 | ||
Calibration 2 | 101,762 | ||
Calibration 3 | 102,267 | ||
ssj_ops@calibrated=102,014 | |||
100% | 100.3% | 102,014 | 102,311 |
90% | 89.4% | 91,813 | 91,217 |
80% | 80.1% | 81,612 | 81,737 |
70% | 70.5% | 71,410 | 71,925 |
60% | 59.3% | 61,209 | 60,541 |
50% | 49.9% | 51,007 | 50,934 |
40% | 39.7% | 40,806 | 40,485 |
30% | 30.5% | 30,604 | 31,123 |
20% | 20.0% | 20,403 | 20,424 |
10% | 10.2% | 10,201 | 10,408 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,722 | ||
Calibration 2 | 98,840 | ||
Calibration 3 | 98,806 | ||
ssj_ops@calibrated=98,823 | |||
100% | 99.8% | 98,823 | 98,604 |
90% | 90.5% | 88,941 | 89,437 |
80% | 79.9% | 79,058 | 78,998 |
70% | 69.3% | 69,176 | 68,513 |
60% | 59.9% | 59,294 | 59,190 |
50% | 50.0% | 49,412 | 49,439 |
40% | 40.3% | 39,529 | 39,863 |
30% | 30.5% | 29,647 | 30,094 |
20% | 20.1% | 19,765 | 19,861 |
10% | 9.8% | 9,882 | 9,656 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,542 | ||
Calibration 2 | 98,177 | ||
Calibration 3 | 97,611 | ||
ssj_ops@calibrated=97,894 | |||
100% | 99.7% | 97,894 | 97,646 |
90% | 91.0% | 88,104 | 89,053 |
80% | 80.5% | 78,315 | 78,853 |
70% | 70.8% | 68,525 | 69,313 |
60% | 59.4% | 58,736 | 58,143 |
50% | 49.8% | 48,947 | 48,723 |
40% | 39.4% | 39,157 | 38,595 |
30% | 30.5% | 29,368 | 29,865 |
20% | 19.8% | 19,579 | 19,407 |
10% | 10.2% | 9,789 | 10,024 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,097 | ||
Calibration 2 | 96,910 | ||
Calibration 3 | 96,559 | ||
ssj_ops@calibrated=96,734 | |||
100% | 99.1% | 96,734 | 95,854 |
90% | 90.5% | 87,061 | 87,498 |
80% | 80.7% | 77,388 | 78,095 |
70% | 70.2% | 67,714 | 67,906 |
60% | 59.5% | 58,041 | 57,579 |
50% | 50.2% | 48,367 | 48,515 |
40% | 40.3% | 38,694 | 38,937 |
30% | 30.3% | 29,020 | 29,311 |
20% | 19.7% | 19,347 | 19,086 |
10% | 9.8% | 9,673 | 9,487 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 99,480 | ||
Calibration 2 | 100,252 | ||
Calibration 3 | 101,134 | ||
ssj_ops@calibrated=100,693 | |||
100% | 99.6% | 100,693 | 100,307 |
90% | 89.5% | 90,624 | 90,098 |
80% | 79.9% | 80,554 | 80,416 |
70% | 70.0% | 70,485 | 70,488 |
60% | 59.8% | 60,416 | 60,265 |
50% | 49.6% | 50,346 | 49,990 |
40% | 39.9% | 40,277 | 40,214 |
30% | 30.3% | 30,208 | 30,553 |
20% | 19.8% | 20,139 | 19,936 |
10% | 9.6% | 10,069 | 9,683 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 99,817 | ||
Calibration 2 | 100,536 | ||
Calibration 3 | 101,107 | ||
ssj_ops@calibrated=100,822 | |||
100% | 98.9% | 100,822 | 99,695 |
90% | 90.2% | 90,740 | 90,972 |
80% | 79.3% | 80,657 | 79,955 |
70% | 69.9% | 70,575 | 70,515 |
60% | 59.2% | 60,493 | 59,726 |
50% | 49.7% | 50,411 | 50,151 |
40% | 38.6% | 40,329 | 38,888 |
30% | 29.9% | 30,247 | 30,119 |
20% | 20.2% | 20,164 | 20,395 |
10% | 10.4% | 10,082 | 10,466 |
Active Idle | 0 | 0 |
