SPECpower_ssj2008
Host 'SL170sG6-8' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) | ssj_ops@100% = 912,073 ssj_ops@100% per JVM = 456,037 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Jun 8, 2011 |
| Hardware Availability: | Feb-2011 | Software Availability: | May-2011 | Publication: | Oct 4, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 920,598 | ||
| Calibration 2 | 921,517 | ||
| Calibration 3 | 912,381 | ||
| ssj_ops@calibrated=916,949 | |||
| 100% | 99.5% | 916,949 | 912,073 |
| 90% | 90.1% | 825,254 | 826,383 |
| 80% | 80.3% | 733,559 | 736,573 |
| 70% | 70.3% | 641,864 | 644,230 |
| 60% | 59.9% | 550,169 | 549,192 |
| 50% | 49.9% | 458,475 | 457,106 |
| 40% | 40.2% | 366,780 | 368,216 |
| 30% | 30.1% | 275,085 | 275,676 |
| 20% | 20.1% | 183,390 | 183,884 |
| 10% | 10.0% | 91,695 | 91,533 |
| Active Idle | 0 | 0 | |
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 8 |
| Comment: | N/A |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) |
| Form Factor: | Blade |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | 6 Core, 3.06 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4 GB |
| Memory Details: | 4 GB 2Rx8 PC3L-10600E-9, ECC, slots 1 & 4 are populated on each processor |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | N/A |
| Disk Drive: | 1 x 120 GB SATA SSD, Part Number: 586587-B21 |
| Disk Controller: | Integrated SATA |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Embedded HP NC382i Dual-Port Multifunction Gigabit Server Adapter |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Notes) |
| Operating System (OS): | Windows Server 2008 x64 Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java SE Runtime Environment (build 1.6.0_25-b06), Java HotSpot 64-Bit Server VM (build 20.0-b11, mixed mode) |
| JVM Command-line Options: | -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts |
| JVM Affinity: | start /affinity [FFF, FFF000] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 6144 |
| JVM Maximum Heap (MB): | 6144 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | O40 4/26/2011 |
| Management Firmware Version: | 4.22 2/7/2011 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

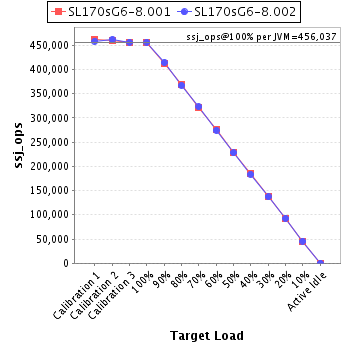

| JVM Instance | ssj_ops@100% |
|---|---|
| SL170sG6-8.001 | 455,920 |
| SL170sG6-8.002 | 456,154 |
| ssj_ops@100% | 912,073 |
| ssj_ops@100% per JVM | 456,037 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 462,292 | ||
| Calibration 2 | 459,887 | ||
| Calibration 3 | 456,189 | ||
| ssj_ops@calibrated=458,038 | |||
| 100% | 99.5% | 458,038 | 455,920 |
| 90% | 90.0% | 412,235 | 412,375 |
| 80% | 80.7% | 366,431 | 369,606 |
| 70% | 70.2% | 320,627 | 321,404 |
| 60% | 60.0% | 274,823 | 275,000 |
| 50% | 50.0% | 229,019 | 229,141 |
| 40% | 40.3% | 183,215 | 184,514 |
| 30% | 30.3% | 137,412 | 138,664 |
| 20% | 20.0% | 91,608 | 91,413 |
| 10% | 10.0% | 45,804 | 45,748 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 458,306 | ||
| Calibration 2 | 461,630 | ||
| Calibration 3 | 456,192 | ||
| ssj_ops@calibrated=458,911 | |||
| 100% | 99.4% | 458,911 | 456,154 |
| 90% | 90.2% | 413,020 | 414,007 |
| 80% | 80.0% | 367,129 | 366,967 |
| 70% | 70.3% | 321,237 | 322,826 |
| 60% | 59.7% | 275,346 | 274,192 |
| 50% | 49.7% | 229,455 | 227,966 |
| 40% | 40.0% | 183,564 | 183,702 |
| 30% | 29.9% | 137,673 | 137,012 |
| 20% | 20.2% | 91,782 | 92,471 |
| 10% | 10.0% | 45,891 | 45,785 |
| Active Idle | 0 | 0 | |
