Hitachi, Ltd. HA8000/TS20 (AL) ssj_ops@100% = 917,438
ssj_ops@100% per JVM = 76,453
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 14, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     902,885
Calibration 2     920,941
Calibration 3     918,981
ssj_ops@calibrated=919,961
100% 99.7% 919,961 917,438
90% 90.0% 827,965 827,820
80% 79.9% 735,969 735,066
70% 70.1% 643,973 645,025
60% 60.2% 551,977 553,441
50% 50.0% 459,981 460,396
40% 39.8% 367,984 366,120
30% 29.9% 275,988 275,096
20% 19.9% 183,992 183,085
10% 10.1% 91,996 92,549
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/TS20 (AL)
Form Factor: Tower
CPU Name: Intel Xeon X5675
CPU Characteristics: Six Core, 3.06GHz, 12MB L3 Cache
CPU Frequency (MHz): 3066
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8192 MB
Memory Details: 8GB 2Rx4 PC3-10600R ECC CL9; slots DIMM_#01,#02.#03,#04,#05 and DIMM_#06 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: DELTA DPS-750HB (Hitachi P/N:GQ-BP2330)
Disk Drive: 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70647G)
Disk Controller: Diskarray Controller Board
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576EB Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000.C00000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 7TCSE-F11
Management Firmware Version: 08.40
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SL6E2P9CGA1.001 75,727
WIN-SL6E2P9CGA1.002 76,960
WIN-SL6E2P9CGA1.003 76,773
WIN-SL6E2P9CGA1.004 76,937
WIN-SL6E2P9CGA1.005 77,189
WIN-SL6E2P9CGA1.006 76,547
WIN-SL6E2P9CGA1.007 75,803
WIN-SL6E2P9CGA1.008 76,510
WIN-SL6E2P9CGA1.009 76,326
WIN-SL6E2P9CGA1.010 76,314
WIN-SL6E2P9CGA1.011 76,409
WIN-SL6E2P9CGA1.012 75,945
ssj_ops@100% 917,438
ssj_ops@100% per JVM 76,453

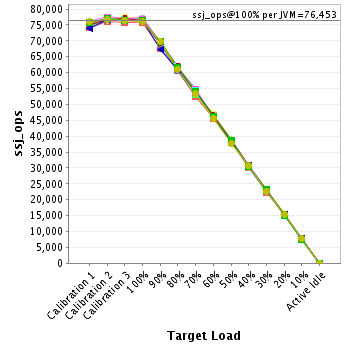

Graph of per-instance results
JVM 'WIN-SL6E2P9CGA1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,254
Calibration 2     75,945
Calibration 3     75,626
ssj_ops@calibrated=75,785
100% 99.9% 75,785 75,727
90% 89.1% 68,207 67,557
80% 80.0% 60,628 60,645
70% 69.1% 53,050 52,382
60% 60.0% 45,471 45,455
50% 50.0% 37,893 37,873
40% 39.9% 30,314 30,225
30% 29.4% 22,736 22,271
20% 20.3% 15,157 15,394
10% 9.8% 7,579 7,459
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,783
Calibration 2     76,811
Calibration 3     76,753
ssj_ops@calibrated=76,782
100% 100.2% 76,782 76,960
90% 89.5% 69,104 68,720
80% 79.0% 61,426 60,688
70% 69.1% 53,747 53,031
60% 60.9% 46,069 46,723
50% 50.1% 38,391 38,500
40% 40.0% 30,713 30,727
30% 30.1% 23,035 23,086
20% 19.6% 15,356 15,079
10% 10.1% 7,678 7,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,222
Calibration 2     76,963
Calibration 3     76,642
ssj_ops@calibrated=76,803
100% 100.0% 76,803 76,773
90% 90.1% 69,123 69,167
80% 79.9% 61,442 61,399
70% 69.3% 53,762 53,226
60% 60.0% 46,082 46,097
50% 50.7% 38,401 38,967
40% 39.7% 30,721 30,464
30% 29.7% 23,041 22,847
20% 20.3% 15,361 15,598
10% 9.8% 7,680 7,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,986
Calibration 2     76,432
Calibration 3     77,552
ssj_ops@calibrated=76,992
100% 99.9% 76,992 76,937
90% 90.0% 69,293 69,324
80% 79.5% 61,594 61,184
70% 69.4% 53,894 53,465
60% 61.2% 46,195 47,116
50% 50.2% 38,496 38,631
40% 39.3% 30,797 30,257
30% 30.3% 23,098 23,343
20% 20.3% 15,398 15,632
10% 10.0% 7,699 7,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,095
Calibration 2     77,704
Calibration 3     77,030
ssj_ops@calibrated=77,367
100% 99.8% 77,367 77,189
90% 89.9% 69,631 69,579
80% 79.6% 61,894 61,609
70% 71.2% 54,157 55,118
60% 59.3% 46,420 45,883
50% 49.9% 38,684 38,642
40% 39.7% 30,947 30,728
30% 30.2% 23,210 23,346
20% 19.4% 15,473 14,995
10% 10.3% 7,737 7,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,473
Calibration 2     76,892
Calibration 3     76,729
ssj_ops@calibrated=76,811
100% 99.7% 76,811 76,547
90% 90.4% 69,129 69,412
80% 80.6% 61,448 61,904
70% 70.7% 53,767 54,300
60% 59.6% 46,086 45,811
50% 50.3% 38,405 38,600
40% 39.2% 30,724 30,105
30% 29.3% 23,043 22,524
20% 19.6% 15,362 15,050
10% 9.8% 7,681 7,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,485
Calibration 2     76,905
Calibration 3     76,250
ssj_ops@calibrated=76,577
100% 99.0% 76,577 75,803
90% 90.1% 68,920 68,989
80% 79.4% 61,262 60,816
70% 71.1% 53,604 54,444
60% 59.5% 45,946 45,534
50% 49.6% 38,289 38,011
40% 39.7% 30,631 30,397
30% 30.2% 22,973 23,128
20% 19.9% 15,315 15,210
10% 10.3% 7,658 7,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,943
Calibration 2     76,504
Calibration 3     76,554
ssj_ops@calibrated=76,529
100% 100.0% 76,529 76,510
90% 90.1% 68,876 68,920
80% 79.9% 61,223 61,129
70% 70.1% 53,570 53,632
60% 60.7% 45,917 46,471
50% 50.0% 38,264 38,281
40% 40.0% 30,612 30,583
30% 29.6% 22,959 22,690
20% 19.5% 15,306 14,903
10% 10.2% 7,653 7,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,016
Calibration 2     76,619
Calibration 3     76,937
ssj_ops@calibrated=76,778
100% 99.4% 76,778 76,326
90% 90.3% 69,100 69,321
80% 80.5% 61,422 61,830
70% 70.3% 53,745 53,977
60% 60.5% 46,067 46,452
50% 50.3% 38,389 38,632
40% 40.0% 30,711 30,707
30% 29.9% 23,033 22,982
20% 20.2% 15,356 15,487
10% 10.3% 7,678 7,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,997
Calibration 2     76,583
Calibration 3     76,261
ssj_ops@calibrated=76,422
100% 99.9% 76,422 76,314
90% 87.9% 68,780 67,206
80% 79.9% 61,138 61,070
70% 70.6% 53,495 53,937
60% 60.6% 45,853 46,335
50% 49.9% 38,211 38,144
40% 40.2% 30,569 30,723
30% 30.1% 22,927 23,003
20% 20.0% 15,284 15,317
10% 10.1% 7,642 7,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,660
Calibration 2     76,915
Calibration 3     76,332
ssj_ops@calibrated=76,624
100% 99.7% 76,624 76,409
90% 91.0% 68,961 69,734
80% 80.6% 61,299 61,742
70% 70.5% 53,637 54,044
60% 60.1% 45,974 46,054
50% 50.3% 38,312 38,539
40% 39.9% 30,650 30,595
30% 30.4% 22,987 23,291
20% 19.6% 15,325 15,009
10% 9.8% 7,662 7,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SL6E2P9CGA1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,970
Calibration 2     76,668
Calibration 3     76,315
ssj_ops@calibrated=76,491
100% 99.3% 76,491 75,945
90% 91.4% 68,842 69,890
80% 79.8% 61,193 61,049
70% 69.9% 53,544 53,469
60% 59.5% 45,895 45,510
50% 49.1% 38,246 37,577
40% 40.0% 30,597 30,609
30% 29.5% 22,947 22,586
20% 20.1% 15,298 15,412
10% 10.1% 7,649 7,727
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
