Hitachi, Ltd. HA8000/TS20 (AL) SPECpower_ssj2008 = 2,149 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 14, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 298 23.9
Calibration 2 301 23.8
Calibration 3 301 23.8
100% 301 23.8
90% 280 23.8
80% 260 23.8
70% 241 23.8
60% 222 23.8
50% 206 23.8
40% 193 23.8
30% 184 23.8
20% 177 23.7
10% 164 23.7
Active Idle 125 23.7

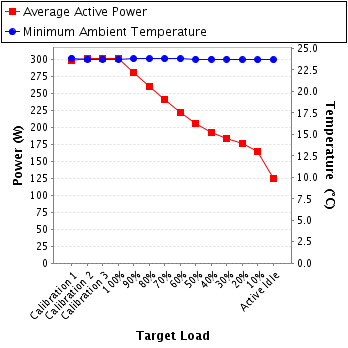

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 99.6 150.0 3.02 5.0 0.992 298 0.4%
Calibration 2 99.6 150.0 3.05 5.0 0.992 301 0.4%
Calibration 3 99.6 150.0 3.05 5.0 0.992 301 0.4%
100% 99.6 150.0 3.05 5.0 0.992 301 0.4%
90% 99.7 150.0 2.84 5.0 0.990 280 0.4%
80% 99.7 150.0 2.64 5.0 0.989 260 0.4%
70% 99.7 150.0 2.45 5.0 0.987 241 0.4%
60% 99.7 150.0 2.25 5.0 0.987 222 0.5%
50% 99.8 150.0 2.09 5.0 0.986 206 0.5%
40% 99.8 150.0 1.96 5.0 0.986 193 0.5%
30% 99.8 150.0 1.87 5.0 0.986 184 0.5%
20% 99.8 150.0 1.80 5.0 0.985 177 0.6%
10% 99.8 150.0 1.67 5.0 0.982 164 0.6%
Active Idle 99.9 150.0 1.28 5.0 0.980 125 0.7%

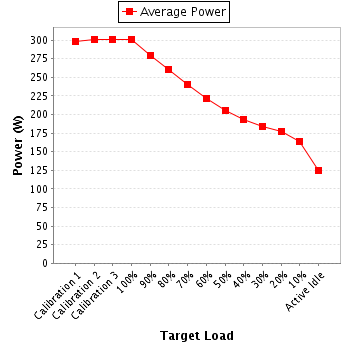

Power details for pwr1
