Hitachi, Ltd. HA8000/RS220 (AL) SPECpower_ssj2008 = 2,204 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jul 10, 2011
Hardware Availability: May-2011 Software Availability: Jun-2010 Publication: Aug 10, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 292 23.8
Calibration 2 293 23.8
Calibration 3 293 23.8
100% 293 23.8
90% 273 23.8
80% 255 23.8
70% 235 23.9
60% 218 23.9
50% 202 23.9
40% 190 23.9
30% 179 23.8
20% 168 23.8
10% 156 23.8
Active Idle 124 23.8

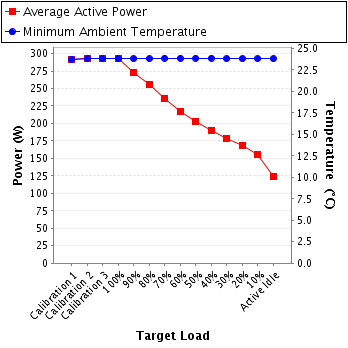

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2011-06-52513
Date of Calibration: 28-Jun-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.51 2.0 0.967 292 0.4%
Calibration 2 200 300.0 1.52 2.0 0.967 293 0.4%
Calibration 3 200 300.0 1.52 2.0 0.967 293 0.4%
100% 200 300.0 1.51 2.0 0.967 293 0.4%
90% 200 300.0 1.41 2.0 0.965 273 0.4%
80% 200 300.0 1.32 2.0 0.962 255 0.4%
70% 200 300.0 1.23 2.0 0.961 235 0.4%
60% 200 300.0 1.13 2.0 0.959 218 0.4%
50% 200 300.0 1.06 2.0 0.956 202 0.5%
40% 200 300.0 0.995 1.0 0.953 190 0.3%
30% 200 300.0 0.940 1.0 0.950 179 0.3%
20% 200 300.0 0.888 1.0 0.945 168 0.3%
10% 200 300.0 0.829 1.0 0.938 156 0.4%
Active Idle 200 300.0 0.676 1.0 0.915 124 0.4%

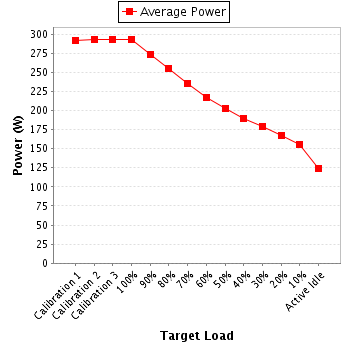

Power details for pwr1
