SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/RS210 (AL) | SPECpower_ssj2008 = 2,229 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jul 9, 2011 |
| Hardware Availability: | May-2011 | Software Availability: | Jun-2010 | Publication: | Aug 10, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

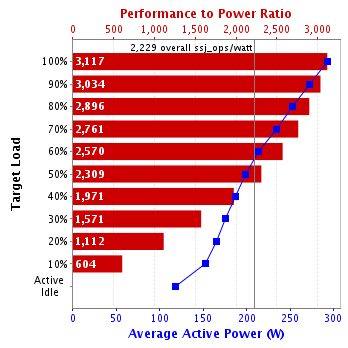

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 913,110 | 293 | 3,117 |
| 90% | 90.1% | 826,928 | 273 | 3,034 |
| 80% | 79.9% | 733,313 | 253 | 2,896 |
| 70% | 70.4% | 646,192 | 234 | 2,761 |
| 60% | 59.9% | 549,653 | 214 | 2,570 |
| 50% | 49.9% | 458,006 | 198 | 2,309 |
| 40% | 40.2% | 368,797 | 187 | 1,971 |
| 30% | 30.2% | 276,756 | 176 | 1,571 |
| 20% | 20.0% | 183,907 | 165 | 1,112 |
| 10% | 10.1% | 92,318 | 153 | 604 |
| Active Idle | 0 | 118 | 0 | |
| ∑ssj_ops / ∑power = | 2,229 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS210 (AL) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | Six Core, 3.06GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 3066 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 48 |
| # and size of DIMM: | 6 x 8192 MB |
| Memory Details: | 8GB 2Rx4 PC3L-10600R ECC CL9; slots DIMM_#02,#04.#06,#08,#10 and DIMM_#12 populated |
| Power Supply Quantity and Rating (W): | 1 x 770 |
| Power Supply Details: | DELTA DPS-770CB (Hitachi P/N:GQ-BP2341) |
| Disk Drive: | 1 x 64GB SSD SATA (Hitachi P/N:GQ-UH70647G) |
| Disk Controller: | Diskarray Controller Board |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82576EB Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1500m -Xmx1500m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start/affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000.C00000] |
| JVM Instances: | 12 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 7TTSHE-F11 |
| Management Firmware Version: | 08.40 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110 (AH) |
| CPU Description: | Intel Pentium E5200 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_17-b04) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2011-06-52513 |
| Date of Calibration: | 28-Jun-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 293 | 23.4 |
| 90% | 273 | 23.4 |
| 80% | 253 | 23.4 |
| 70% | 234 | 23.3 |
| 60% | 214 | 23.2 |
| 50% | 198 | 23.2 |
| 40% | 187 | 23.2 |
| 30% | 176 | 23.2 |
| 20% | 165 | 23.2 |
| 10% | 153 | 23.2 |
| Active Idle | 118 | 23.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 200V / 50 Hz / 1 phase / 2 wires | 23.2 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 902,218 | ||
| Calibration 2 | 918,290 | ||
| Calibration 3 | 917,353 | ||
| ssj_ops@calibrated=917,821 | |||
| 100% | 99.5% | 917,821 | 913,110 |
| 90% | 90.1% | 826,039 | 826,928 |
| 80% | 79.9% | 734,257 | 733,313 |
| 70% | 70.4% | 642,475 | 646,192 |
| 60% | 59.9% | 550,693 | 549,653 |
| 50% | 49.9% | 458,911 | 458,006 |
| 40% | 40.2% | 367,129 | 368,797 |
| 30% | 30.2% | 275,346 | 276,756 |
| 20% | 20.0% | 183,564 | 183,907 |
| 10% | 10.1% | 91,782 | 92,318 |
| Active Idle | 0 | 0 | |
