Fujitsu PRIMERGY RX100 S7 (Intel Xeon E3-1260L) SPECpower_ssj2008 = 4,323 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: May 31, 2011
Hardware Availability: Jun-2011 Software Availability: Apr-2011 Publication: Jun 16, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 57.1 21.4
Calibration 2 57.3 21.4
Calibration 3 57.3 21.5
100% 57.2 21.6
90% 53.8 21.7
80% 48.3 21.7
70% 44.3 21.8
60% 39.7 21.8
50% 36.4 21.8
40% 33.3 21.9
30% 30.1 21.9
20% 26.7 21.9
10% 22.7 21.9
Active Idle 17.8 21.9

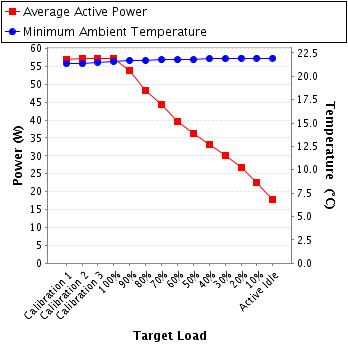

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11770806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10088331
Date of Calibration: 03-Aug-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 250.0 0.310 0.3 0.810 57.1 0.1%
Calibration 2 227 250.0 0.311 0.3 0.811 57.3 0.1%
Calibration 3 227 250.0 0.311 0.3 0.810 57.3 0.1%
100% 227 250.0 0.311 0.3 0.810 57.2 0.1%
90% 228 250.0 0.299 0.3 0.790 53.8 0.1%
80% 228 250.0 0.279 0.3 0.760 48.3 0.1%
70% 228 250.0 0.265 0.3 0.735 44.3 0.1%
60% 228 250.0 0.250 0.3 0.698 39.7 0.1%
50% 227 250.0 0.239 0.3 0.670 36.4 0.1%
40% 227 250.0 0.228 0.3 0.642 33.3 0.1%
30% 227 250.0 0.217 0.3 0.611 30.1 0.1%
20% 227 250.0 0.205 0.3 0.572 26.7 0.2%
10% 227 250.0 0.192 0.3 0.521 22.7 0.2%
Active Idle 227 250.0 0.175 0.3 0.447 17.8 0.2%
Power details for pwr1
